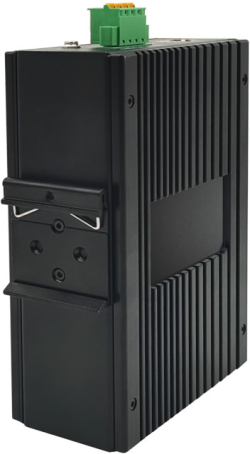

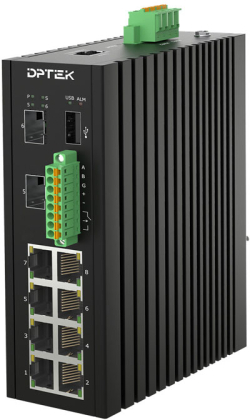

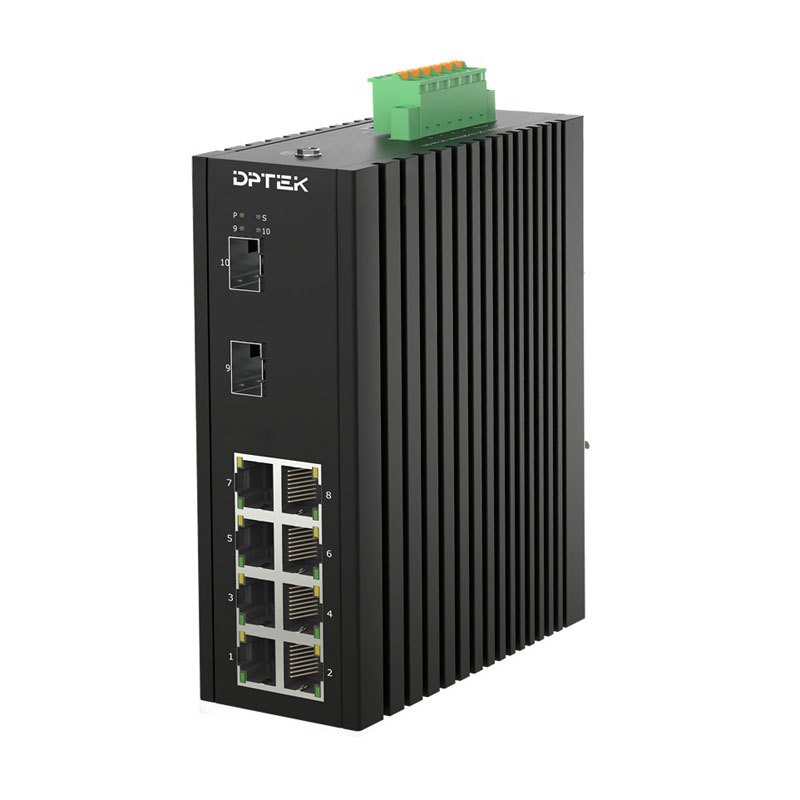

8x10-100-1000Base-T + 2x1G-2.5GBase-X SFP управляем индустриален суич

8x10-100-1000Base-T + 2x1G-2.5GBase-X SFP управляем индустриален суич

• 8x10/100/1000Base-T RJ45 ports
• 2x1000/2500Base-X SFP slots
• Redundant power 12-58V input with polarity reverse/over-voltage/over-current protection
• Support USB one key configuration and upgrading(optional)
• Support DI/DO/RS485(optional)
• Support G.8032 ERPS protocol, recovery time ≤20ms
  Support 6KV surge protection and ESD: Air-15kV, Contact-8kV Protection
• IP40 fan-less and Din-rail hardware design
• Operation temperature: -40°C ~ +75°C

Supported Layer 2 management function:

• VLAN/VLAN Classification/QinQ/STP, RSTP,
  MSTP/Port Mirroring/DHCP/Multicast/ACL/IGMP/QoS/LLDP/802.1X/Dying Gasp/SFP
• DDM/IPV6 management/Web/SNMP/Telnet/TFTP/Web upgrading

Layer 3 features:

• Support IPv4/IPv6 static routing
• DHCP server
