Медиа конвертор по едно влакно 20 км 1550 nm, 100 Mb

Медиа конвертор по едно влакно 20 км 1550 nm, 100 Mb

The DK-MC0135 series media converter adopts store and forward, no fan, low power consumption design, with the advantages of convenient use, small size and simple maintenance. Product design -20°C ~ +70°C wide range of operating temperature, stable and reliable performance, can be widely used in a variety of broadband data transmission fields.

Main Features
- Input voltage: DC5V
- Operating temperature: -20°C to +70°C
- Cooling mode: no fan design
- Forwarding mode: store and forward

Provider Mode Ports
Fixed port: 1*100 Base-X, 1*10/100 Base-T

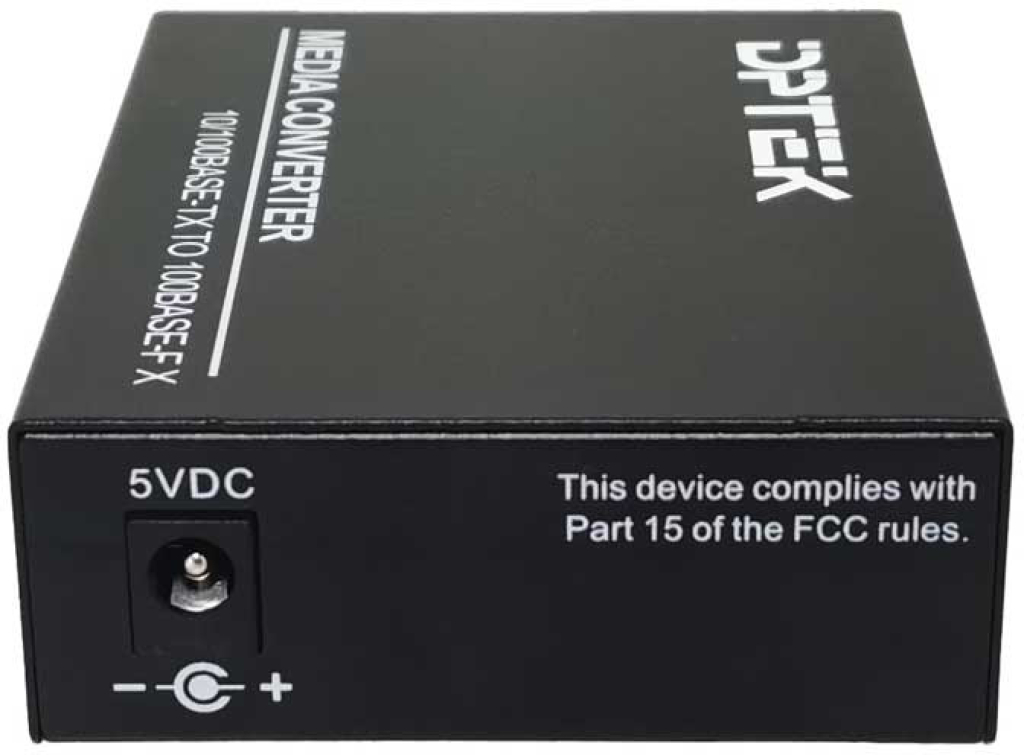

Power interface: DC port

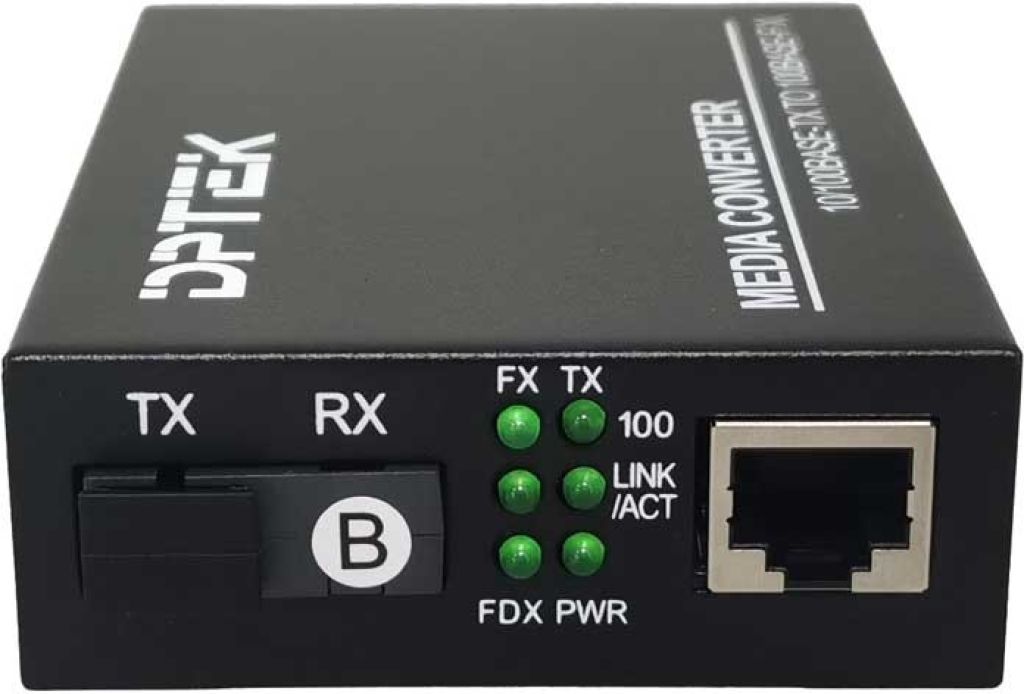

LED Indicators: PWR, Link/ACT LED

Cable type&Transmission distance
Twisted-pair: 0-100m （Cat. 5e, Cat. 6）
Single mode optical fiber: 20 km

Electrical Specifications
Input voltage: DC5V
Total Power consumption: Total power<4W

Environment
