2*1G-2.5G SFP + 8*10-100-1000Base-T Layer 2+ Управляем суич

2*1G-2.5G SFP + 8*10-100-1000Base-T Layer 2+ Управляем суич

Features

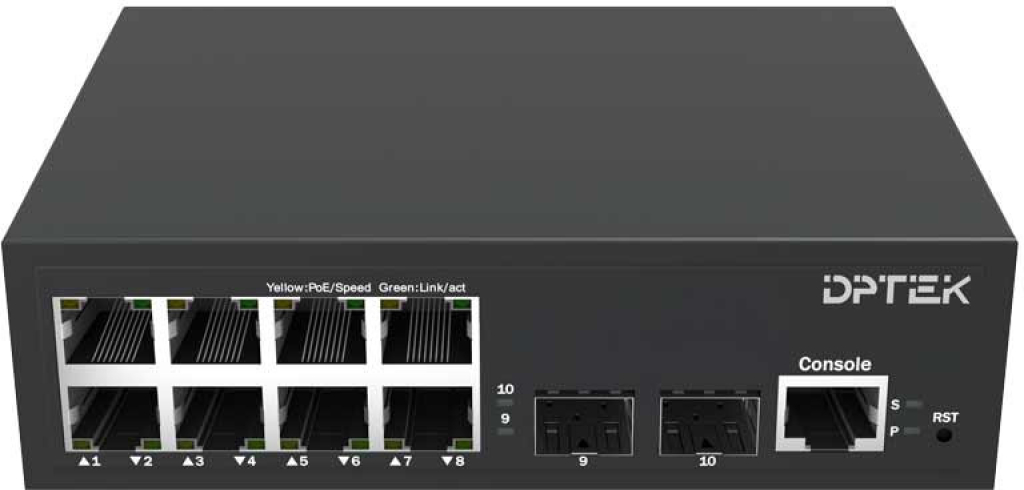

➢   2*1G/2.5G SFP slots uplink, 8*10/100/1000BASE-T ports downlink, 1*RJ45 console interface for switch basic management and setup

➢  Port aggregation: Supports GE ports, 2.5GE port aggregation, static and dynamic aggregation

➢  VLAN: Supports access, truck, hybrid mode and VLAN classification, including the Mac based VLAN, IP based VLAN and protocol based VLAN

➢  QinQ: Supports port-based, VLAN-based and flow-based QinQ

➢  Port Mirroring: Many to one port mirroring

➢  Layer 2 ring network protocol: Supports STP, RSTP, MSTP, G.8032 ERPS protocol, single ring, sub ring

➢  Multicast: IGMP snooping

➢  QoS: QoS class, remarking, Supports SP, WRR queue scheduling, Ingress/Engress port-based rate-limit and policy-based QoS

➢  Security: Support Dot1x, port authentication, mac authentication, RADIUS service; Support port-security, ip source guard, IP/Port/MAC binding, arp-check and ARP packet filtering for illegal users and port isolation

➢  Management: Supports LLDP, user management and login authentication; SNMPV1/V2C/V3; web management, HTTP1.1, HTTPS; Syslog and alarm grading; RMON (Remote Monitoring) alarm, event and history record; NTP, temperature monitoring; Ping, Tracert and optical transceiver DDM function; Supports TFTP Client, Telnet Server, SSH Server and IPv6 Management

➢  Firmware update, configure backup/restore through Web GUI, FTP and TFTP

RAM and FLASH：

1*256MB DDR3 RAM, 1*512M NAND FLASH, 1*4MB SPI FLASH
