| Категория: | Комутатори / Суичове |
| Производител: | |
| Модел: | DK2210M-24T4S-S |
| Брой портове: | 28 бр. |
| PoE портове: | 0 бр. |
| PoE Бюджет: | 0 W |
| 1000 Mbps портове: | 28 бр. |
| SFP/SFP+/XFP портове: | 4 бр. |
| 10G портове: | 0 бр. |
| PoE IN (входящ): | НЕ |
| PoE 802.3af (15.4W): | НЕ |
| PoE+ 802.3at (25.5W): | НЕ |
| Hi-PoE: | НЕ |
| Монтаж в шкаф 19"/10": | ДА |
| Дълбочина (мм): | 180 |
| Гаранция: | 24 месеца |
Наличност:ДА
На склад в: София
342.90 ЛВ
На склад в: София
342.90 ЛВ

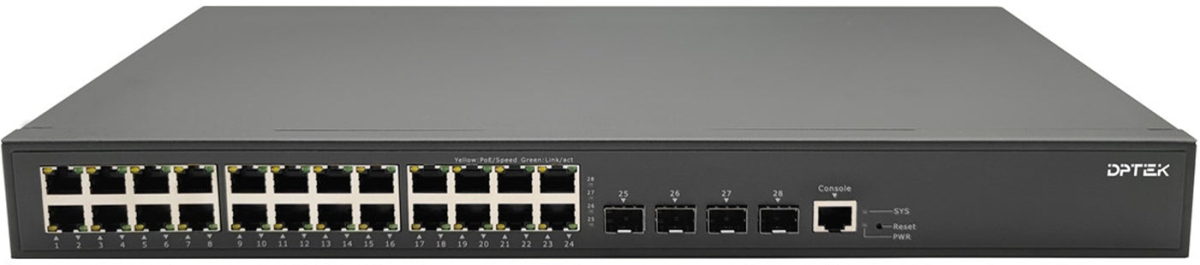

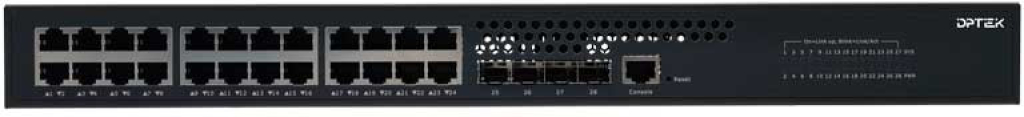

DPTEK DK2210M-24T4S-S, 4х 1G-2.5G SFP + 24х 10-100-1000M RJ45,
| Ethernet: |
|
| Management port: | 1х RJ45 Console port (115200,8,N,1) |
| Standard: |
|
| LED indicators: | PWR (Power indicator) Off: the device is power off or failed On: the device power on is normal SYS (System status indicator) Blinking: device initialization On: device on normal operation 1-24 (Copper ports indicators) Green Off: ports link down On: ports link up Blinking: data on TX/RX 1-24 (Copper speed indicators) Yellow Off: ports on 10/100M On: ports on 1000M 25-28 (Fiber ports indicators) Green Off: ports link down On: ports link up Blinking: data on TX/RX |
| Power parameter: | Input voltage VAC input: Rated voltage range 100-240V Frequency: 50/60Hz Total power consumption: Full loading ≤24W Over-current protection: Support |
| Layer 2 functions: | Port aggregation: Support GE and 2.5GE aggregation Support static and LACP dynamic aggregation Up to 64 aggregation groups, up to 8 ports per group |
| Port features: | Support IEEE802.3x flow control Support interface counters Support port isolation Port mirroring (One-to-One, Many-to-One) Support loop detection (Port-based; VLAN-based) Support broadcast storm suppression (broadcast; unknown multicast; unknown unicast) |
| Mac-address table management: | Support static and dynamic Mac-address management Support filtering and limiting Mac-addresses based on port and VLAN Support MAC flapping based on port and VLAN |
| VLAN: | Support access, trunk, hybrid modes VLAN classification (Mac Based, IP Based, Protocol Based VLAN) GVRP (Normal, Fixed, Forbidden mode) QinQ (Port-based, VLAN-based, Flow-based QinQ) |
| LLDP: | LLDP (Link Layer Discovery Protocol) |
| Ring network protocol: | Support IEEE802.1D-STP, IEEE802.1W-RSTP, IEEE802.1S-MSTP Support G.8032 ERPS protocol, single ring, sub ring and major ring Recovery time ≤20ms |
| L2 Multicast: | IGMP snooping Support group address |
| Security functions: | ACL (IP Standard ACL, MAC extend ACL, IP extend ACL, IPv6 ACL) QoS (Support QoS Class, SP, WRR, Ingress/Egress port-based rate-limit) Port security (IP source guard, IP Port/MAC binding, ARP-check) |
| Management & maintenance functions: | User management (password protection, user authorization) SNMP (V1/V2C/V3), Web Management (HTTP V1.1/HTTPS) CLI management (Console/Telnet) RMON (Remote Monitoring alarm) Firmware upgrade Fault detection (Ping/Traceroute) Cable detection NTP (Network Time Protocol) Syslog/Debug (Syslog to 3 servers) Configuration import/export (FTP/TFTP) Dual partition management |
| Application protocol functions: | DHCP Snooping (trust port, remote-id/circuit-id config, option-82) Support DHCP client/server Support Telnet/SSH/TACACS/Sflow/TFTP |
| Layer 3 functions: | ARP (table aging), DHCP server, IPv4/IPv6 static routing |
| Switching features: | Switching capacity: 68Gbps Packet forwarding rate: 101Mpps MAC address table: 16K VLAN: 4K Buffer: 12Mbit Forwarding delay: <5us Jumbo Frame: Support 10Kbytes MDX/MIDX: Support Watchdog: Support |
| Mechanical structure: | Installation: Desktop; Rack-mount Dimension: 440*180*45mm Weight: 2.77kg |
| Operating environment: | Temperature: 0℃-50℃ Humidity: Operation: 10%-90%RH; Storage: 5%-95%RH |
| Certification: | CE/RoHS/FCC |
| MTBF: | ＞100,000 hours |
