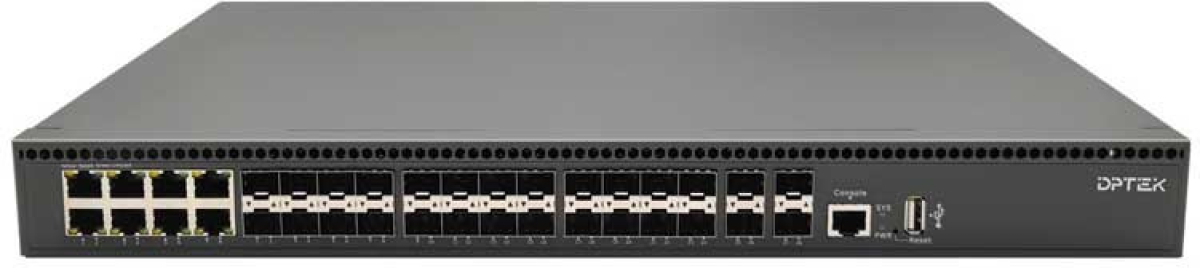

Комутатор/Суич DPTEK DK2210M-16S8GC4X, 16x 100/1000, 8x COMBO SFP, 4x 10GBase-X SFP+, 128Gbps
Продукт № 421935
|
| Категория: |
Комутатори / Суичове |
| Производител: | |
| Модел: | DK2210M-16S8GC4X |
| Брой портове: | 28 бр. |
| PoE портове: | 0 бр. |
| PoE Бюджет: | 0 W |
| 1000 Mbps портове: | 16 бр. |
| SFP/SFP+/XFP портове: | 4 бр. |
| 10G портове: | 4 бр. |
| PoE IN (входящ): | НЕ |
| PoE 802.3af (15.4W): | НЕ |
| PoE+ 802.3at (25.5W): | НЕ |
| Hi-PoE: | НЕ |
| Монтаж в шкаф 19"/10": | ДА |
| Дълбочина (мм): | 245 |
| Гаранция: | 24 месеца |
|
|
DPTEK DK2210M-16S8GC4X, 16x 100/1000, 8x COMBO SFP, 4x 10GBase-X SFP+, 128Gbps
| Interface: | - 1G/2.5G/10G Fiber ports
- 100/1000M Fiber ports
- Gigabit Combo
- 4x
- 16x
- 8x
|
| Ethernet: | - 16x 100/1000Base-X SFP
- 8x COMBO SFP/RJ45
- 4x 1G/2.5G/10GBase-X SFP+
|
| Management port: | - 1x RJ45 Console port (115200,8,N,1)
- 1x USB 2.0 for configuration and firmware update
|
| Standard: | - IEEE 802.3 10Base-T Ethernet
- IEEE 802.3u 100Base-TX Ethernet
- IEEE 802.3ab 1000Base-T Ethernet
- IEEE 802.3z 1000Base-X Ethernet
- IEEE 802.3x Flow Control and Back Pressure
- IEEE 802.1D Spanning Tree Protocol
- IEEE 802.1w Rapid Spanning Tree Protocol
- IEEE 802.1Q VLAN
- ITU-T G.8032 ERPS
- IEEE 802.1X Port Authentication Network Control
- IEEE 802.1ab LLDP
- IEEE 802.3ad LACP
|
| LED Indicators: | - PWR (Power indicator):
- Off: The device is power off or failed
- On: The device power on is normal
- SYS (System status indicator):
- Blinking: Device initialization
- On: Device on normal operation
- USB (USB status indicator):
- Off: USB flash drive not inserted or not detected
- On: USB flash drive is detected
- Blinking: Reading/writing data from USB flash drive
- 1-8 (Copper ports indicators) Green:
- Off: Ports link down
- On: Ports link up
- Blinking: Data on TX/RX
- 1-8 (Copper speed indicators) Yellow:
- Off: Ports on 10/100M
- On: Ports on 1000M
- 1-8 (Fiber ports indicators) Green:
- Off: Ports link down
- On: Ports link up
- Blinking: Data on TX/RX
- 9-28 (Fiber ports indicators) Green:
- Off: Ports link down
- On: Ports link up
- Blinking: Data on TX/RX
|
| Power parameter: | - Input voltage: AC 100-240V
- Total power consumption: ≤ 40W
- Over-current protection: Support
|
| Layer 2 functions: | - Support GE port aggregation
- Support 2.5GE aggregation
- Support 10 GE aggregation
- Support static and LACP dynamic aggregation
- Up to 64 aggregation groups, up to 8 ports per group
|
| Switching capacity: | 128 Gbps |
| Packet forwarding rate: | 190.4 Mpps |
| MAC address table: | 16K |
| VLAN: | 4K |
| Buffer: | 12 Mbit |
| Forwarding delay: | < 5 μs |
| Jumbo Frame: | Supports 10 KB |
| Mechanical structure: | - Installation method: Desktop; Rack-mount
- Dimensions: 440mm x 245mm x 44mm
- Weight: 3.65 kg
|
| Operating environment: | - Operating temperature: 0°C to +50°C
- Storage/transportation temperature: -10°C to +70°C
- Relative humidity: 10%-90% RH
- Storage humidity: 5%-95% RH
|
| Certification: | CE/RoHS/FCC |
| MTBF: | > 100,000 hours |
*
