| Категория: | Комутатори / Суичове |
| Производител: | |
| Модел: | C9300-24T-A |
| Брой портове: | 24 бр. |
| PoE портове: | 24 бр. |
| 1000 Mbps портове: | 24 бр. |
| SFP/SFP+/XFP портове: | 0 бр. |
| 10G портове: | 0 бр. |
| PoE IN (входящ): | НЕ |
| PoE 802.3af (15.4W): | ДА |
| PoE+ 802.3at (25.5W): | НЕ |
| Hi-PoE: | НЕ |
| Монтаж в шкаф 19"/10": | ДА |
| Дълбочина (мм): | 445 |
| Гаранция: | 24 месеца |
Наличност:Очаквана доставка. На път!
Продуктът не е на склад!
8019.00 ЛВ
Продуктът не е на склад!
8019.00 ЛВ
ОБАДЕТЕ СЕ ЗА НАЛИЧНОСТ

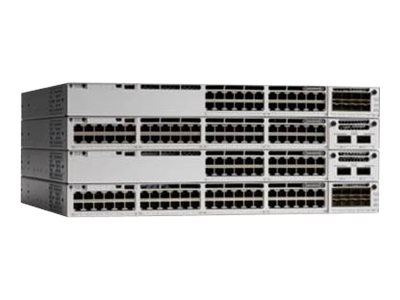

CISCO Catalyst 9300 24-port data only Network Advantage
| General | |
| Device Type: | Switch - 24 ports - L3 - Managed - stackable |
| Enclosure Type: | Rack-mountable 1U |
| Subtype: | Gigabit Ethernet |
| Ports: | 24 x 10/100/1000 |
| Performance: | Switching capacity: 128 Gbps Stacking bandwidth: 480 Gbps Forwarding rate: 154.76 Mpps |
| Capacity: | IPv4 routing table entries: 32000 IPv6 routing table entries: 16000 Flexible NetFlow entries: 64000 VLAN IDs: 4000 Switched virtual interfaces (SVIs): 2000 |
| MAC Address Table Size: | 32000 entries |
| Jumbo Frame Support: | 9198 bytes |
| Routing Protocol: | OSPF, IS-IS, RIP-1, RIP-2, BGP, EIGRP, HSRP, IGMP, VRRP, PIM-SM, OSPFv3, PIM-SSM, MSDP, policy-based routing (PBR), RIPng |
| Remote Management Protocol: | SNMP 1, RMON 1, RMON 2, SNMP, SNMP 3, SNMP 2c, CLI, NETCONF, RESTCONF |
| Encryption Algorithm: | 128-bit AES |
| Features: | DHCP support, trunking, Syslog support, full duplex mode, Stateful switchover (SSO), Class-Based Weighted Fair Queuing (CBWFQ), Weighted Random Early Detection (WRED), Spanning Tree Protocol (STP) support, Access Control List (ACL) support, Quality of Service (QoS), Non-Stop Routing (NSR), Remote Switch Port Analyzer (RSPAN), Management Information Base (MIB), Cisco StackWise-480 technology, Cisco StackPower technology, Flexible NetFlow (FNF), Multicast Source Discovery Protocol (MSDP), 802.1x authentication, 16MB packet buffer, FTP client, MACsec support, 3 fans, Control plane protection (CoPP), Virtual Extensible LAN (VXLAN), Application Visibility and Control (AVC), Source-Specific Multicast (SSM), integrated Wireshark, VLAN Double Tagging (Q-in-Q), Ethernet over MPLS (EoMPLS), Hierarchical Virtual Private LAN Service (H-VPLS), Private VLAN, Layer 3 VPN (L3VPN) support, Encapsulated Remote SPAN (ERSPAN), Security Group Tag (SGT) caching, Security Group Access Control List (SGACL), IT Service Management (ITSM) integration, third-party IP Address Management (IPAM) integration |
| Compliant Standards: | IEEE 802.3, IEEE 802.3u, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.1s |
| RAM: | 8 GB |
| Flash Memory: | 16 GB |
| Status Indicators: | Status |
| Expansion / Connectivity | |
| Interfaces: | 48 x 1000Base-T RJ-45 1 x USB 2.0 |
| Expansion Slots: | 1 (total) / 1 (free) x Expansion Slot |
| Power | |
| Power Device: | Internal power supply - hot-plug |
| Installed Qty: | 1 (installed) / 2 (max) |
| Power Redundancy: | Optional |
| Power Provided: | 350 Watt |
| Voltage Required: | AC 120/230 V (50 - 60 Hz) |
| Miscellaneous | |
| MTBF: | 314,790 hours |
| Compliant Standards: | CISPR 22 Class A, CISPR 24, EN 61000-3-2, EN 61000-3-3, EN55024, EN50082-1, EN 61000-6-1, EN 61000-4-4, EN 61000-4-2, EN 61000-4-3, EN 61000-4-6, CCC, ICES-003 Class A, EN 61000-4-5, UL 60950-1, IEC 60950-1, EN 60950-1, RoHS, AS/NZS 3548 Class A, BSMI Class A, VCCI Class A, EN 55022 Class A, FCC CFR47 Part 15 A, EN 300 386, TVCN 7317, VCCI V-3/2009 Class A, CAN/CSA-C22.2 No. 60950-1 |
| Software / System Requirements | |
| OS Required: | Cisco IOS Universal |
| Dimensions & Weight | |
| Width: | 44.5 cm |
| Depth: | 44.5 cm |
| Height: | 4.4 cm |
| Weight: | 7.27 kg |
