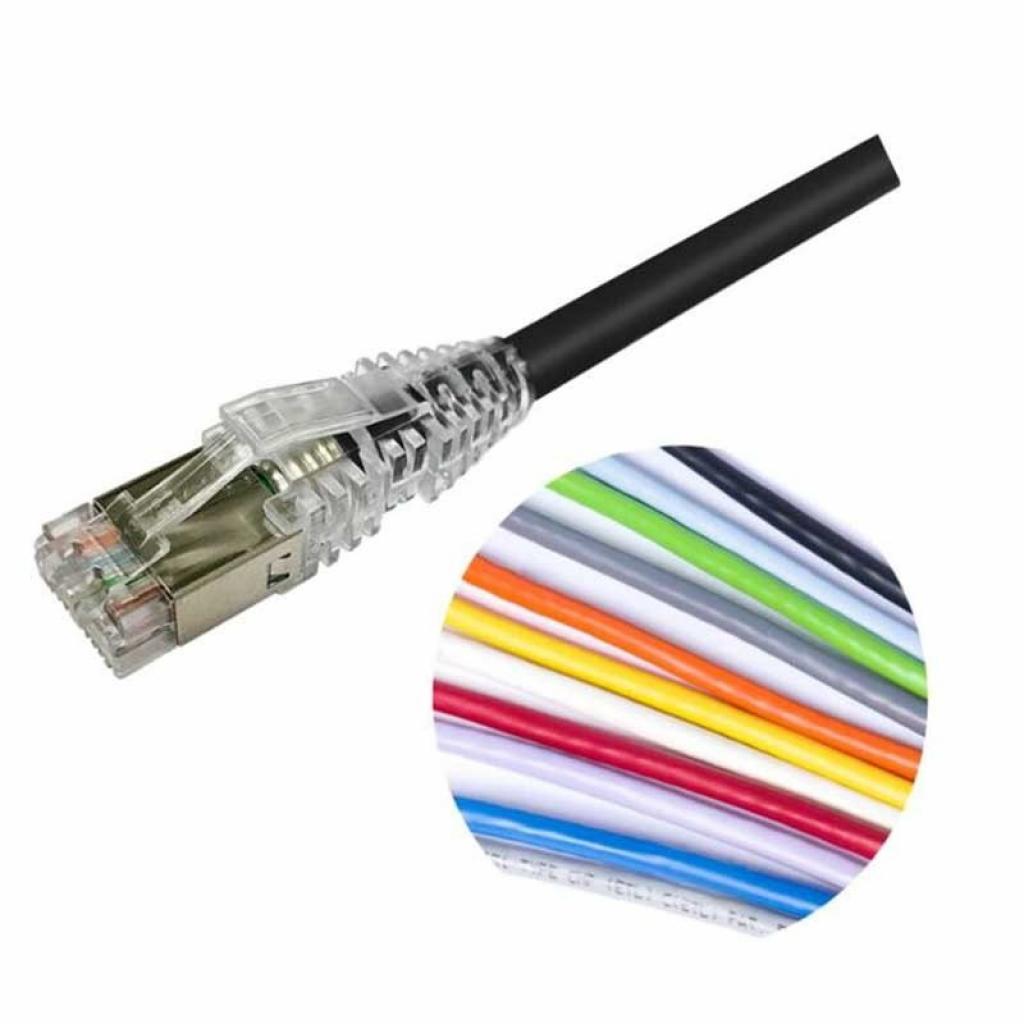

Медна пач корда NETCONNECT Patch cord, Cat.6A S/FTP, 3 m

NETCONNECT Patch cord, Cat.6A S/FTP, 3 m

• High-performance patch cords exceeding industry standards supporting NETCONNECT channel specifications
• Standardized transparent, slim-line boots provides consistent patch cord appearance and supports highest density applications
• Colored clips are available to fit the transparent boot, eliminating the need of multiple colors for matching every jacket color
• Colored pull latch tabs are available for easier plug release handling from the modular jack

General Specifications

• Category: 6A
• Cable Type: S/FTP (shielded)
• Conductor Type: Stranded
• Interface, Connector A: RJ45 plug
• Interface Feature, connector A: Standard
• Interface, Connector B: RJ45 plug
• Interface Feature, connector B: Standard
• Jacket Color: White | Black | Blue | Green | Orange | Pink | Purple | Red | Slate | Violet | Yellow
• Pairs, quantity: 4
• Transmission Standards: IEEE 802.3bt Type 4
• Wiring: T568B

Dimensions

• Cable Assembly Length Range (m): 1 – 30
• Cable Assembly Length Range (ft): 1 – 100
• Cable Assembly Length Range (cm): 15 – 999
• Cable Assembly Length Range (in): 6 – 999
• Diameter Over Jacket: 5.84 mm | 0.230 in
• Compatible Conductor Gauge, stranded: 26 AWG

Electrical Specifications

• Safety Voltage Rating: 300 V

Mechanical Specifications

• Plug Insertion Life, minimum: 750 times

Environmental Specifications

• Operating Temperature: -20 °C to +60 °C (-4 °F to +140 °F)
• Relative Humidity: Up to 93%, non-condensing
• Environmental Space: Low Smoke Zero Halogen (LSZH)
• Safety Standard: UL 1863

Packaging and Weights

• Packaging quantity: 1

Regulatory Compliance/Certifications

• RCM: Compliant to electrical safety & telecommunications requirements
