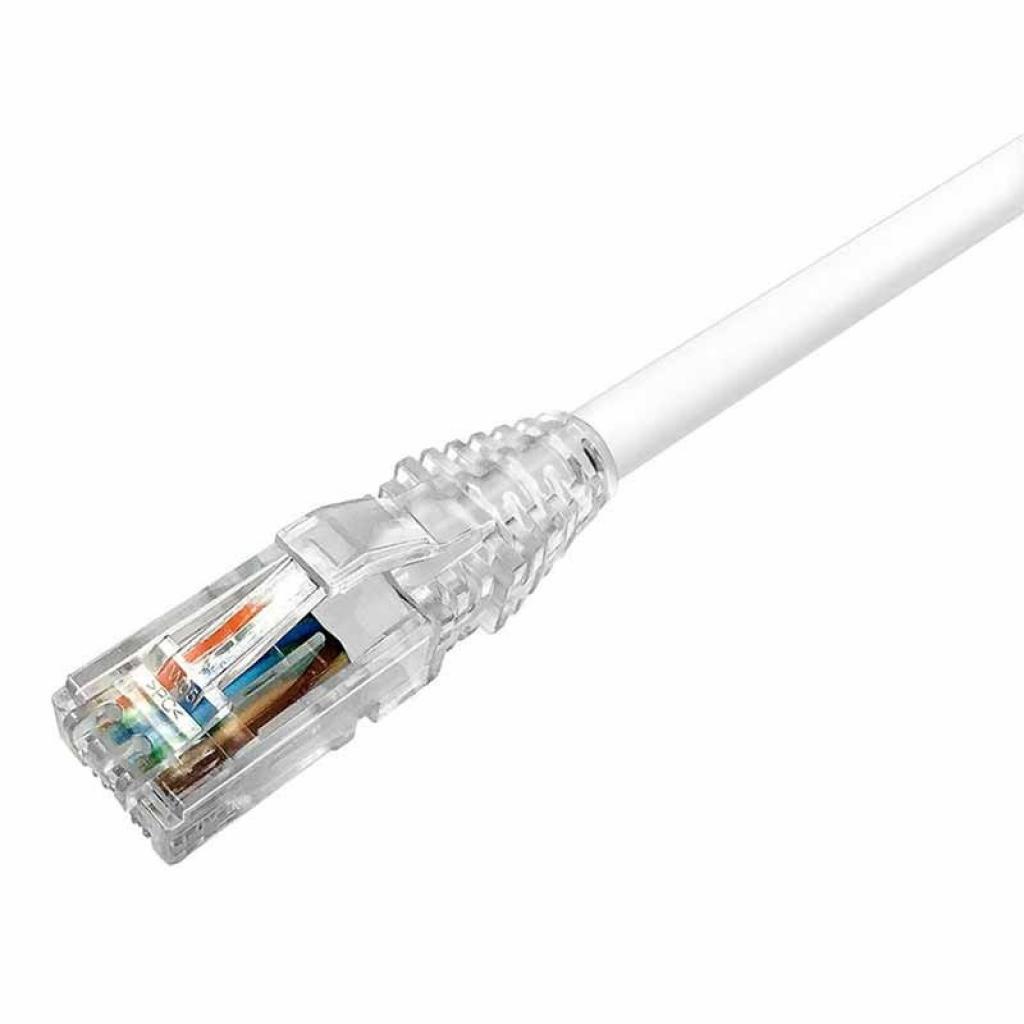

Медна пач корда NETCONNECT® Patch cord, Cat.5e UTP LSZH, white, 2м.

NETCONNECT® Patch cord, Cat.5e UTP LSZH, white, 2м.

• Category 5e U/UTP Patch cord
• RJ45 to RJ45
• 4-pair
• LSZH

Product Classification

• Regional Availability: EMEA
• Portfolio: CommScope®
• Product Type: Twisted pair patch cord
• Product Series: CO
• Ordering Note: Cords > 1 m are authorized for use in channels and are an effective standalone method used to connect active devices

General Specifications

• ANSI/TIA Category: 5e
• Cable Type: U/UTP (unshielded)
• Conductor Type: Stranded
• Interface, Connector A: RJ45 plug
• Interface Feature, connector A: Standard
• Interface, Connector B: RJ45 plug
• Interface Feature, connector B: Standard
• Pairs, quantity: 4
• Transmission Standards: IEC 61156-6 | IEEE 802.3bt Type 4
• Wiring: T568B

Dimensions

• Cable Assembly Length Range (m): 1 – 30
• Cable Assembly Length Range (ft): 1 – 100
• Cable Assembly Length Range (cm): 15 – 999
• Cable Assembly Length Range (in): 6 – 999
• Diameter Over Jacket: 5.97 mm | 0.235 in

Electrical Specifications

• dc Resistance, maximum: 0.3 ohm
• Safety Voltage Rating: 300 V

Material Specifications

• Contact Plating Material: Gold in remoting area | Nickel underplating
• Material Type: Phosphor Bronze | Polycarbonate

Mechanical Specifications

• Plug Insertion Life, minimum: 750 times
• Plug Retention Force, minimum: 133 N | 29.9 lbf

Environmental Specifications

• Operating Temperature: -10 °C to +60 °C (+14 °F to +140 °F)
• Environmental Space: Low Smoke Zero Halogen (LSZH)
• Flammability Rating: IEC 60332-3-22 | IEC 61034-2
• Safety Standard: ETL | cETL

Packaging and Weights

• Packaging quantity: 1

Regulatory Compliance/Certifications

• ISO 9001:2015: Designed, manufactured and/or distributed under this quality management system
