| Категория: | Инструменти и тестери |
| Производител: | |
| Модел: | ST800K-A |
На склад в: София
134.90 ЛВ
Power Meter от -50 до +26 dBm FC-ST-SC конектори
Power Meter -50/+26 dBm, FC-ST-SC, 4xAA battery, wavelenghts (850, 1300, 1310, 1490, 1550, 1625 nm)

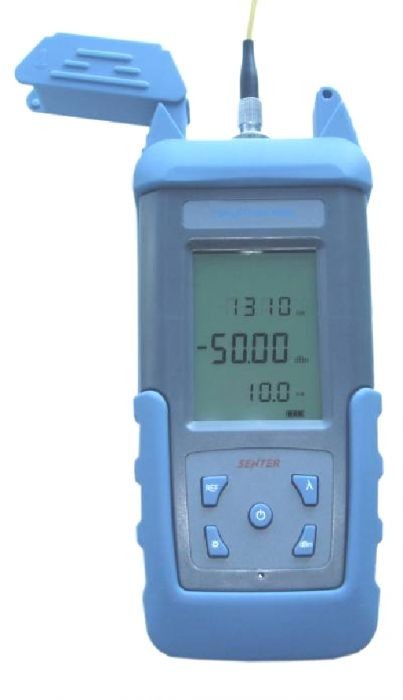

With a wide range of functions, ST800K optical power meter is a powerful tool for use in fiber-optic installation and maintenance. Its rugged, durable construction makes it the perfect choice for a wide range of field applications.
ST800K Optical Power Meter can test optical power within the range of 800~1700nm wave length. There are 850nm, 1300nm, 1310nm, 1490nm, 1550nm, 1625nm, six kinds of wavelength calibration points. It can be used for linearity and non-linearity test and it can display both direct and relative test of optical power.
This meter can be widely used in the test of LAN, WAN, metropolitan network, CATV net or long-distance fiber net and other situations.
|
Wavelength range (nm)
|
800~1700
|
|
Detector type
|
InGaAs
|
|
Standard wavelength(nm)
|
850, 1300, 1310, 1490, 1550, 1625
|
|
Power testing range (dBm)
|
-50~+26 or -70～+3
|
|
Uncertainty
|
±5%
|
|
Resolution
|
Linearity: 0.1%, Logarithm: 0.01dBm
|
|
General specifications
|
|
|
Connectors
|
FC, ST, SC or FC, ST, SC, LC
|
|
Working temperature (℃)
|
-10~+50
|
|
Storage temperature (℃)
|
-30~+60
|
|
Weight (g)
|
430 (without batteries)
|
|
Dimension (mm)
|
200×90×43
|
|
Battery
|
4 pcs AA batteries (lithium battery is optional)
|
|
Batteryworking duration(h)
|
No less than 150 (according to battery volume)
|
|
Auto power off time (min)
|
10
|
ST800K Optical Power Meter Series of Products
|
Model No.
|
Power test range（dBm）
|
Adapter interface
|
|
ST800K-A
|
-50～+26
|
FC,ST,SC
|
|
ST800K-B
|
-50～+26
|
FC,ST,SC,LC
|
|
ST800K-C
|
-70～+3
|
FC,ST,SC
|
|
ST800K-D
|
-70～+3
|
FC,ST,SC,LC
|
