| Категория: | Инструменти и тестери |
| Производител: | |

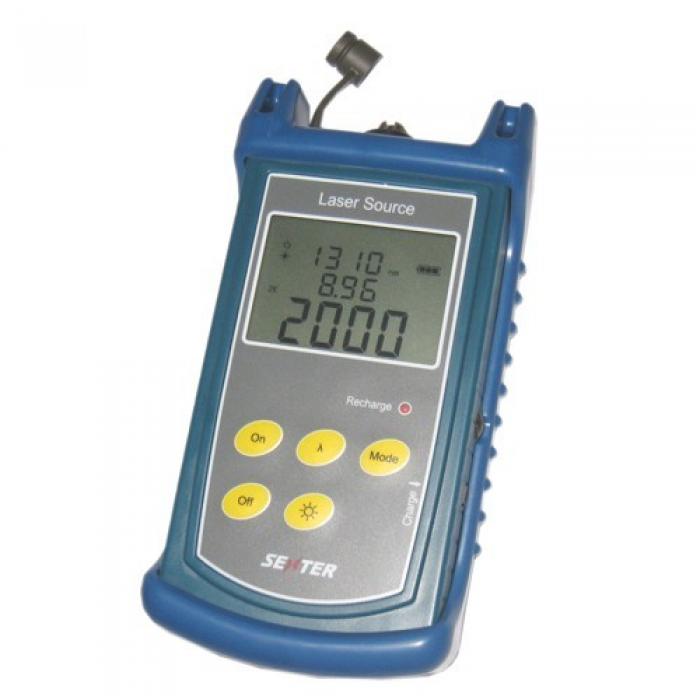

| Модел: | ST815 |
На склад в: София
212.90 ЛВ
Key Features
◆Continuous light, modulated light output
◆Output double wavelength through one port
◆High stabilization
◆Auto 10minutes shut off function
◆Support FC、SC、ST adapter
◆Big display LCD,
◆LED backlight switch on/off
◆Auto close back light in 8 seconds without operation
◆Li-ion rechargeable battery or 9V AAA battery
◆Battery voltage display
◆Low voltage checking and shut off to save energy
◆Identify the wavelength automatically (Please notice: use the same Brand optical power meter)
Technical Specifications
Emitter type: | Fabry_Perot LD/DFB-LD |
Output wavelength switch (nm): | Wavelength: ST815 Wavelength: 1310±20nm, 1550±20nm ST815B Wavelength: 1310±20nm, 1550±20nm, 1490±20nm ST815C Wavelength: 1310±20nm, 1550±20nm, 850±20nm, 1300±20nm ST815D Wavelength: 1310±20nm, 1550±20nm, 1625±20nm ST815E Wavelength: 1310±20nm, 1550±20nm, 650±20nm |
Spectral width (nm): | ≤5 |
Output optical power (dBm): | ≥-7(standard) ≥0dBm（customized） |
Optical Output Mode: | CW/270Hz, 1kHz, 2kHz, 330Hz |
Optical Interface: | FC,SC,ST |
Power Stability (dB) (Short time): | ≤±0.05/15min |
Power Stability (dB) (Long time): | ≤±0.1/5h |
General specifications | |
Working temperature (℃): | 0--40 |
Storage temperature (℃): | -10----70 |
Weight (kg): | 0.22 |
Dimension (mm): | 160×76×28 |
Battery: | Rechargeable Li-ion battery or Dry AAA battery |
Batteryworking duration (h): | About 15 hours |
Low voltage warning: | ≤7.2V |
