Продукт No.168472

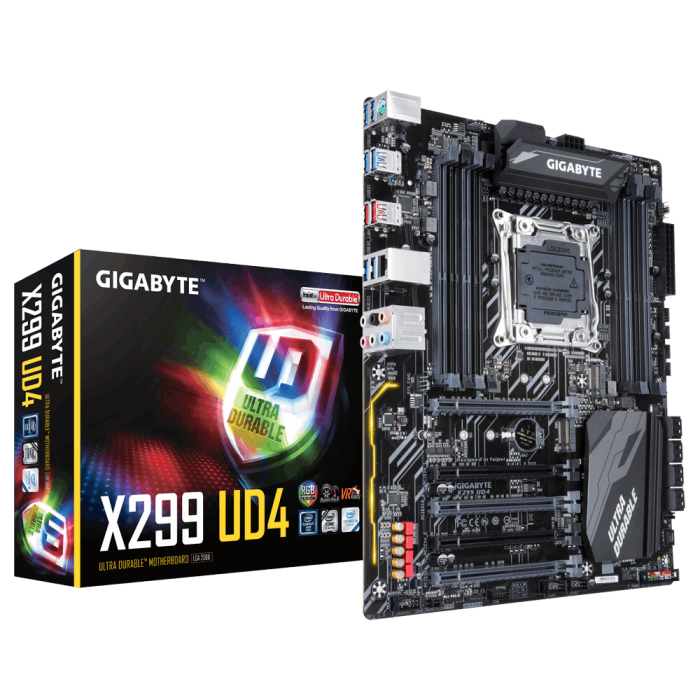

Дънна платка GB X299 UD4 -LGA2066на ниска цена с бърза доставка
изчерпан

Дънна платка GB X299 UD4 -LGA2066

Продукт № 168472
Категория: Дънни платки
Производител:
Поддържана памет:DDR4
Процесорен слот:LGA2066
Наличност:ПРОДУКТЪТ НЕ Е НАЛИЧЕН
531.36 ЛВ

GB X299 UD4 -LGA2066


Socket:2066
Графика:Support for NVIDIA® Quad-GPU SLI™ and 3-Way (with 44-lane CPU) / 2-Way (with 44 & 28-lane CPU) NVIDIA® SLI™ technologies; Support for AMD Quad-GPU CrossFire™ and 3-Way (with 44-lane CPU) / 2-Way AMD CrossFire™ technologies.
CPU's supported:Support for Intel® Core™ X series processors in the LGA2066 package; L3 cache varies with CPU.
Chipset:Intel® X299 Express Chipset
Слотове:
  • 2 x PCI Express x16 slots
  • running at x16 (PCIEX16_1
  • PCIEX16_2); 1 x PCI Express x16 slot
  • running at x8 (PCIEX8); 2 x PCI Express x16 slots
  • running at x4 (PCIEX4_1
  • PCIEX4_2); (All of the PCI Express slots conform to PCI Express 3.0 standard.); * Refer to "1-6 Setting up AMD CrossFire™/NVIDIA® SLI™ Configuration," for the installation notices for the PCI Express x16 slots.
Storage:
  • 1 x M.2 connector (Socket 3
  • M key
  • type 2242/2260/2280 SATA and PCIe x4/x2 SSD support) (M2Q_32G); 1 x M.2 connector (Socket 3
  • M key
  • type 2260/2280/22110 SATA and PCIe x4/x2 SSD support) (M2P_32G); 8 x SATA 6Gb/s connectors; Support for RAID 0
  • RAID 1
  • RAID 5
  • and RAID 10; * Refer to "1-9 Internal Connectors," for the installation notices for the M.2 and SATA connectors. Intel® Optane™ Memory Ready; Intel® VROC ready.
Тип памет:8 x DDR4 DIMM sockets supporting up to 128 GB of system memory. * Support for up to 512 GB of system memory when using Registered DIMMs. * Supported when using a 44-lane or 28-lane CPU (6-core or above); 4 x DDR4 DIMM sockets supporting up to 64 GB of system memory. * Supported when using a 16-lane CPU (4-core); 4 channel memory architecture. * Supported when using a 44-lane or 28-lane CPU (6-core or above); Dual channel memory architecture. Supported when using a 16-lane CPU (4-core). Support for DDR4 4333(O.C.) / 4266(O.C.) / 4133(O.C.) / 4000(O.C.) / 3866(O.C.) / 3800(O.C.) / 3733(O.C.) / 3666(O.C.) / 3600(O.C.) / 3466(O.C.) / 3400(O.C.) / 3333(O.C.) / 3300(O.C.) / 3200(O.C.) / 3000(O.C.) / 2800(O.C.) / 2666(O.C.) / 2400 / 2133 MHz memory modules Support for non-ECC Un-buffered DIMM memory modules; Support for Registered DIMM 1Rx8/2Rx8/1Rx4/2Rx4 memory modules (operate in non-ECC mode); Support for Extreme Memory Profile (XMP) memory modules.
I/O:
  • 1 x PS/2 keyboard/mouse port; 2 x USB 3.1 Gen 2 Type-A ports (red); 6 x USB 3.1 Gen 1 ports; 1 x RJ-45 port; 6 x audio jacks (Center/Subwoofer Speaker Out
  • Rear Speaker Out
  • Side Speaker Out
  • Line In
  • Line Out
  • Mic In);iTE® I/O Controller Chip.
Connectors:1 x 24-pin ATX main power connector; 1 x 8-pin ATX 12V power connector; 1 x CPU fan header; 1 x water cooling CPU fan header; 2 x system fan headers; 1 x 3 Amp fan/water cooling pump header; 1 x digital LED strip header; 1 x digital LED strip power select jumper; 2 x RGB (RGBW) LED strip extension cable headers; 2 x M.2 Socket 3 connectors; 8 x SATA 6Gb/s connectors; 1 x Intel® VROC Upgrade Key header; 1 x front panel header; 1 x front panel audio header; 1 x S/PDIF Out header; 2 x USB 3.1 Gen 1 headers; 2 x USB 2.0/1.1 headers; 1 x Thunderbolt™ add-in card connector; 1 x Trusted Platform Module (TPM) header; 1 x temperature sensor header; 1 x Clear CMOS jumper.
Audio:Realtek® ALC1220 codec; High Definition Audio; 2/4/5.1/7.1-channel; Support for S/PDIF Out.
LAN:Intel® GbE LAN chip (10/100/1000 Mbit)
BIOS:
  • 2 x 128 Mbit flash; Use of licensed AMI UEFI BIOS; Support for DualBIOS™; PnP 1.0a
  • DMI 2.7
  • WfM 2.0
  • SM BIOS 2.7
  • ACPI 5.0.
Form Factor:ATX Form Factor; 30.5cm x 24.4cm
Операционна система:Support for Windows 10 64-bit
Гаранция:36 Месеца
