Продукт No.244477
Дънна платка GB B550M DS3Hна ниска цена с бърза доставка
изчерпан

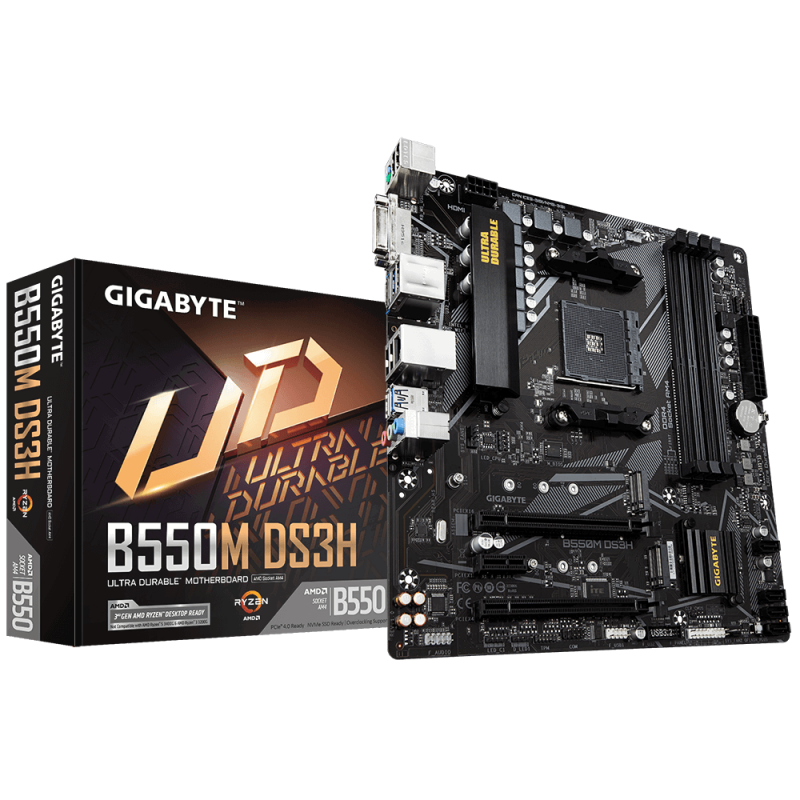

Дънна платка GB B550M DS3H

Продукт № 244477
Категория: Дънни платки
Производител:
Чипсет:AMD B550
Брой RAM слотове:4 бр.
Поддържана памет:DDR4
Процесорен слот:AM4
Гаранция:
36 месеца
Наличност:ПРОДУКТЪТ НЕ Е НАЛИЧЕН

187.90 ЛВ

GB B550M DS3H


Графика:
  • Integrated in the 3rd Generation AMD Ryzen™ with Radeon™ Graphics processors: 1 x DVI-D port
  • supporting a maximum resolution of 1920x1200@60 Hz; * The DVI-D port does not support D-Sub connection by adapter. 1 x HDMI port
  • supporting a maximum resolution of 4096x2160@60 Hz; * Support for HDMI 2.1 version
  • HDCP 2.3
  • and HDR. Maximum shared memory of 16 GB
CPU's supported:
  • AMD Socket AM4
  • support for: 3rd Generation AMD Ryzen™ processors/ 3rd Generation AMD Ryzen™ with Radeon™ Graphics processors
Chipset:AMD B550
Слотове:
  • 1‎ x PCI Express x16 slot (PCIEX16)
  • integrated in the CPU: 3rd Generation AMD Ryzen™ processors support PCIe 4.0 x16 mode; 3rd Generation AMD Ryzen™ with Radeon™ Graphics processors support PCIe 3.0 x16 mode; * For optimum performance
  • if only one PCI Express graphics card is to be installed
  • be sure to install it in the PCIEX16 slot. 1 x PCI Express x16 slot (PCIEX4)
  • integrated in the Chipset: Supporting PCIe 3.0 x4 mode; 1 x PCI Express x1 slot (PCIEX1)
  • integrated in the Chipset: Supporting PCIe 3.0 x1 mode
Storage:
  • 1‎ x M.2 connector (M2A_CPU)
  • integrated in the CPU
  • supporting Socket 3
  • M key
  • type 2242/2260/2280/22110 SSDs: 3rd Generation AMD Ryzen™ processors support SATA and PCIe 4.0 x4/x2 SSDs; 3rd Generation AMD Ryzen™ with Radeon™ Graphics processors support SATA and PCIe 3.0 x4/x2 SSDs; 1 x M.2 connector (M2B_SB)
  • integrated in the Chipset
  • supporting Socket 3
  • M key
  • type 2242/2260/2280 SSDs: Supporting SATA and PCIe 3.0 x2 SSDs; 4 x SATA 6Gb/s connectors
  • integrated in the Chipset: Support for RAID 0
  • RAID 1
  • and RAID 10
Тип памет:4 x DDR4 DIMM sockets supporting up to 128 GB (32 GB single DIMM capacity) of system memory; 3rd Gen AMD Ryzen™ Processors: Support for DDR4 4400(O.C.) / 4000(O.C.) / 3600(O.C.) / 3333(O.C.) /3200/2933/2667/2400/2133 MHz memory modules 3rd Gen AMD Ryzen™ with Radeon™ Graphics processors: Support for DDR4 4733(O.C.) / 4600(O.C.) / 4400(O.C.) / 4000(O.C.) / 3600(O.C.) / 3333(O.C.) /3200/2933/2667/2400/2133 MHz memory modules; Dual channel memory architecture; Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules; Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules; Support for Extreme Memory Profile (XMP) memory module
I/O:1 x PS/2 keyboard/mouse port; 1 x DVI-D port; 1 x HDMI port; 4 x USB 3.2 Gen 1 ports; 4 x USB 2.0/1.1 ports; 1 x RJ-45 port; 3 x audio jacks
Connectors:
  • 1 x 24-pin ATX main power connector; 1 x 8-pin ATX 12V power connector; 1 x CPU fan header; 2 x system fan headers; 2 x addressable LED strip headers; 2 x RGB LED strip headers; 1 x CPU cooler LED strip/RGB LED strip header; 2 x M.2 Socket 3 connectors; 4 x SATA 6Gb/s connectors; 1 x front panel header; 1 x front panel audio header; 1 x USB 3.2 Gen 1 header; 1 x USB 2.0/1.1 header; 1 x Trusted Platform Module (TPM) header (2x6 pin
  • for the GC-TPM2.0_S module only); 1 x serial port header; 1 x Clear CMOS jumper; 1 x Q-Flash Plus button
Audio:Realtek® ALC887 codec; High Definition Audio; 2/4/5.1/7.1-channel
LAN:Realtek® GbE LAN chip (1000 Mbit/100 Mbit)
BIOS:
  • 1 x 256 Mbit flash; Use of licensed AMI UEFI BIOS; PnP 1.0a
  • DMI 2.7
  • WfM 2.0
  • SM BIOS 2.7
  • ACPI 5.0
Form Factor:Micro ATX Form Factor; 24.4cm x 24.4cm
Операционна система:Support for Windows 10 64-bit
Гаранция:36 Месеца
