Вентилатор Fan 40x40x10 EL Bearing (4000 RPM) EC4010LL12EA
- вентилатор 40мм по 10мм, супер тих, 4000 оборота в минута...
Модел: EC4010LL12EA
Гаранция: 6 месеца Тегло: 0.02 кг
:
DC Fan Product
Model Type: EC-4010xxxx Dimension : 40 x 40 x 10 mm
Voltage
5V
12V
24V
V
V
Fan Speed
LL
L
M
H
HH
SH
4000
4500
5000
5500
6000
6500
Certificate
UL
CE
TUV
V
V
V
Bearing Type
Sleeve
1Ball
2Ball
EL
V
V
V
V

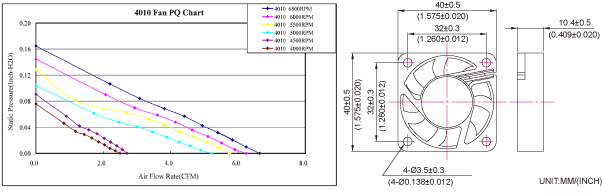

P&Q Curve / Dimensions Drawing
Model Number System
Specifications
Please read cataloge firstly !
Model
Voltage VDC
Current AMP
Input WATTS
Fan Speed RPM
AirFlow CFM
Pressure lnch-H2O
Noise dBA
EC4010SHH05X:
5
:
0.18
:
0.9
:
6000
:
6.24
:
0.15
:
<25
EC4010H05X:
5
:
0.14
:
0.7
:
5500
:
5.75
:
0.13
:
<23
EC4010M05X:
5
:
0.12
:
0.6
:
5000
:
5.22
:
0.1
:
<21
EC4010L05X:
5
:
0.1
:
0.5
:
4500
:
2.71
:
0.09
:
<19
EC4010LL05X:
5
:
0.08
:
0.4
:
4000
:
2.5
:
0.08
:
<17
EC4010TH12X:
12
:
0.12
:
1.44
:
6500
:
6.64
:
0.16
:
<26
EC4010SHH12X:
12
:
0.1
:
1.2
:
6000
:
6.24
:
0.15
:
<25
EC4010H12X:
12
:
0.08
:
0.96
:
5500
:
5.57
:
0.13
:
<23
EC4010M12X:
12
:
0.07
:
0.84
:
5000
:
5.22
:
0.1
:
<21
EC4010L12X:
12
:
0.05
:
0.6
:
4500
:
2.71
:
0.09
:
<19
EC4010LL12X:
12
:
0.04
:
0.48
:
4000
:
2.5
:
0.08
:
<17
E - EL bearing , B - Two ball bearing , C - One ball One sleeve bearing , S - Sleeve bearing
• Material:impeller&Frame:Plastic(UL 94V-0) • Lead Wires: UL 1007 AWG #28 Or Equivalent Red Wire Positive(+),Black Wire Negative(-),Yellow Wire Or Blue Wire Signal(FG) • Function type is optional. • The max air flow and the speed are measured in free air;max air pressure is measured at zero air flow. • Noise is measured in anechoic chamber in free air,one meter from intake side. • All readings are typical values at rated voltage. • Specifications are subject to change without notice. • Additional special function may be added according the requirement of customer.
