Вентилатор Fan 140x140x25 2Ball (900 RPM) EC14025LL12BA
- вентилатор 140x140x25мм, 900 оборота в минута, с два съчмени лагера...
Модел: EC14025LL12BA
Гаранция: 6 месеца Тегло: 0.18 кг
DC Fan Product
Model Type : EC-14025 xxxx Dimension : 140 x 140 x 25 mm
Voltage
5V
12V
24V
V
Fan Speed
SL
LL
L
M
H
600
900
1200
1500
1800
Certificate
UL
CE
TUV
V
V
V
Bearing Type
Sleeve
1Ball
2Ball
EL
V
V
V
V

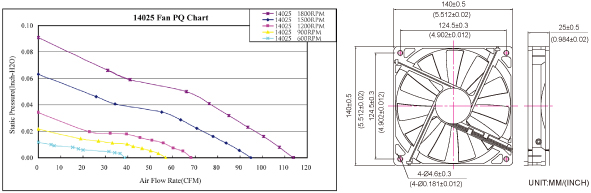

P&Q Curve / Dimensions Drawing

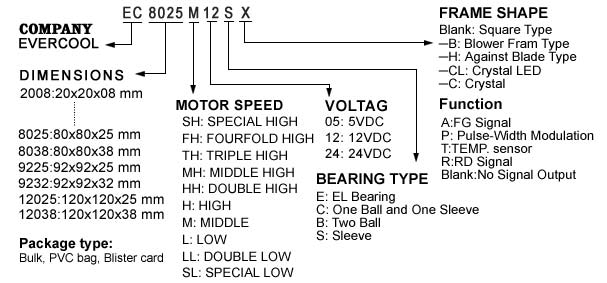

Model Number System
Specifications
Please read cataloge firstly !
Model
Voltage VDC
Current AMP
Input WATTS
Fan Speed RPM
AirFlow CFM
Pressure lnch-H2O
Noise dBA
EC14025H12X
12
0.72
8.64
1800
113.87
0.09
<30.9
EC14025M12X
12
0.45
5.4
1500
94.89
0.06
<26.9
EC14025L12X
12
0.28
3.36
1200
68.23
0.03
<22.1
EC14025LL12X
12
0.18
2.16
900
56.74
0.02
<15.8
EC14025SL12X
12
0.1
1.2
600
38.58
0.01
<7
E - EL bearing , B - Two ball bearing , C - One ball One sleeve bearing , S - Sleeve bearing
• Material:impeller&Frame:Plastic(UL 94V-0) • Lead Wires: UL 1007 AWG #28 Or Equivalent Red Wire Positive(+),Black Wire Negative(-),Yellow Wire Or Blue Wire Signal(FG) • Function type is optional. • The max air flow and the speed are measured in free air;max air pressure is measured at zero air flow. • Noise is measured in anechoic chamber in free air,one meter from intake side. • All readings are typical values at rated voltage. • Specifications are subject to change without notice. • Additional special function may be added according the requirement of customer.
