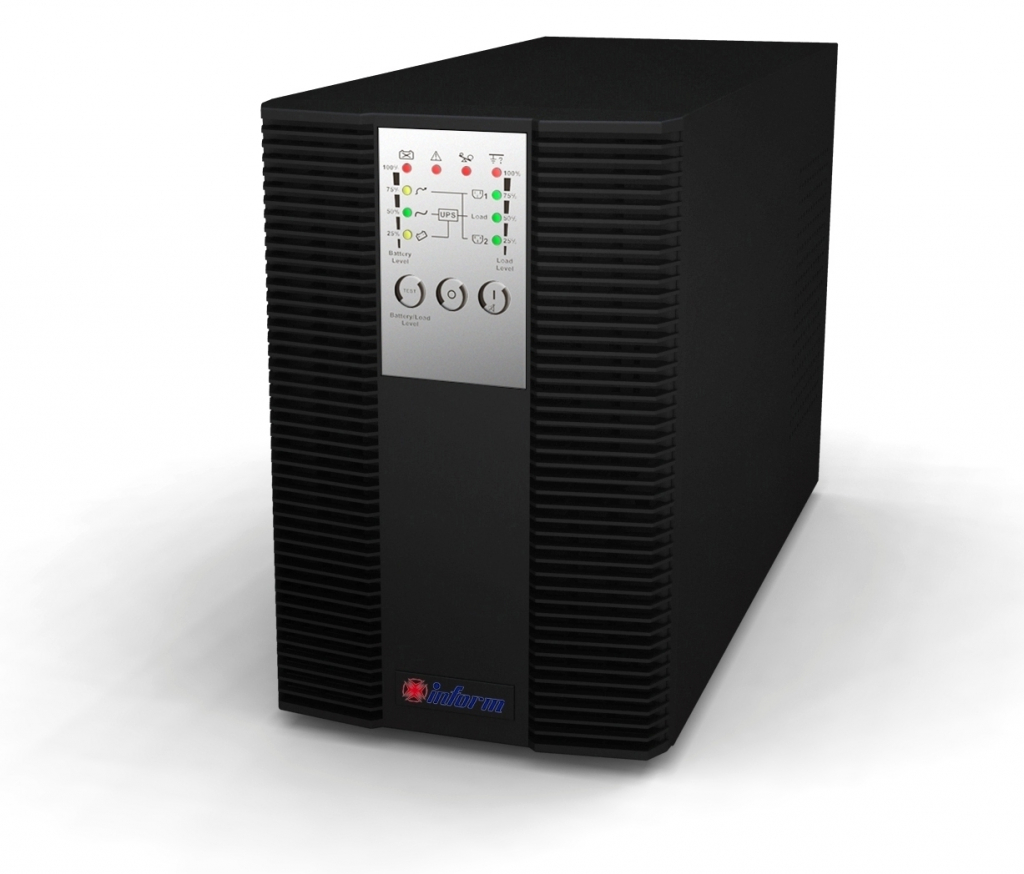

Непрекъсваемо захранване (UPS) SINUS EVO SES220 2KVA ON-LINE 879011002000

Sinus Eco Series

• Model
SES 220

• Input
Power(kVA) 2
Voltage Range
110VAC ~ 300VAC ( @ 0% to 25% Load )
140VAC ~ 300VAC ( @ 25% to 50% Load )
160VAC ~ 300VAC ( @ 50% to 100% Load )
Frequency 45Hz ~ 65Hz
Power Factor >=0.99 ( @full linear load )

• Output
Output Power Factor 0,7
Voltage 220V / 230V / 240VAC
Voltage Regulation <±1% ( till low battery warning signal )
Frequency ( Synchronized range ) 3Hz or 1Hz ( selectable )
Frequency ( Battery Mode ) 50 / 60Hz±0.1%
Harmonic Distortion <3% ( @full linear load ), <6% ( @full non-linear load )
Crest Factor 3:1
Output Waveform Sinusoidal
Overload Capacity 100% to 105% : Continous / 106%-120% : 30 seconds / 121%-150% : 10 seconds / >150% : transfer to bypass
Line Mode efficiency ±>87%
Battery Mode efficiency ±>86%
Transfer Time ( AC to DC ) 0ms
Outlets 3pcs IEC & 2pcs Schuko

• Battery
Type Maintenance-free lead acid batteries
Recharge time ( up to 80 % ) 5hours
Voltage 48VDC
Quantity 4 pcs 12V 7ah
Back Up Time Full Load 3min
Half Load 10min
Cold Start YES

• Display
LED Display
Normal Mode, Battery Mode, Bypass Mode, Self-Test, Weak-Bad Batery, Site Wiring Fault, Fault, Overlaod, Load/Battery
Level

• Alarms
Battery Buzzer Sound once every 1.5secods
Low Battery Buzzer Sound once every 0.2secods
Overload Buzzer Sound once every 3secods
Normal alarm Buzzer Sound once every 3secods
Fault Countinous Buzzer Sound

• Protection
Short Circuit Bypass Mode: Fuse, Normal Mode: Output Breaker / Electronic Circuit, Battery Mode: Output Breaker / Electronic Circuit
Battery Battery Discharge Management
EPO UPS shuts down immidiately
Over Temperature Normal Mode: Transfers to Bypass Mode, Battery Mode: UPS shuts down immidiately

• Communication
Interface(Communication Ports) RS-232
Monitoring and Management Software standard
Options Dry Contact Board, USB Board, SNMP Card

• Environment
Temparature 0°C - 40°C
Humidity 0% - 90% ( without condensation )
Noise Level(1m Distance) <50dBA
Protection Class IP20

• Physical Specifications
Net Weight (kg) 22
Dimensions(mm) WxDxH 152x438x322

• Standards
Standards EN 62040-1-1 (safety), EN 62040-2(EMC)

Техническа документация: [ Inform-SES220.PDF ]
