DVR TVT 8CH Hybrid TD-2108NS-HC-H, +4CH IPC

DVR TVT 8CH Hybrid TD-2108NS-HC-H, +4CH IPC

Features

4 / 8 CH DVR supports TVI / AHD/CVI  5MP/4MP/1080P/720P/WD1 video input 4 / 8CH DVR supports 2 / 4 CH 5MP / 4MP / 3MP /1080P / 960P /720P IP video input by default

4CH DVR: 4CH analog video input can be switched to 4CH IP video input

8CH DVR: 8CH analog video input can be switched to 8CH IP video input

Adopt standard H.265 high profile compression format to get high-quality video at much lower bit rate

Intuitive and user-friendly Graphics User Interface (GUI), window style operation by mouse

Multi-mode recording: manual / timed / sensor / motion / AI recording

Playback: 4 / 8 CH simultaneously playback

Search: time slice, time, event, tag search

Express and flexible backup via USB, network and so on

Pentaplex: preview, record, playback, backup and remote access

DHCP, DDNS, PPPoE network protocol

Remote control via Web or CMS: preview, playback, backup, PTZ and configuration

Authorization management, log review and device status review

Support 1080P output, true high-resolution display

Support PTZ preset and auto cruise, up to 255 presets and 8 cruises

Support NAT function and QR Code scanning by mobile phones

Powerful mobile surveillance by smart phones with iOS and Android OS

Specification

Model		TD-2104NS-HC-H	TD-2108NS-HC-H
System	OS	Embedded Linux
Video	Analog Video Input	BNC × 4	BNC × 8
		BNC interface (1.0Vp-p; 75Ω)
		TVI/ AHD/CVI: 5MP/ 4MP/ 1080P/ 720P/ WD1
	IP Video Input	2CH (up to 6CH)	4CH (up to 12CH)
		Up to 5MP@30fps	Up to 5MP@30fps
	Total Input	6CH	12CH
	Output	HDMI × 1: 1920 × 1080 / 1280 × 1024 / 1024 × 768 VGA × 1: 1920 × 1080 / 1280 × 1024 / 1024 × 768
		BNC × 1: CVBS (used as the main or spot output)
	Compression	H.264/H.265/H.265+
	Multi-screen Display	1/4/6/9	1/4/6/8/9/13/16
Audio	Input	RCA × 1
	Output	RCA × 1 (linear, 600Ω)
	Two-way audio	Take up channel one audio input
	Compression	G.711(U/A)
Record	Resolution	5MP Lite/ 4MP Lite/ 1080P/ 1080P Lite/ 720P/ WD1
	Frame Rate	Analog Channel: 5MP Lite :10fps; 4MP Lite/1080P: 12fps (PAL)/15fps (NTSC);
		1080P Lite/ 720P/ WD1: 25fps (PAL)/30fps (NTSC)
		IP Channel: 25fps (PAL)/30fps (NTSC)
	Bit Rate	32Kbps ~ 4Mbps	32Kbps ~ 4Mbps
	Mode	Manual, timer, motion, smart event
Playback	Playback	4CH	8CH
	Search	Time slice / time / event / tag search
	Smart Search	Highlight colors to display the camera record in a certain period of time,
		different colors refer to different record events
	Function	Play, pause, FF, FB, digital zoom, etc.
Alarm	Mode	Manual, motion, exception, smart event
	Input	No
	Output	No
AI Function	Smart Motion Detection Performance	4CH	8CH
	Perimeter Protection Performance	1CH	1CH
Network	Interface	RJ 45 100Mbps × 1
	Protocol	TCP/ IP, IPv4, IPv6, PPPoE, DHCP, DNS, DDNS, UPnP, HTTP, HTTPs, 802.1x,FTP, RTP, RTSP, RTCP, NTP, SMTP, UDP, WebSocket, SNMP, IGMP
	Incoming Bandwidth	16Mbps(max.36Mbps)	32Mbps (max.60Mbps)
	Outgoing Bandwidth	40Mbps	60Mbps
	Client Connection	Max. 5 users access	Max. 5 users' access
Mobile Device	OS	iOS, Android
Storage	HDD	SATA × 1, up to 10TB
Backup	Local Backup	U disk, USB mobile HDD
	Network Backup	Yes
Port	RS 485	RS 485 × 1 (half-duplex)

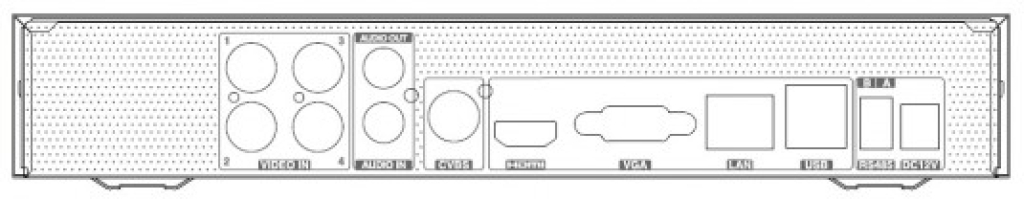

	USB	USB 2.0 × 2 (in the rear panel)
	Remote Controller	Optional
Others	Power Supply	DC12V / 1.5A	DC12V / 2A
	Consumption	≤5W (without HDD)	≤8W (without HDD)
	Dimensions(mm)	255× 222× 42(W × D × H)
	Working Environment	-10~50°C, 10%~90% (humidity)
	Certificate	CE, FCC
	Environmental Protection	Comply with Directive EU RoHS, WEEE, REACH
