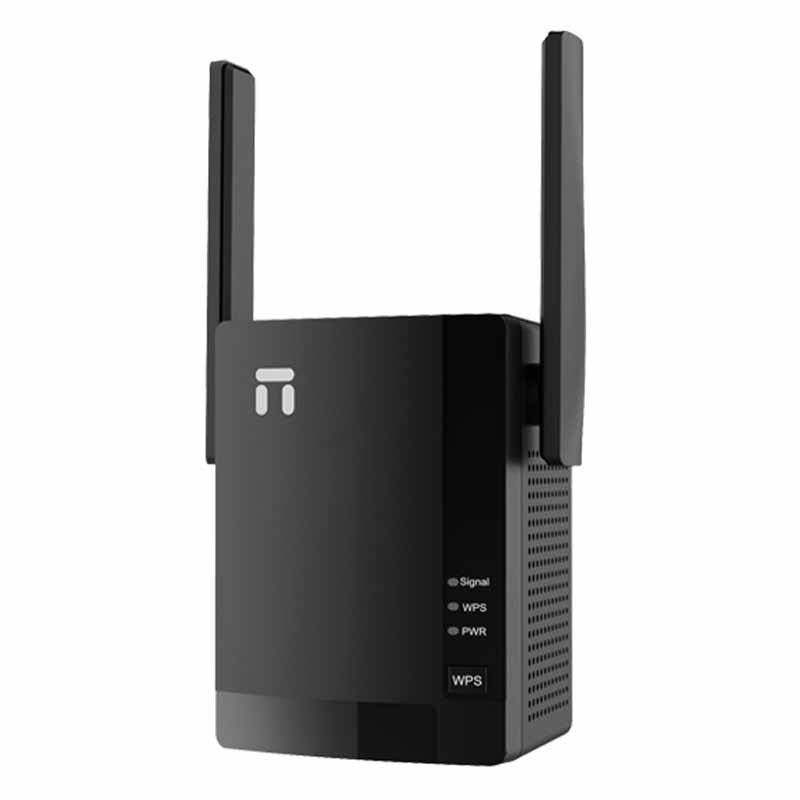

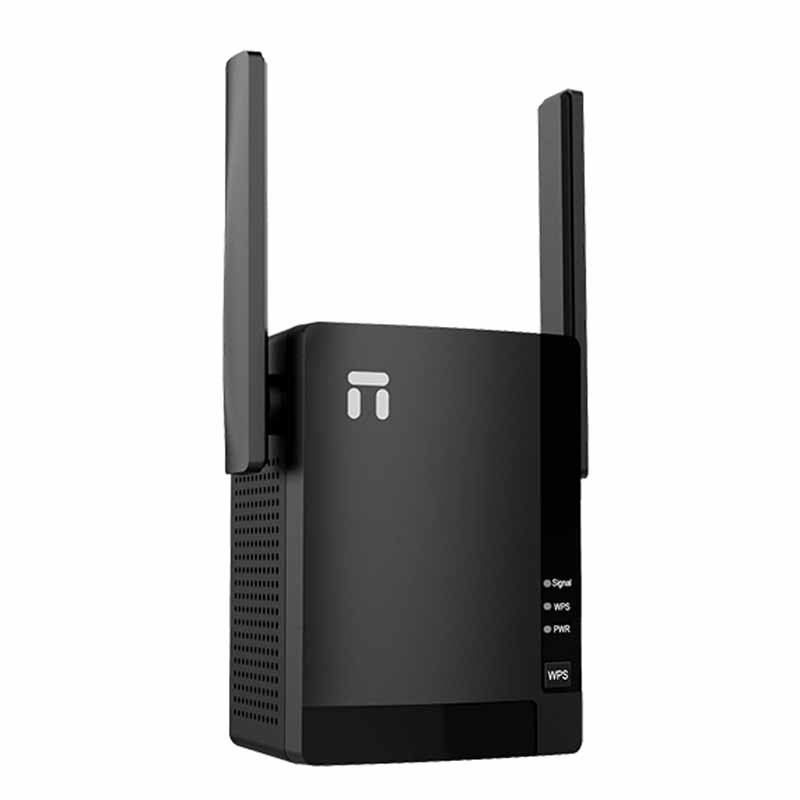

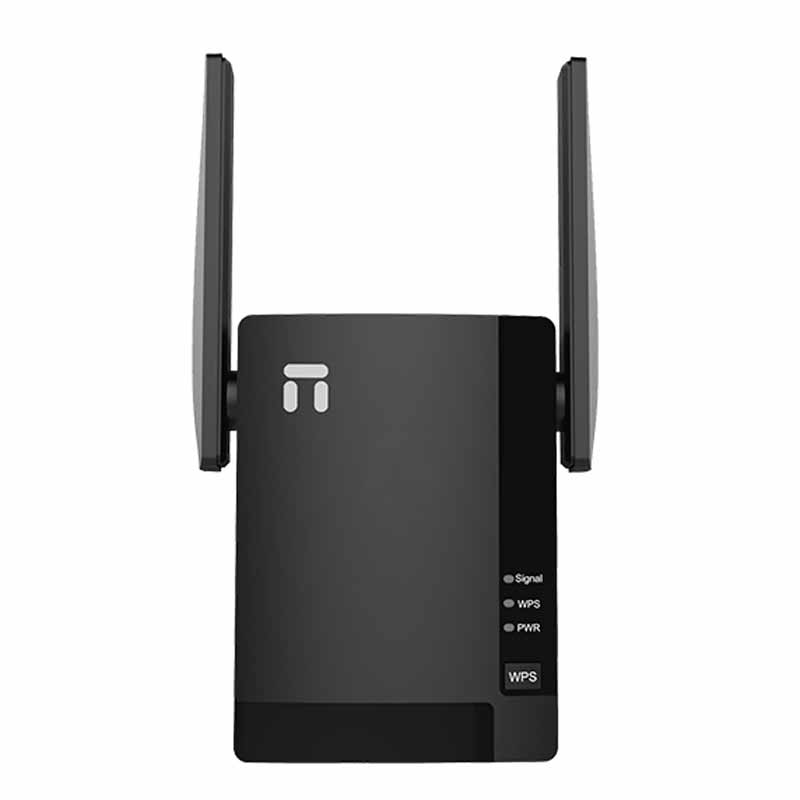

AC1200 Dual Band Mini WiFi Router E3, extender

AC1200 Dual Band Mini WiFi Router E3, extender

AC1200 Dual-Band WiFi
Enjoy Home Entertainment Without Any Lag
Enjoy home entertainment without any lag, reaching speeds up to 1200Mbps (867Mbps on the 5Ghz band and 300Mbps on the 2.4Ghz band)

Router/ AP/ Repeater
Three Working Modes
E3 can Support three modes of router/AP (wired repeater)/wireless repeater, users can choose the corresponding mode according to different Internet access needs.

MU-MIMO Technology
Mutiple Devices to Connect Simultaneously
E3 is the superior choice for seamless HD streeaming, online gaming and other bandwidth-intensive tasks at the same time to allow connected devices achieve faster speeds than standard AC routers, improving network efficiency.

Compliant TR-069 Protocols for Telecom Operators
E3 is dedicate not only for consumers but also friendly to the telecom operators, which supports device management and control remotely via their ACS (Auto-Configuration Sever) system.

Easy Setup and Use
Set up your router in minutes with the intuitive web interface.

FULL TECHNICAL SPECIFICATIONS

Wireless

Standards

• IEEE 802.11b/g/n 2.4GHz
• IEEE 802.11a/n/ac 5GHz

Signal Rate

• Up to 300Mbps2.4GHz
• UP to 867Mbps 5GHz

Frequency Range - 2.4~2.4835GHz and 5.150 ~5.85GHz

Transmit Power - 20dBm(MAX)

Data Transfer Rate

• 802.11ac:80MHZ(433Mbps, 867Mbps)
• 802.11n:
  40MHz(300Mbps, 270Mbps, 240Mbps, 180Mbps, 120Mbps, 90Mbps, 60Mbps, 30Mbps)
  20MHz (144Mbps, 130Mbps, 115Mbps, 86Mbps, 57Mbps, 43Mbps, 28Mbps, 14Mbps) (Auto-Sense)
  801.11g: (54Mbps, 48Mbps, 36Mbps, 24Mbps, 18Mbps, 12Mbps, 11Mbps, 9Mbps, 6Mbps)
  802.11b: (11Mbps,9Mbps, 6Mbps, 5.5Mbps, 2Mbps, 1Mbps)

Wireless Modes  - AP, Repeater, Router

Wireless Security - None / WEP / WPA-PSK / WPA2-PSK / WPA2-Mixed
IP Filtering/MAC Filtering/Domain Filtering/IPv6 Filtering
Hardware

Hardware

Standards - IEEE 802.11b/g/n/ac

Interface

• 1*10/100Mbps Auto MDI/MDIX RJ45 WAN port
• 2x2 11b/g/n/ac 2.4 / 5GHz dual band

LED Indicators - Power/Single Good/Single Poor/WPS

Buttons - 1x WPS button/1x Reset to default button

Antenna - 2x 3dBi 2.4G+3dBi 5G Dual band Omin Antenna

Power Supply - DC 3.35V/3A

Dimensions - 74 x 50 x1.6mm(L x W x H )

Others - Support IPv4 / IPv6/DHCP server/LAN IP set /Firmware Upgrade/Diagnostic/Ping Watchdog /System Log

Others

Certification - FCC, CE, EAC

Environment

• Operating Temperature: 0℃~40℃
• Storage Temperature: -40℃~70℃
• Operating Humidity: 10%~90% non-condensing
• Storage Humidity: 5%~90% non-condensing

Package

• 1* E3
• 1* Quick Installation Guide (Multilingual)
