последни бройки
| Категория: | несортирани |
| Производител: | |
| Гаранция: | 24 месеца |
Наличност:ДА (последни бройки)
На склад в: София
1719.00 ЛВ
На склад в: София
1719.00 ЛВ

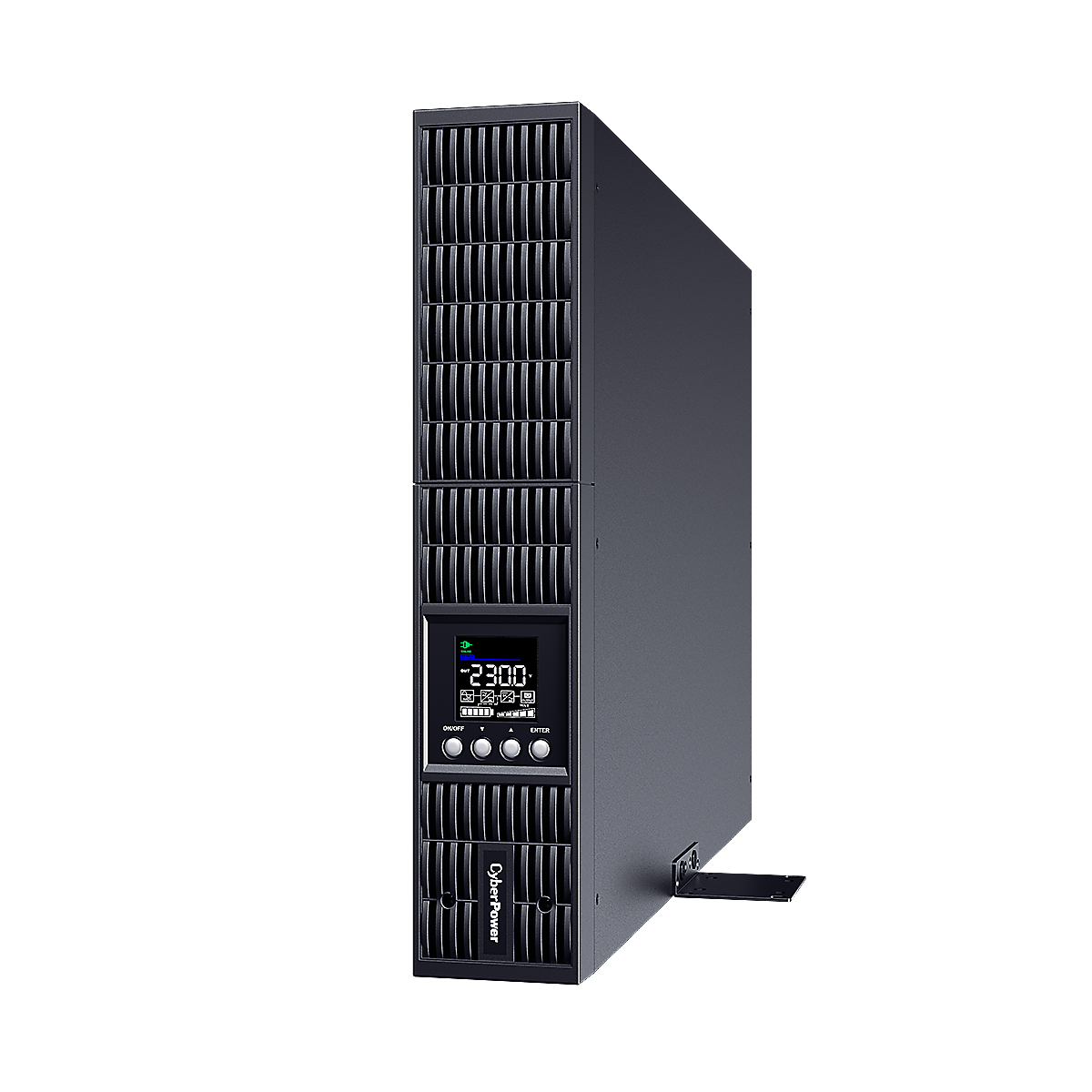

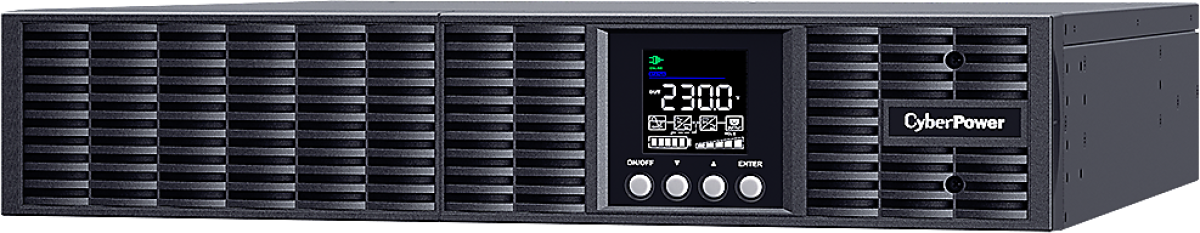

Online 2U Rackmount/Tower UPS 3000VA/2700W, синусоидален изход, енергоспестяващ, 8х C13/2x C19, Output 200~240V Programmable; OLS3000ERT2UA
Pure Sine Wave Output suitable for active-PFC power supplies; USB Connection for PC/NAS; Relay I/O & EPO Ports, Optional SNMP LAN Interface, Programmable Multifunction Color LCD Display, 6 x 9AH/12V Batteries; Advanced Power Management.
General | ||||
| UPS Topology | Online Double Conversion | |||
| Energy Saving Technology | Online ECO Mode Efficiency > 95% | |||
| Active PFC Compatibility | Yes | |||
Input | ||||
| Generator Compatibility | Yes | |||
| Nominal Input Voltage (Vac) | 230 ± 10% | |||
| Input Voltage Range (Vac) | 190 ~ 300 | |||
| Input Frequency (Hz) | 50 ± 10, 60 ± 10 | |||
| Input Frequency Detection | Auto-sensing | |||
| Rated Input Current (A) | 13 | |||
| Input Power Factor | 0.99 | |||
| Input Connector Type | IEC C20 | |||
Output | ||||
| Capacity (VA) | 3000 | |||
| Capacity (Watts) | 2700 | |||
| On Battery Waveform | Pure Sine Wave | |||
| On Battery Voltage(s) (Vac) | 208 ± 1%, 220 ± 1%, 230 ± 1%, 240 ± 1% | |||
| Output Voltage Setting | Configurable | |||
| On Battery Frequency (Hz) | 50 ± 0.5%, 60 ± 0.5% | |||
| Output Frequency Setting | Configurable | |||
| Power Factor | 0.9 | |||
| Overload Protection | Internal Current Limiting, Circuit Breaker, Fuse | |||
| Overload Protection (Line Mode) | 110~120% Load for 1 min, >120% Load Immediately | |||
| Overload Protection (Battery Mode) | 110~120% Load for 10 sec, >120% Load Immediately | |||
| Overload Protection (Bypass Mode) | >130% Load Immediately | |||
| Harmonic Distortion (Linear Load) | THD＜3% | |||
| Harmonic Distortion (Non-linear Load) | THD＜5% | |||
| Outlet(s) - Total | 10 | |||

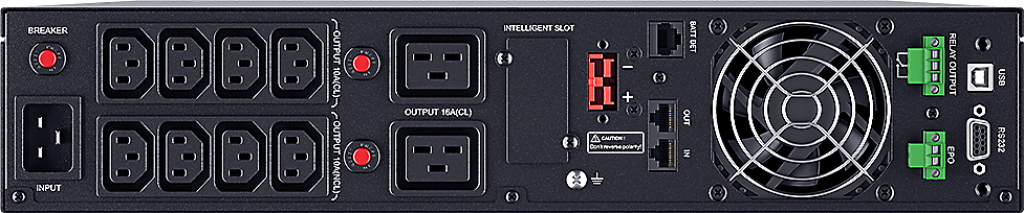

| Outlet Type | IEC C19 x 2, IEC C13 x 8 | |||
| Outlet(s) - Battery & Surge Protected | 10 | |||
| Outlet(s) - Critical Load (CL) | 6 | |||
| Outlet(s) - Non-Critical Load (NCL) | 4 | |||
| Typical Transfer Time (ms) | 0 | |||
Battery | ||||
| Runtime at Half Load (min) | 13.8 | |||
| Runtime at Full Load (min) | 4.3 | |||
| Typical Recharge Time (Hours) | 4 | |||
| Smart Battery Management (SBM) | Yes | |||
| User-replaceable | Yes - Qualified Personnel Only | |||
| Battery Type | Sealed Lead-acid | |||
| Replacement Battery Pack | RBP0158 | |||
| RBP Quantity (pcs) | 1 | |||
| Compatible Extended Battery Module (EBM) | BPSE72V40ART2U | |||
| Max. EBM Quantity (pcs) | 3 | |||
Surge Protection & Filtering | ||||
| Surge Suppression (Joules) | 388 | |||
| EMI/RFI Filtration | Yes | |||
| Phone/Network Protection RJ11/RJ45 (Combo) | 1-in, 1-out | |||
Management & Communications | ||||
| LCD Panel | Yes | |||
| LCD Types | Color LCD | |||
| HID Compliant USB Port(s) | 1 | |||
| Serial Port | RS232 | |||
| Dry Contact (with Relay) | Yes | |||
| Emergency Power Off (EPO) Port | Yes | |||
| Power Management Software | PowerPanel Business (Recommended) | |||
| SNMP/HTTP Remote Monitoring | Yes - with optional RMCARD205 | |||
Physical | ||||
| Form Factor | Rackmount, Tower | |||
| Physical Size - UPS Module | ||||
| Dimensions (WxHxD) (mm.) | 438 x 88 x 610 | |||
| Weight (kg.) | 26.7 | |||
| Installed Rack Height (U) | 2 | |||
Environmental | ||||
| Operating Temperature (°C) | 0 ~ 40 | |||
| Operating Relative Humidity (Non-condensing) (%) | 20 ~ 90 | |||
| Online Thermal Dissipation (BTU/hr) | 911 | |||
Certifications | ||||
| Certifications* | CE, EAC | |||
| RoHS | Yes | |||
