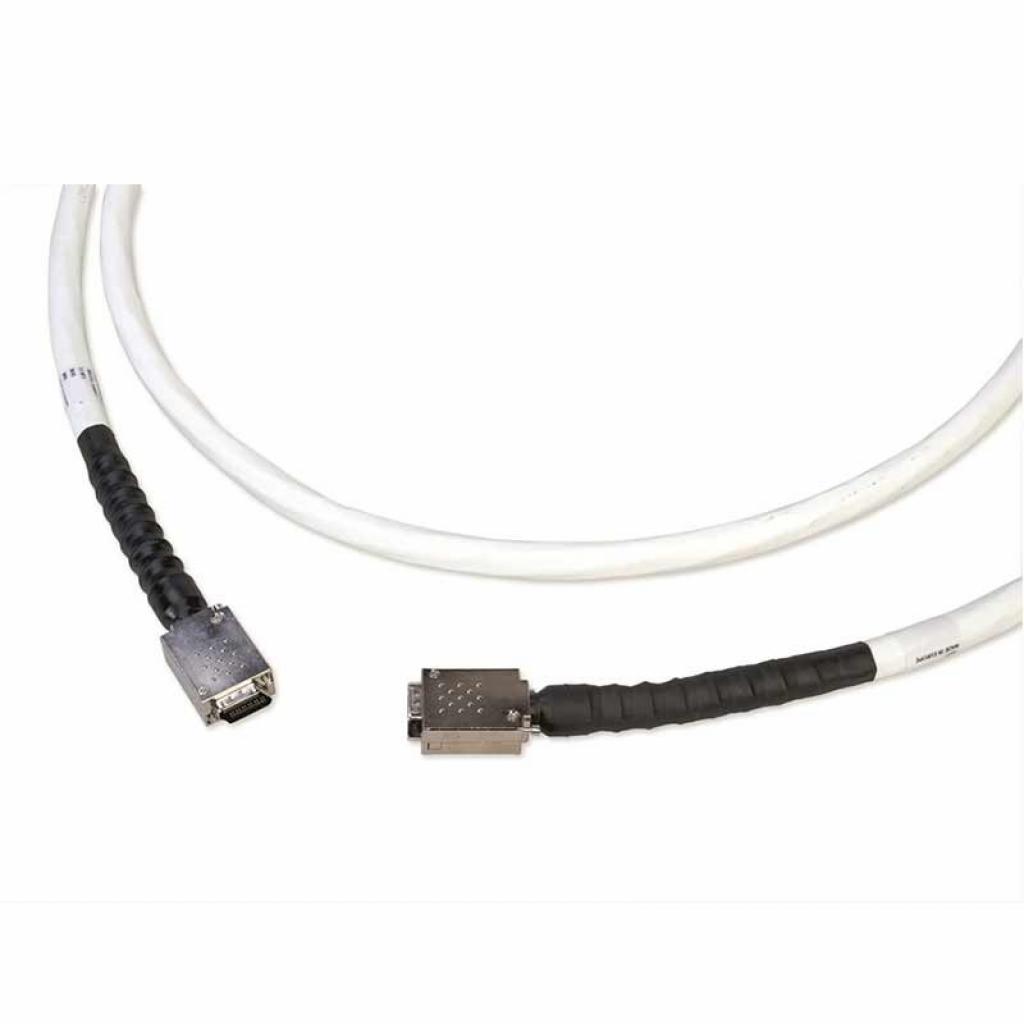

High speed cable MRJ21, 1G U/F/UTP LSZH, solid, white

High speed cable MRJ21, 1G U/F/UTP LSZH, solid, white

• Universal modular copper cabling platform for applications such as Gigabit Ethernet, VoIP and Power over Ethernet
• Increased I/O port density and cleaner cabling schemes compared to RJ45 connectors and cabling
• Robust die cast cable covers provide straight, or 45 deg left/right cable exit for ease of routing

Product Classification

• Regional Availability: Asia | Australia/New Zealand | EMEA
• Portfolio: CommScope
• Product Type: Copper trunk cable assembly
• Product Brand: MRJ21™
• Product Series: MRJ21

General Specifications

• Category: 6
• Application: Ethernet, 1 GbE
• Cable Type: F/UTP (shielded)
• Conductor Type: Solid
• Construction Type: Stranded
• Interface, Connector A: MRJ21 plug
• Interface Feature, connector A: Backshell, 180°
• Interface, Connector B: MRJ21 plug
• Interface Feature, connector B: Backshell, 180°
• Jacket Color: White
• Pairs, quantity 24
• Total Ports, quantity: 6

Dimensions

• Diameter Over Jacket: 16 mm | 0.63 in
• Compatible Conductor Gauge, solid: 24 AWG

Electrical Specifications

• Safety Voltage Rating: 150 V

Material Specifications

• Conductor Material: Bare copper

Environmental Specifications

• Operating Temperature: -40 °C to +70 °C (-40 °F to +158 °F)
• Environmental Space: Low Smoke Zero Halogen (LSZH)

Packaging and Weights

• Packaging quantity: 1

Regulatory Compliance/Certifications

• ROHS: Compliant
• CHINA-ROHS: Below maximum concentration value
• REACH-SVHC: Compliant
