Mini-ITX, Intel Quad-Core Processor J1900(2 GHz), DDR3-2 SO-DIMMs, 2xSATA 3G, N/AxSATA 6G, 2xGLAN, IPMI

Supports Dual channel DDR3/DDR3L 1333/1066 non-ECC, un-buffered SO-DIMM, max 16GB; Support 2 SATA2 by J1900; Supports 1x PCIe 2.0 x1; Integrated IPMI 2.0 with KVM and Dedicated LAN (RTL8211E); Supports Intel Dual GLAN (2 x Intel i210 ); Supports DC-in Jac
MB Physical Status Form Factor:- mini-ITX Dimensions:- 6.7'' x 6.7''(17.0 cm x 17.0 cm) Processor System CPU:- Support Intel^® Quad-Core Processor J1900(2 GHz) Chipset:- SoC System Memory Capacity:- 2 x DDR3/DDR3L SO-DIMM slots Type:- Dual Channel DDR3/DDR3L memory technology
- Supports DDR3/DDR3L 1333/1066 non-ECC, un-buffered memory
- Max. capacity of system memory:16GB Voltage:- 1.35V /1.5V Expansion Slot PCIe 2.0 x 1:- 1 slots Storage SATA Controller:- J1900: 2x SATA2 3Gb/s Ethernet Interface:- 1000 /100 /10 Mbps LAN Controller:- 2 x RJ45 by Intel^® i210
- 1 x RJ45 Dedicated IPMI LAN port
- Supports Wake-On-LAN
- Supports Energy Efficient Ethernet 802.3az
- Supports Dual LAN with Teaming function
- Supports PXE Management BMC Controller:- ASPEED AST2300 IPMI Dedicated LAN:- 1 x Realtek RTL8211E for dedicated management GLAN Features:- Watch Dog

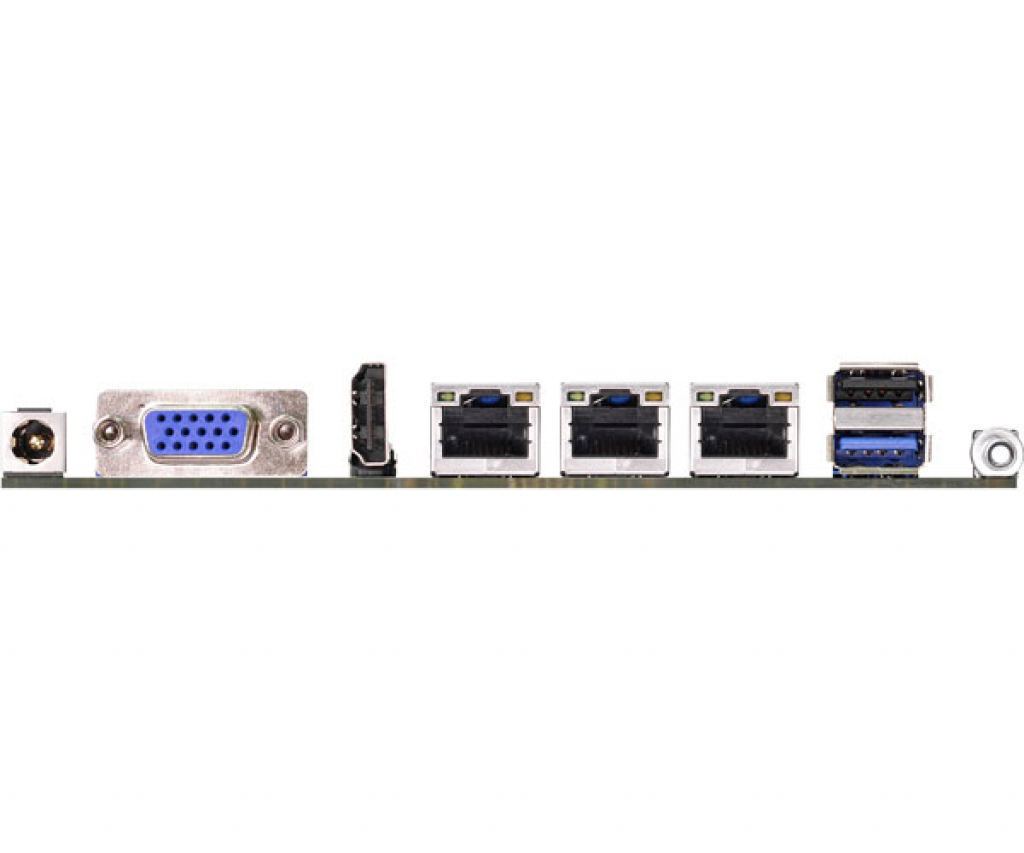

- NMI Graphics Controller:- ASPEED AST2300 VRAM:- DDR3 16MB Rear Panel I/O VGA Port:- 1 x D-Sub USB 2.0 Port:- 1 USB 3.0 Port:- 1 HDMI:- 1 Lan Port:- RJ45: 2 + 1 (IPMI)
- LAN Ports with LED (ACT/LINK LED and SPEED LED) UID Button/UID LED:- 1 DC in:- 1x DC Jack Power connector in Front side Power connector:- 4-pin 12V/19V input Internal Connector Auxiliary Panel Header:- 1 (include chassis intrusion, location button & LED, front LAN LED, system fault LED) TPM Header:- 1 IPMB Header:- 1 Buzzer:- 1 Fan Header:- 4 x4-pin ATX Power:- 1 (24-pin) Type A USB 2.0 Port:- 1 PSU SMB Header:- 1 Speaker:- 1 System BIOS BIOS Type:- 64Mb AMI UEFI Legal BIOS BIOS Features:- Plug and Play (PnP)
- ACPI 2.0 Compliance Wake Up Events
- SMBIOS 2.8.0 Support
- ASRock Rack Instant Flash Hardware Monitor Temperature:- CPU Temperature Sensing
- System Temperature Sensing
- System Inlet Temperature Sensing
- Card Side Temperature Sensing Fan:- CPU/Rear/Front Fan Tachometer
- CPU Quiet Fan (Allow Chassis Fan Speed Auto-Adjust by CPU Temperature)
- CPU/Rear/Front Fan Multi-Speed Control Voltage:- Voltage Monitoring: +12V, +5V, +3.3V, CPU Vcore, DRAM, 1.05V_PCH, +BAT, 3VSB, 5VSB Support OS OS:Microsoft Windows
- Server 2008 R2 (64 bit)
- Server 2012 (64 bit)
- Server 2012 R2 (64 bit)
Linux
- RedHat Enterprise Linux Server 5.10/6.5(32 / 64 bit)
- CentOS 5.10 / 6.5 (32 / 64 bit)
- SUSE Enterprise Linux Server 11 SP3 (32 / 64 bit)
- FreeBSD 9.1 (32 / 64 bit)
- Fedora core 19 (64 bit)
- Ubuntu 12.04.2 (64 bit) / 12.10 (64 bit)
Virtual
- VMWare ESXi 5.5 Environment Temperature:Operation temperature: 10°C ~ 35°C / Non operation temperature: -40°C ~ 70°C
