Mini-ITX (Extended), C224 chipset, 1x soc.1150, DDR3-4 DIMMs, 2xSATA 3G, 4xSATA 6G, 2xGLAN, IPMI

supports Intel Xeon processor E3-1200 v3 series & Haswell i3, Pentium and Celeron processors; 4 x DIMM DDR3 1600/1333 ECC, max. 32GB; 1 x PCIe 3.0 x8; 4 x SATA3 and 2 x SATA2 by Intel C224 support RAID 0,1,5,10; 2 x Intel i210, support Dual GLAN; ASPEED 2
MB Physical Status Form Factor:- Extended mini ITX Dimensions:- 8.8'' x 6.7'' (22.4 cm x 17.0 cm) Processor System CPU:- Single socket H3 (LGA 1150) supports Intel^® Xeon processor E3-1200 v3 series & Haswell i3 processors
- Supports Hyper-Threading Technology Socket:- Single Socket H3 (LGA1150) Chipset:- Intel^® C224 System Memory Capacity:- 4 x 240-pin DDR3 DIMM slots
- Support up to 32GB DDR3 ECC UDIMM Type:- Dual Channel DDR3 memory technology
- Supports DDR3 1600/1333 ECC UDIMM Voltage:- 1.5V, 1.35V Expansion Slot PCIe 3.0 x 8:- 1 slot Storage SATA Controller:- Intel^® C224 : 4 x SATA3 6.0 Gb/s, 2 x SATA2 3.0 Gb/s, Support RAID 0, 1, 5, 10 and Intel^® Rapid Storage SAS Controller:- Marvell SE9172: 2 x SATA3 6.0 Gb/s Ethernet Interface:- Gigabit LAN 10/100/1000 Mb/s LAN Controller:- 2 x Intel^® i210
- Supports Wake-On-LAN
- Supports Energy Efficient Ethernet 802.3az
- Supports Dual LAN with Teaming function

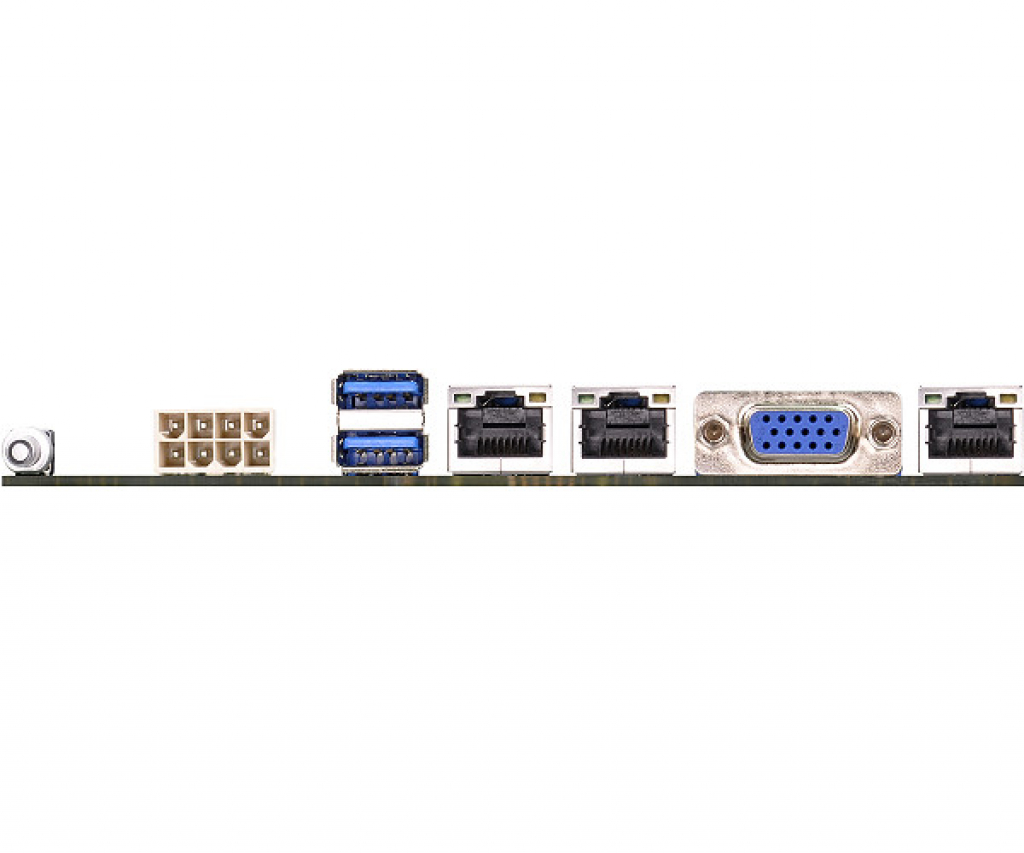

- Supports PXE Management BMC Controller:- ASPEED AST2300 : IPMI (Intelligent Platform Management Interface) 2.0 with iKVM support IPMI Dedicated LAN:- 1 x Realtek RTL8211E for dedicated management GLAN Graphics Controller:- ASPEED AST2300 VRAM:- DDR3 16MB Rear Panel I/O VGA Port:- 1 x D-Sub USB 3.0 Port:- 2 Lan Port:- 2 x RJ45 Gigabit Ethernet LAN ports
- 1 x RJ45 Dedicated IPMI LAN port
- LAN Ports with LED (ACT/LINK LED and SPEED LED) Serial Port:- 1 (COM1) UID Button/UID LED:- 1 DC in:- 1 x ATX 8-pin connector Internal Connector Auxiliary Panel Header:- 1 (includes chassis intrusion, location button & LED, front LAN LED) TPM Header:- 1 IPMB Header:- 1 Fan Header:- 5 x 4-pin USB 3.0 Header:- 1 (each supports 2 USB 3.0 ports) USB 2.0 Header:- 1 (each supports 2 USB 2.0 ports) Type A USB 2.0 Port:- 1 NMI Button:- 1 BMC_SMBUS:- 2 SGPIO:- 1 PDB SMBUS:- 1 x 2.0mm 6-pin connector Power Connector:- 1 (18-pin) + 1 (4-pin) System BIOS BIOS Type:- 64Mb AMI UEFI Legal BIOS BIOS Features:- Plug and Play (PnP)
- ACPI 1.1 Compliance Wake Up Events
- SMBIOS 2.3.1 Support
- DRAM Voltage Multi-adjustment
- ASRock Instant Flash Hardware Monitor Temperature:- CPU Temperature Sensing
- System Temperature Sensing Fan:- CPU/Rear/Front Fan Tachometer
- CPU Quiet Fan (Allow CPU Fan Speed Auto-Adjust by CPU Temperature)
- CPU/Rear/Front Fan Multi-Speed Control Voltage:- Voltage Monitoring: SIO: +12V, +5V BMC: +3.3V, CPU Vcore, DRAM, 1.05V_PCH, +BAT, 3VSB, 5VSB, DC_IN 12V Support OS OS:Microsoft Windows
- Server 2008 R2 (64 bit)
- Server 2012 (64 bit)
- Server 2012 R2 (64 bit)
Linux
- RedHat Enterprise Linux Server 5.9/6.4 (32 / 64 bit)
- CentOS 5.9 / 6.4 (32 / 64 bit)
- SUSE Enterprise Linux Server 11 SP3 (32 / 64 bit)
- FreeBSD 9.1 (32 / 64 bit)
- Fedora core 19 (64 bit)
- Ubuntu 12.04.2 (64 bit) / 12.10 (64 bit)
Virtual
- VMWare ESXi 5.5 Environment Temperature:- Operation temperature: 10°C ~ 35°C / Non operation temperature: -40°C ~ 70°C
