micro-ATX, Z97 chipset, 1x soc.1150, DDR3-4 DIMMs, 6xSATA 6G, 2xGLAN, no IPMI, Audio

Supports 4th Gen & 5th Generation Intel Core™ Processors (Socket 1150); 4 x DIMM DDR3 1600/1333 UDIMM, max. 32GB; 1 x PCIe 3.0 x16, 1 x PCIe 3.0 x8, 1 x PCIe 2.0 x4, 1 x M.2 slot; 6 x SATA3 by Intel Z97, support RAID 0,1,5,10; Supports SATA Express (Port
MB Physical Status Form Factor:- Micro ATX 9.6" x9.6" Dimensions:- 9.6'' x 9.6'' (24.4 cm x 24.4 cm) Processor System CPU:- Supports 4th Gen & 5th Generation Intel^® Core™ Processors (Socket 1150)
- Supports Intel^® K-Series CPU
- Supports Intel^® Turbo Boost 2.0 Technology Socket:- Single socket H3 (LGA1150) Chipset:- Intel^® Z97 System Memory Capacity:- 4 x 240-pin DDR3 DIMM slots
- Support up to 32GB, un-buffered DIMM Type:- Dual Channel DDR3 1600/1333 UDIMM
- Supports DDR3 1600/1333 Voltage:- 1.5V, 1.35V Expansion Slot PCIe 3.0 x 16:- 1 slot (x16 or x8, switch with x8 slot) PCIe 3.0 x 8:- 1 slot (x0 or x8, switch with x16 slot) PCIe 2.0 x 4:- 1 slot M.2:- 1 slot (share with SATA Port4 & Port5) Storage SATA Controller:- Intel^® Z97 : 6 x SATA3 6.0 Gb/s Connectors, support RAID (RAID 0, RAID 1, RAID 5, RAID 10, Intel^® Rapid Storage Technology 13 and Intel^® Smart Response Technology), NCQ, AHCI and Hot Plug
- Support SATA Express (SATA Port5 & Port4, share with M.2 slot) Audio Audio Codec:- Realtek ALC892 Ethernet Interface:- Gigabit LAN 10/100/1000 Mb/s LAN Controller:Intel^® i210 + Intel^® i217LM (with Intel^® vPro support)
- Supports Wake-On-LAN
- Supports Energy Efficient Ethernet 802.3az
- Supports Dual LAN with Teaming function

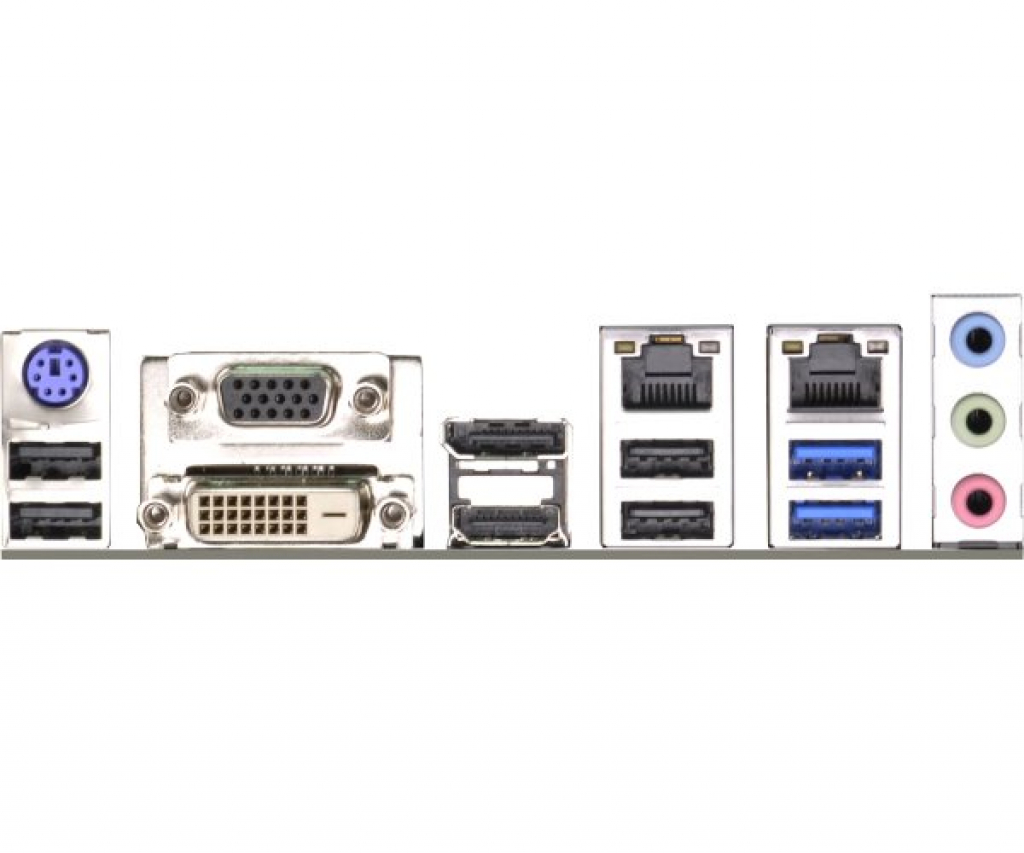

- Supports PXE Graphics Controller:- Intel^® HD Graphics Built-in Visuals and the VGA outputs can be supported only with processors which are GPU integrated VRAM:- Max. shared memory 1792MB Output:- Supports D-Sub with max. resolution up to 1920x1200 @ 60Hz Rear Panel I/O PS/2 KB/Mouse:- 1 VGA Port:- D-sub x 1, DVI x 1, HDMI x 1, Display port x1 USB 2.0 Port:- 4 USB 3.0 Port:- 2 Lan Port:- 2 x RJ45 Gigabit Ethernet LAN ports
- LAN Ports with LED (ACT/LINK LED and SPEED LED) Audio:- 3 Jack Internal Connector COM Port Header:- 1 (COM1) Power LED Header:- 1 Auxiliary Panel Header:- 1 (include chassis intrusion, front LAN LED) TPM Header:- 1 Fan Header:- 5 x 4pin ATX Power:- 1 (24-pin) + 1 (8-pin) USB 3.0 Header:- 1 (each supports 2 USB 3.0) USB 2.0 Header:- 1 (each supports 2 USB 2.0) System BIOS BIOS Type:- 128Mb AMI UEFI Legal BIOS BIOS Features:- Plug and Play (PnP)
- ACPI 1.1 Compliance Wake Up Events
- SMBIOS 2.3.1 Support
- DRAM Voltage Multi-adjustment
- CPU Core, IGPU, DRAM, 1.8V PLL, VTT, VCCSA Voltage Multi-adjustment Hardware Monitor Temperature:- CPU Temperature Sensing
- System Temperature Sensing Fan:- CPU/Rear/Front Fan Tachometer
- CPU Quiet Fan (Allow Chassis Fan Speed Auto-Adjust by CPU Temperature)
- CPU/Rear/Front Fan Multi-Speed Control Voltage:- Voltage Monitoring: +12V, +5V, +3.3V, CPU Vcore Support OS OS:Microsoft Windows
- Windows 7 ( 32 / 64 bit)
- Windows 8 ( 32 / 64 bit)
- Windows 8.1 ( 32 / 64 bit) Feature Unique Features:- ASRock Instant Flash Environment Temperature:- Operation temperature: 10єC ~ 35єC / Non operation temperature: -40єC ~ 70єC
