E-ATX, C612 chipset, 2x soc.2011 R3, DDR4-16 DIMMs, N/AxSATA 3G, 12xSATA 6G, N/A SAS, 4 (i210)xGLAN, AST2400 IPMI

support Intel Xeon processor E5-2600/4600 & v3 series; Supports Quad DDR4 2133/1866 LR, Rigistered, ECC, UDIMM and NVDIMM, 16 x DIMM; Supports 10 x SATA3 6.0 Gb/s, 2 x SATA3 by Marvell 9172; Supports 3 PCIe3.0x 16, 3 PCIE 3.0 x8; Integrated IPMI 2.0 and K
MB Physical Status Form Factor:- SSI EEB Dimensions:- 12'' x 13'' Processor System CPU:- Intel^® Xeon processor E5-2600/4600 & v3 series Socket:- Dual Socket LGA 2011 R3 Power Design:- Intel^® C612 System Memory Capacity:- 16 DIMM slots Type:- Quad Channel memory technology
- Supports 2133/1866 LR/R/ECC, UDIMM and NVDIMM Voltage:- 1.2V Expansion Slot PCIe 3.0 x 16:- 3 slots PCIe 3.0 x 8:- 2 slots (PCIE1 switch with PCIE2: x8/x8 ; PCIE3 switch with PCIE4: x8/x8 ) Storage SATA Controller:- Intel^® C612 : 10 x SATA3 6.0 Gb/s, support RAID 0, 1, 5, 10 (SSATA_3 port is shared with M.2 Socket) Additional Storage Controller:- Marvell 9172: 2 x SATA3 6Gbps, support RAID 0, 1
1 (supports M.2 SATA3 6.0 Gb/s module and M.2 PCI Express module up to Gen3 x4 (32 Gb/s)) Ethernet Interface:- 1000 /100 /10 Mbps by Intel^® i210 LAN Controller:- 4 x RJ45 GLAN by Intel^® i210
- 1 x RJ45 Dedicated IPMI LAN port
- Supports Wake-On-LAN
- Supports Energy Efficient Ethernet 802.3az
- Supports Dual LAN with Teaming function Management BMC Controller:- ASPEED AST2400 IPMI Dedicated LAN:- 1 x Realtek RTL8211E for dedicated management GLAN Features:- Watch Dog

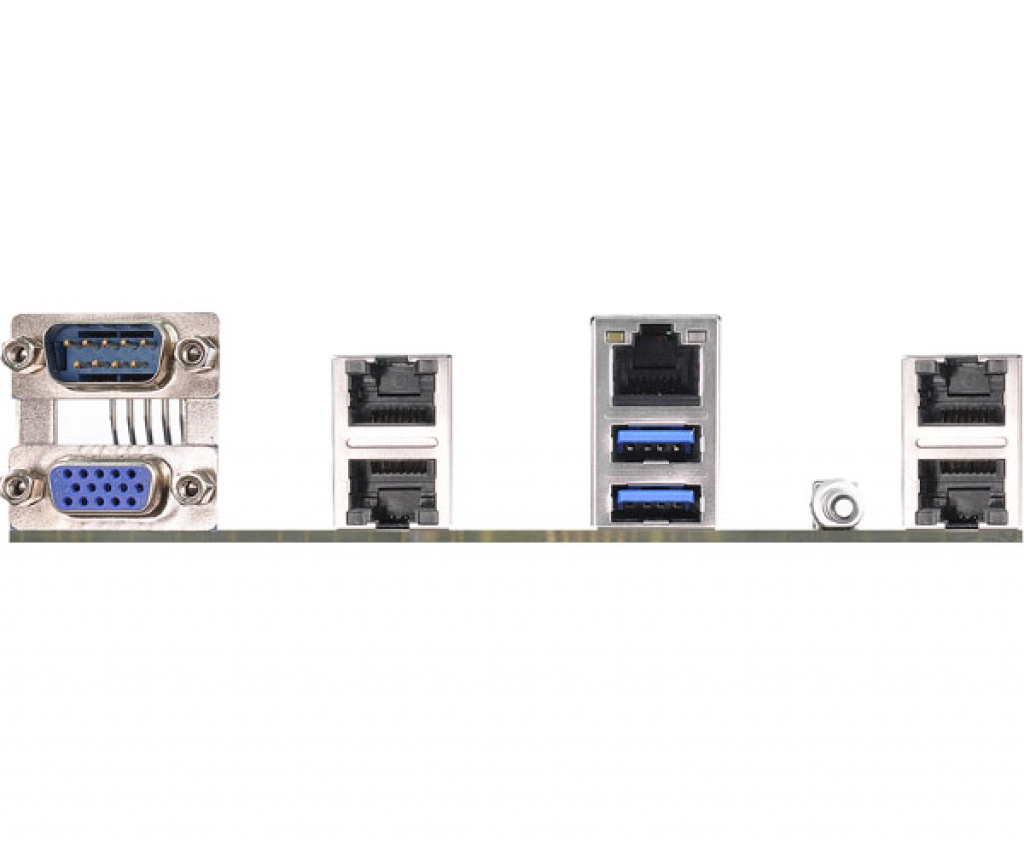

- NMI Graphics Controller:- ASPEED AST2400 VRAM:- DDR3 16MB Rear Panel I/O VGA Port:- 1 x D-Sub USB 3.0 Port:- 2 Lan Port:- 4 + 1 (IPMI) Lan port (RJ45)
- LAN Ports with LED (ACT/LINK LED and SPEED LED) Serial Port:- 1 (COM1) UID Button/UID LED:- 1 Internal Connector COM Port Header:- 1 (COM2) Auxiliary Panel Header:- 1 (includes chassis intrusion, location button & LED, front LAN LED) TPM Header:- 1 IPMB Header:- 1 Buzzer:- 1 Fan Header:- 2x CPU Fan, 6x system Fan (4-pin) ATX Power:- 1 (24-pin) + 2 (8-pin) USB 3.0 Header:- 1 ( support 2 USB 3.0) USB 2.0 Header:- 1 ( support 2 USB 2.0) Type A USB 3.0 Port:- 1 System BIOS BIOS Type:- 128Mb AMI UEFI Legal BIOS BIOS Features:- Plug and Play (PnP)
- ACPI 2.0 Compliance Wake Up Events
- SMBIOS 2.8.1 Support
- ASRock Rack Instant Flash Hardware Monitor Temperature:- Motherboard Temperature Sensing
- CPU1 Temperature Sensing
- CPU2 Temperature Sensing Fan:- CPU/Rear/Front Fan Tachometer
- CPU Quiet Fan (Allow CPU Fan Speed Auto-Adjust by CPU Temperature)
- CPU/Rear/Front Fan Multi-Speed Control Voltage:- Voltage Monitoring: +12V, +5V, +3.3V, CPU Vcore, DRAM, 1.05V_PCH, +BAT, 3VSB, 5VSB Support OS OS:Microsoft Windows
- Server 2008 R2 SP1 (64 bit)
- Server 2012 (64 bit)
- Server 2012 R2 (64 bit)
Linux
- RedHat Enterprise Linux Server 5.10/6.5 (32 / 64 bit)
- CentOS 5.10 / 6.5 (32 / 64 bit) - SUSE Enterprise Linux Server 11 SP3 (32 / 64 bit)
- FreeBSD 9.1 (32 / 64 bit) - Fedora core 19 (64 bit)
- Ubuntu 12.04.2 (64 bit) / 12.10 (64 bit)
Virtual - VMWare ESXi 5.5 (not supported for Marvell 9172) Environment Temperature:Operation temperature: 10°C ~ 35°C / Non operation temperature: -40°C ~ 70°C
