ATX, C602 chipset, 1x soc.2011, DDR3-8 DIMMs, 8xSATA 3G, 4xSATA 6G, 2xGLAN, IPMI, Audio

Supports Single Intel LGA 2011, Supports Intel Xeon Processor E5-1600/2600/4600 & v2 Series; 8 x DIMM DDR3 1866/1600/1333/1066 LR / Registered /ECC/ UDIMM, max. 256GB; Intel C602 : 2 x SATA3 6.0 Gb/s, 8 x SATA2 3.0 Gb/s(4 from SATA ports, others from mini

MB Physical Status
Form Factor:	- ATX
Dimensions:	- 12'' x 9.6'' (30.5 cm x 24.4 cm)
Processor System
CPU:	- Intel® Xeon processor E5-1600/2600/4600 & v2 series - Supports Hyper-Threading Technology
Socket:	- Single Socket R (LGA2011)
Chipset:	- Intel® C602
System Memory
Capacity:	- 8x 240-pin DDR3 DIMM slots - Support up to 256GB DDR3 R/LR DIMM ; 64GB ECC/non-ECC unbuffered UDIMM
Type:	- Quad Channel DDR3 memory technology - Supports DDR3 1866/1600/1333/1066 R/LR ECC and UDIMM
Voltage:	- 1.5V, 1.35V
Expansion Slot
PCIe 3.0 x 16:	- 2 slots (PCIE2: x16x0 or x8/x8 with PCIE1, PCIE4: x16x0 or x8/x8 with PCIE3)
PCIe 3.0 x 8:	- 4 slots (PCIE1: x0/x8, PCIE3: x0/x8, PCIE5: x8/x4, PCIE6 : x0/x4)
PCIe 2.0 x 8:	- 1 slot (PCIE7: x2)
Storage
SATA Controller:	- Intel® C602 : 2 x SATA3 6.0 Gb/s, 8 x SATA2 3.0 Gb/s, support RAID 0, 1, 5, 10 and Intel® Rapid Storage 3.0, NCQ, AHCI and "Hot Plug" functions
Additional Storage Controller:	- Marvell SE9172: 2 x SATA3 6.0 Gb/s, support RAID 0, 1, NCQ, AHCI and "Hot Plug" functions
Audio
Audio Codec:	- 7.1 CH HD Audio with Content Protection (Realtek ALC892 Audio Codec) *To configure 7.1 CH HD Audio, it is required to use an HD front panel audio module and enable the multi-channel audio feature through the audio driver.
Ethernet
Interface:	- Gigabit LAN 10/100/1000 Mb/s
LAN Controller:	- 2 x Intel® i210 - Supports Wake-On-LAN - Supports Energy Efficient Ethernet 802.3az - Supports Dual LAN with Teaming function - Supports PXE
Management
BMC Controller:	- ASPEED AST2300
IPMI Dedicated LAN:	- 1 x Realtek RTL8211E for dedicated management LAN
Features:	- Watch Dog - NMI
Graphics
Controller:	- ASPEED AST2300
VRAM:	- DDR3 16MB
Output:	- Supports D-Sub with max. resolution up to 1920x1200 @ 60Hz

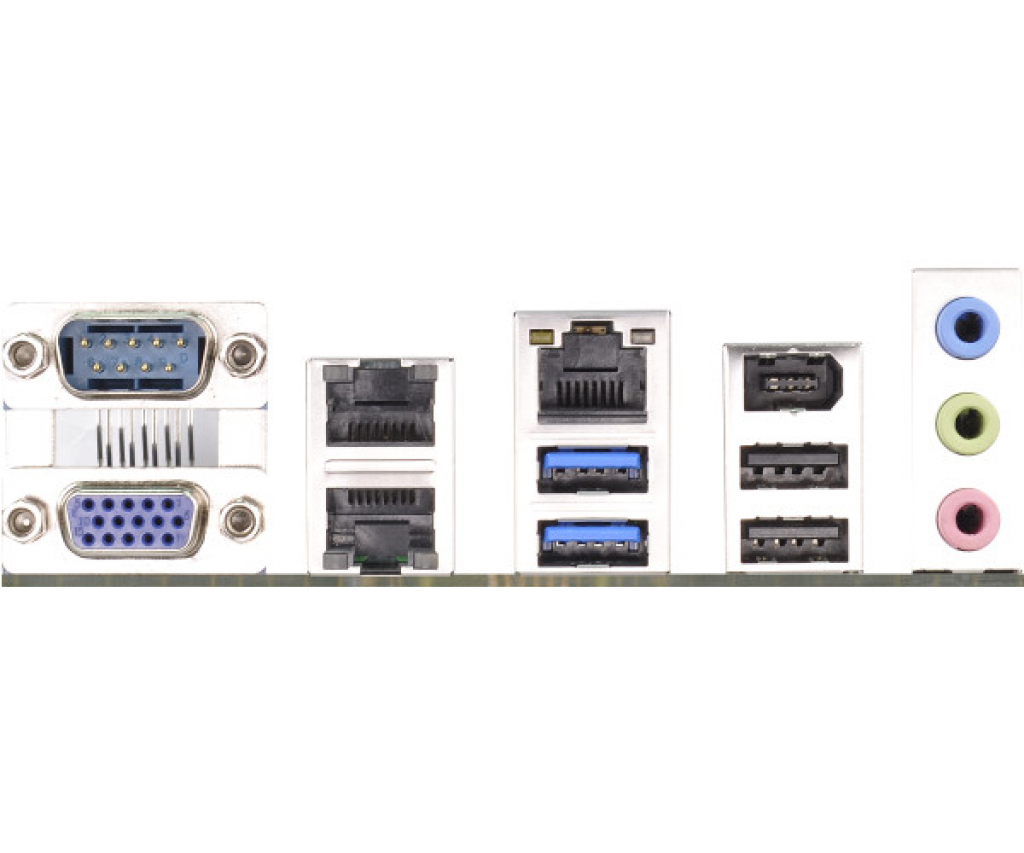

Rear Panel I/O
VGA Port:	- 1 x D-Sub
USB 2.0 Port:	- 2
USB 3.0 Port:	- 2
Lan Port:	- 2 x RJ45 Gigabit Ethernet LAN ports - 1 x RJ45 Dedicated IPMI LAN port - LAN Ports with LED (ACT/LINK LED and SPEED LED)
Serial Port:	- 1 (COM1)
Audio:	- 3 Jack
1394:	- 1
Internal Connector
SPDIF Header:	- 1
COM Port Header:	- 1 (COM2)
Auxiliary Panel Header:	- 1 (includes chassis intrusion, location button & LED, front LAN LED)
TPM Header:	- 1
Thermal Sensor Header:	- 1
IPMB Header:	- 1
Buzzer:	- 1
Fan Header:	- 5 x 4-pin
ATX Power:	- 1 (24-pin) + 1 (8-pin)
USB 2.0 Header:	- 1 (each support 2 USB 2.0)
Type A USB 2.0 Port:	- 1
USB 3.0 Header:	- 1 (each support 2 USB 3.0)
1394 Header:	- 1
Front Panel:	- 1
Front Audio Panel:	- 1
Speaker:	- 1
Dr. Debug with LED:	- 1
System BIOS
BIOS Type:	- 64Mb AMI UEFI Legal BIOS
BIOS Features:	- Plug and Play (PnP) - ACPI 1.1 Compliance Wake Up Events - SMBIOS 2.3.1 Support - DRAM Voltage Multi-adjustment - ASRock Instant Flash
Hardware Monitor
Temperature:	- CPU Temperature Sensing - System Temperature Sensing
Fan:	- CPU/Rear/Front Fan Tachometer - CPU Quiet Fan (Allow CPU Fan Speed Auto-Adjust by CPU Temperature) - CPU/Rear/Front Fan Multi-Speed Control
Voltage:	- Voltage Monitoring: CPU1/2, DRAM1/2, VCCM, VCCSA1/2, 3V/5V/ 12V, +1.05V_PCH, +BAT, 3VSB, 5VSB
Support OS
OS:	Microsoft Windows - Windows 7 ( 32 / 64 bit) - Windows 8 ( 32 / 64 bit) - Windows 8.1 ( 32 / 64 bit) - Server 2008 R2 (64 bit) - Server 2012 (64 bit) - Server 2012 R2 (64 bit) Linux - RedHat Enterprise Linux Server 5.9/6.4 (32 / 64 bit) - CentOS 5.9 / 6.4 (32 / 64 bit) - SUSE Enterprise Linux Server 11 SP3 (32 / 64 bit) - FreeBSD 9.1 (32 / 64 bit) - Fedora core 19 (64 bit) - UBuntu 12.04.2 (64 bit) / 12.10 (64 bit) Virtual - VMWare ESXi 5.5 (Marvell SE9172 has no driver can support VMWare)
Environment
Temperature:	- Operation temperature: 10°C ~ 35°C / Non operation temperature: -40°C ~ 70°C

The specification is subject to change without notice in advance. The brand and product names are trademarks of their respective companies. Any configuration other than original product specification is not guaranteed.
