ATX, C216 chipset, 1x soc.1155, DDR3-4 DIMMs, 6xSATA 6G, 2xGLAN, no IPMI, Audio

Premium Gold Caps; Digi Power Design, 8 + 4 Power Phase Design; Supports Dual Channel DDR3 1600; 2 x PCIe 3.0 x16 Slots, 1 x PCIe 2.0 x16 Slot, Supports AMD 3-Way CrossFireX; Supports Broadcom Dual PCIE GLAN; 8 USB 3.0 (2 Front, 6 Rear), 6 SATA3, 1 eSATA3
MB Physical Status Form Factor:- ATX Dimensions:- 12'' x 9.6'' (30.5 cm x 24.4 cm) Processor System CPU:- Single socket H2 (LGA 1155) supports Intel^® 3^rd and 2^nd Core™ i7 / i5 / i3 and Pentium / Celeron and Intel^® Xeon E3-1200 & v2 Series
- Supports IntelK-Series CPU
- Supports Hyper-Threading Technology
- Supports IntelTurbo Boost 2.0 Technology Socket:- Single socket H2 (LGA1155) Power Design:- 8 + 4 Power Phase Design Chipset:- Intel^® C216 System Memory Capacity:- 4 x 240-pin DDR3 DIMM slots
- Support up to 32GB, un-buffered DIMM Type:- Dual Channel DDR3 1600/1333 UDIMM and ECC UDIMM
- Supports DDR3 1600/1333 Voltage:- Supports 1.35V to 1.60V Expansion Slot PCIe 3.0 x 16:- 2 slots ( PCIE2/PCIE4 : x16/x0 or x8/x8 mode) PCIe 2.0 x 16:- 1 slot (PCIE5: x4 mode) PCIe 2.0 x 1:- 2 slots PCI:- 2 slots Storage SATA Controller:- IntelC216 : 2 x SATA3 6.0 Gb/s, 4 x SATA2 3.0Gb/s Additional Storage Controller:- ASMedia ASM1061: 4 x SATA3 6.0 Gb/s Audio Audio Codec:- ALC892 Ethernet Interface:- Gigabit LAN 10/100/1000 Mb/s LAN Controller:- 2 x Broadcom BCM57781
- Supports Wake-On-LAN
- Supports Energy Efficient Ethernet 802.3az
- Supports Dual LAN with Teaming function
- Supports PXE Graphics Controller:- IntelHD Graphics Built-in Visuals and the VGA outputs can be supported only with processors which are GPU integrated

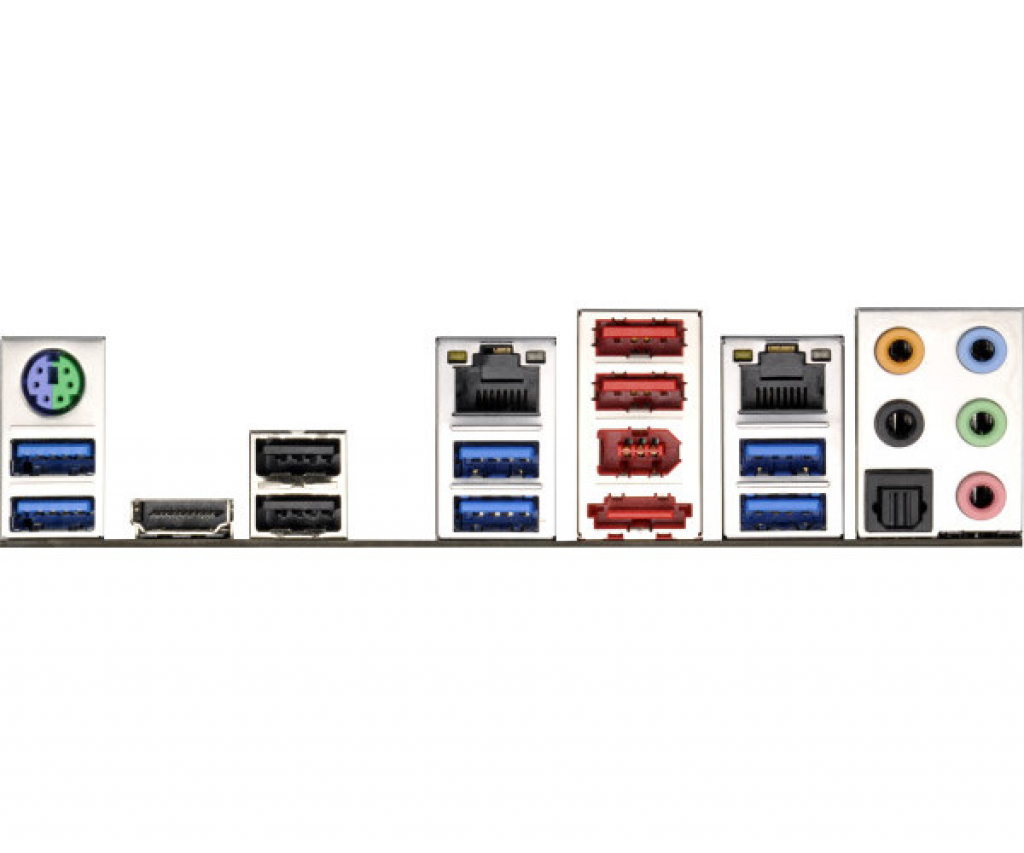

VRAM:- Max. shared memory 1760MB Output:- Supports D-Sub with max. resolution up tomax. 1920x1200 @ 60Hz Rear Panel I/O PS/2 KB/Mouse:- 1 VGA Port:- 1 x HDMI USB 2.0 Port:- 4 USB 3.0 Port:- 6 eSATA Port:- 1 Lan Port:- 2 x RJ45 Gigabit Ethernet LAN ports
- LAN Ports with LED (ACT/LINK LED and SPEED LED) Audio:- HD Audio Jack: Rear Speaker / Central / Bass / Line in / Front Speaker / Microphone 1394:- 1 SPDIF:- 1 Internal Connector IR Header:- 1 COM Port Header:- 1 (COM1) Power LED Header:- 1 Chassis Intrusion Header:- 1 Auxiliary Panel Header:- 1 (include chassis intrusion, front LAN LED) Fan Header:- 5 (2 x 4-pin, 3 x 3-pin) ATX Power:- 1 (24-pin) + 1 (8-pin) USB 3.0 Header:- 1 (each support 2 USB 3.0) USB 2.0 Header:- 3 (each support 2 USB 2.0) 1394 Header:- 1 Front Panel:- 1 Dr. Debug with LED:- 1 System BIOS BIOS Type:- 64Mb AMI UEFI Legal BIOS with GUI support BIOS Features:- ACPI 1.1 Compliance Wake Up Events
- SMBIOS 2.3.1 Support
- CPU Core, IGPU, DRAM, 1.8V PLL, VTT, VCCSA Voltage Multi-adjustment Hardware Monitor Temperature:- CPU Temperature Sensing
- Chassis Temperature Sensing Fan:- CPU/Chassis/Power Fan Tachometer
- CPU Quiet Fan (Allow Chassis Fan Speed Auto-Adjust by CPU Temperature)
- CPU/Rear/Front Fan Multi-Speed Control Voltage:- Voltage Monitoring: +12V, +5V, +3.3V, CPU Vcore Support OS OS:- Microsoft Windows 8 / 8 64-bit / 7 / 7 64-bit compliant Feature Unique Features:- ASRock Instant Flash Environment Temperature:- Operation temperature: 10єC ~ 35єC / Non operation temperature: -40єC ~ 70єC
