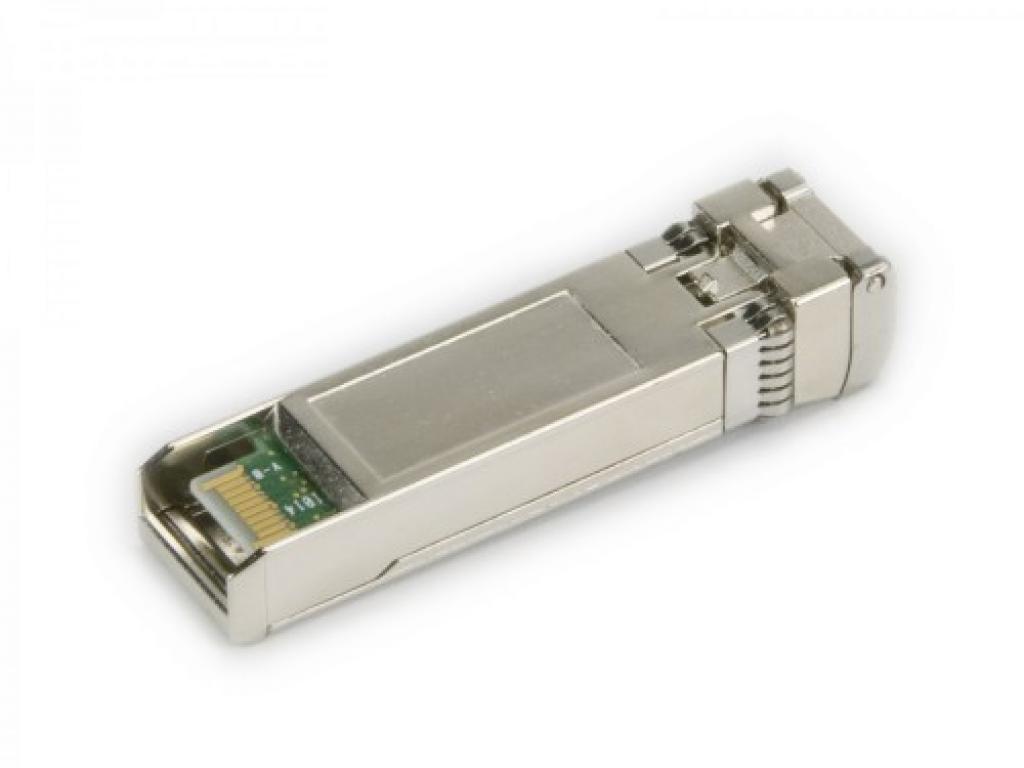

SFP Модул SM AOC-E10GSFPSR OPTI MOD 10G

SM AOC-E10GSFPSR OPTI MOD 10G

• Hot-pluggable SFP+ footprint

• Supports rate selectable 1.25Gb/s or 9.95 to 10.3Gb/s bit rates

• Power dissipation

• RoHS 6/6 compliant (lead free)

• Commercial temperature range 0°C to 70°C

• Single 3.3 Vdc power supply

• Max. link length 300m on 2000MHz-km MMF

• Ucooled 850nm VCSEL laser

• Receiver limiting electrical interface

• Duplex LC connector

• Built-in digital diagnostic functions

• Network Standards Physical Layer Interface:

   - 1000BASE-SX 1G Ethernet

   - 10GBASE-SR 10G Ethernet



• SFP+ Module Specifications:

   - Electrical interface: SFF-8431 Rev. 4.1

   - I²C Register interface: SFF-8472 Rev. 1.02

   - Mechanical: SFF-8432 Rev. 5.0



• Supported Distance at 10G:

   - 300m with 50µm Fiber: OM3 2000 MHz-km

   - 82m with 50µm Fiber: OM2 500 MHz-km

   - 66m with 50µm Fiber: 400 MHz-km

   - 33m with 62.5µm Fiber: OM1 200 MHz-km

   - 26m with 62.5µm Fiber: 160 MHz-km



• Supported Distance at 1G:

   - >550m with 50µm Fiber: OM3 2000 MHz-km

   - 550m with 50µm Fiber: OM2 500 MHz-km

   - 500m with 50µm Fiber: 400 MHz-km

   - 275m with 62.5µm Fiber: OM1 200 MHz-km

   - 220m with 62.5µm Fiber: 160 MHz-km



• Environment Specifications:

   - Operating temperature: 0°C to 70°C case temperature
