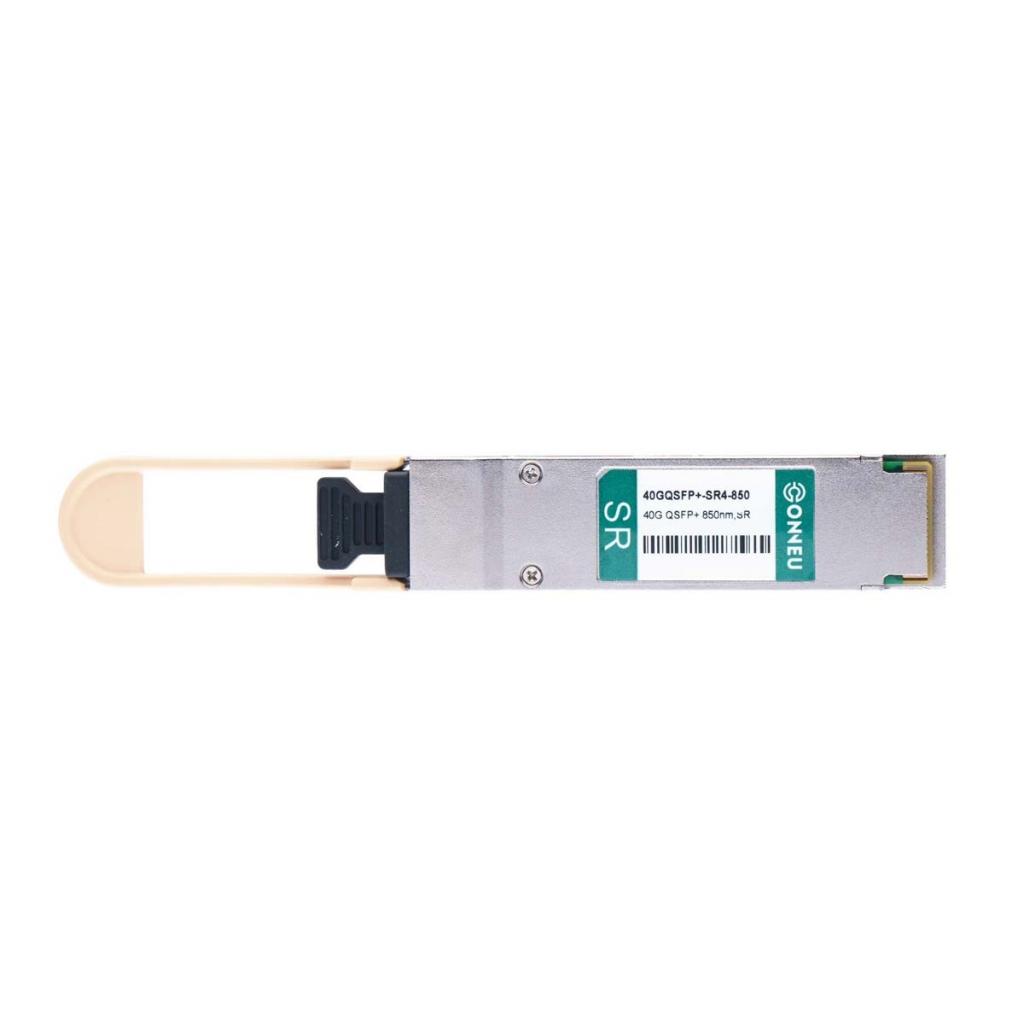

SFP Модул 40G QSFP+ SR4 850 nm 150 m MMF, MPO

40G QSFP+ SR4 850 nm 150 m MMF, MPO

Conneu 40GQSFP+-SR4-850 transceiver modules are designed for use in 40 Gigabit per second links over multimode fiber. They are compliant with the QSFP+ MSA and IEEE 802.3ba 40GBASE-SR4. The optical transmitter portion of the transceiver incorporates a 4-channel VCSEL (Vertical Cavity Surface Emitting Laser) array, a 4-channel input buffer and laser driver, control and bias blocks. The optical receiver portion of the transceiver incorporates a 4-channel PIN photodiode array, a 4-channel TIA array, a 4 channel output buffer, control blocks.

PRODUCT FEATURES

• High Channel Capacity: 40 Gbps per module
• Up to 11.1Gbps Data rate per channel
• Maximum link length of 100m links on OM3 multimode fiber Or 150m on OM4 multimode fiber
• High Reliability 850nm VCSEL technology
• Electrically hot-pluggable
• Compliant with QSFP+ MSA
• Case operating temperature range:0°C to 70°C
• Power dissipation < 1.5 W

APPLICATIONS

• 40G Ethernet
• Infiniband QDR
• Fiber channel

STANDARD

• Compliant to IEEE 802.3ba
• Compliant to SFF-8436
• RoHS Compliant
