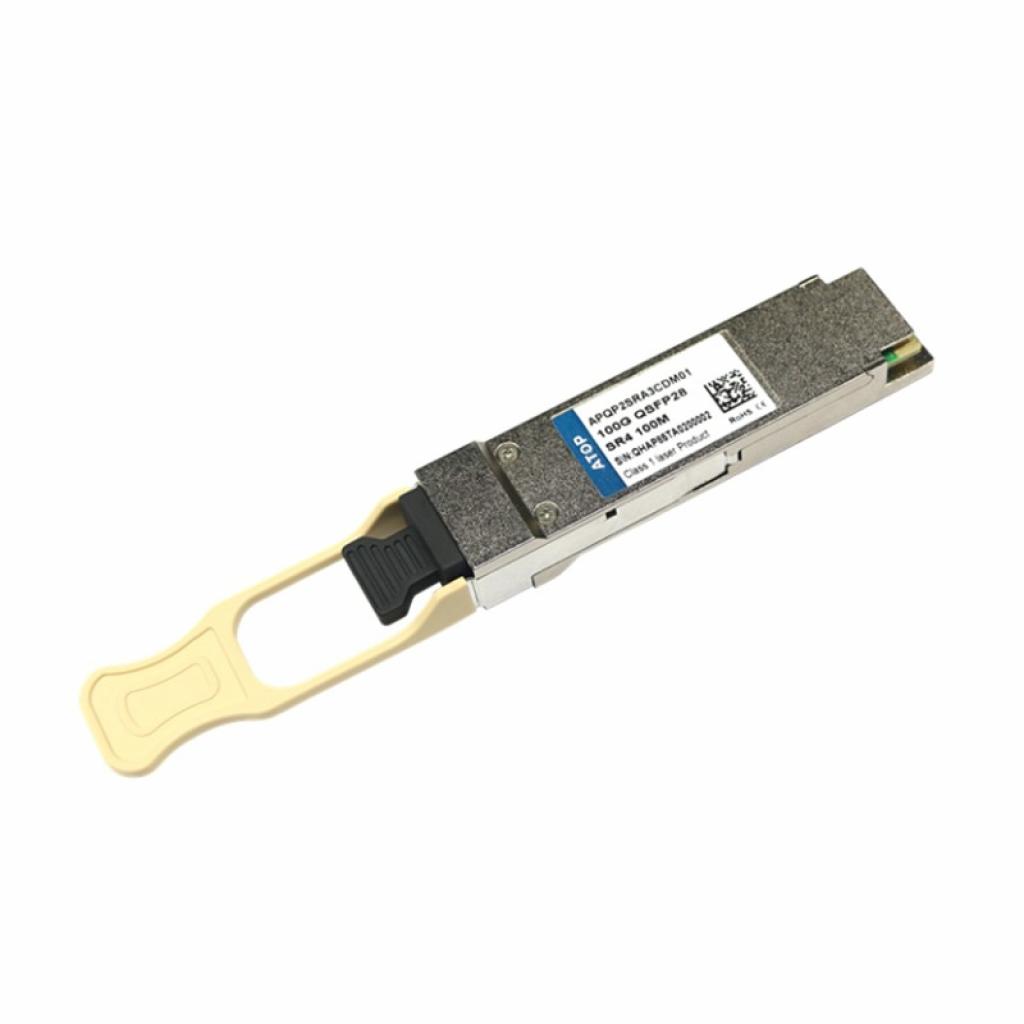

SFP Модул 103Gb-s QSFP28 SR4 оптичен модул

103Gb-s QSFP28 SR4 оптичен модул

• 4 channels full-duplex transceiver modules
• 4*25Gb/s 850nm VCSEL-based transmitter
• 4*25Gb/s electrical interface
• Power dissipation <3.0W
• Hot-pluggable QSFP28 form factor
• Single MPO connector receptacle
• Maximum link length of 70m on OM3 or 100m on OM4 multimode fiber (MMF)
• Operating case temperature 0°C to +70°C
• 3.3V power supply voltage
• MPO polarity – Type B
• Applications: 100GBASE-SR4 100G Ethernet

• An integrated transceiver module containing a micro-optic component and semiconductor material
• Can implement optical-electrical conversion and electrical-optical conversion
• The module is designed as a four-channel, pluggable, parallel, QSFP28 transceiver for 100Gbps fiber-communication
• Each channel can operate at 25Gbps up to 100m on OM4 fiber
• The operating wavelength is 850nm
• The optical interface uses an 12 fiber MTP(MPO) connector
• The electrical interface uses a 38 contact edge type connector
• This product is compliant to 100GBASE-SR4 of IEEE802.3bm standard and SFF-8436 specification
• Provides reliable long life, high performance and consistent service
