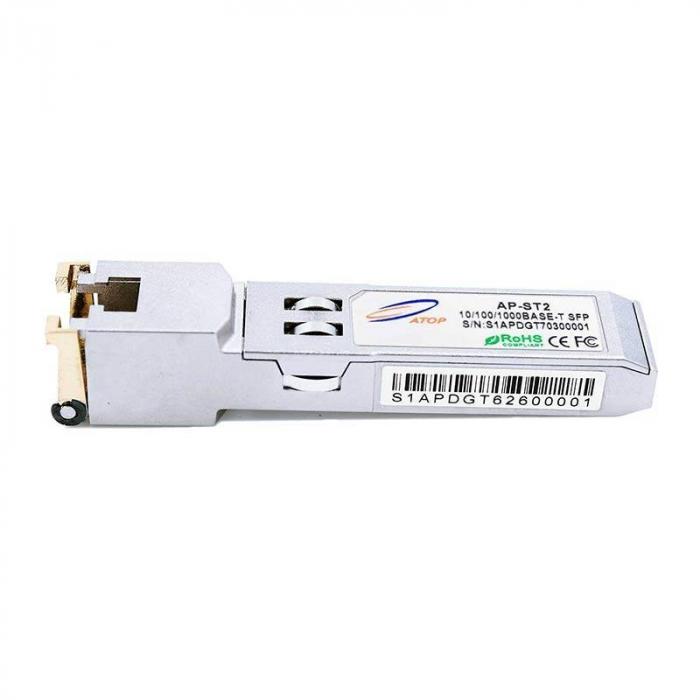

SFP Модул Медно SFP ATOP 10/100/1000 - RJ45 (AP-ST2)

Медно SFP ATOP 10/100/1000 - RJ45 (AP-ST2)

ATOP AP-ST2 Copper Small Form Pluggable (SFP) transceivers is high performance, cost effective module compliant with the Gigabit Ethernet and 1000- BASE-T standards as specified in IEEE 802.3-2002 and IEEE 802.3ab, which supporting 1000Mbps data- rate up to 100 meters reach over unshielded twisted-pair CAT 5 cable. The module supports 10/100/1000Mbps full duplex data-links with 5-level Pulse Amplitude Modulation (PAM) signals.

Product Features l Hot-pluAGable GBIC footprint l Extended case temperature range (0°C to +85°C ) l Fully metallic enclosure for low EMI l Low power dissipation (1.05 W typical) l Compact RJ-45 connector assembly l Access to physical layer IC via 2-wire serial bus l 1000 BASE-T operation in host systems with SGMII interface Description: AP-GT1 1000BASE-T Copper GBIC transceivers are based on the GBIC Multi Source AAReement (MSA). They are compatible with the Gigabit Ethernet and 1000BASE-T standards as specified in IEEE Std 802.32. The 1000BASE-T physical layer IC (PHY) can be accessed via I2C, allowing access to all PHY settings and features. The AE-GB-G uses the GBIC’s RX_LOS pin for link indication, and 1000BASE-X auto-negotiation should be disabled on the host system. The AE-GB-G is compatible with 1000BASE-X auto-negotiation, but does not have a link indication feature(RX_LOS is internally ARounded). Standards:Compatible with GBIC specification (SFF-8053), Rev 5.5Compatible with IEEE 802.3zCompatible with FDA 21 CFR 1040.10 and 1040.11, Class IGeneral Specifications
