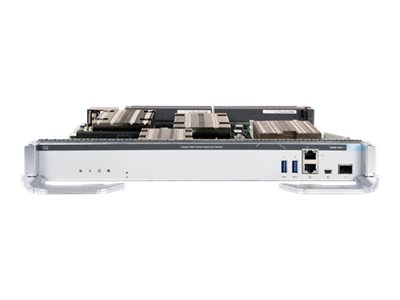

CISCO Catalyst 9600 Series Redundant Supervisor 1 Module
| продукт: | |
| Име на продукта: | CISCO Catalyst 9600 Series Redundant Supervisor 1 Module |
| Описание: | Cisco Supervisor Engine 1 Redundant - Control processor - GigE - 1U - plug-in module - for P/N: C9606R, C9606R= |
| EAN: | |
| Гаранция на производител: | Limited Lifetime Warranty |
| General | |
| Device Type: | Control processor |
| Height (Rack Units): | 1U |
| Width: | 38.1 cm |
| Height: | 4.32 cm |
| Weight: | 5.45 kg |
| Processor / Memory / Storage | |
| Processors Installed: | 2 GHz |
| RAM: | 16 GB |
| Flash Memory: | 16 GB |
| Hard Drive: | SSD 960 GB |
| Networking | |
| Form Factor: | Plug-in module |
| Connectivity Technology: | Wired |
| Data Link Protocol: | Ethernet, Fast Ethernet, Gigabit Ethernet |
| Network / Transport Protocol: | IPv6 |
| Routing Protocol: | OSPF, RIP, IS-IS, EIGRP, HSRP, VRRP, PIM-SM, PIM-SSM, MSDP, policy-based routing (PBR), MPLS, STP |
| Remote Management Protocol: | SNMP 1, RMON 1, RMON 2, SNMP 3, SNMP 2c, NETCONF, RESTCONF, gRPC, IPv6, YANG |
| Performance: | Per-slot switching capacity: 2.4 Tbps Switching capacity: 9.6 Tbps Forwarding rate: 3 Bbps IPv4 routing: 212000 IPv6 routing: 212000 |
| Capacity: | FNF entries (IPv4/IPv6): 294000 Virtual interfaces (VLANs): 4094 PVST instances: 1000 Switched virtual interfaces (SVIs): 1000 MAC addresses: 82000 Jumbo frame size: 9216 ARP entries: 90000 Multicast routes: 32000 QoS ACL scale: 16000 Security ACL scale: 27000 Packet buffer size: 108 MB |
| Features: | Spanning Tree Protocol (STP) support, Quality of Service (QoS), PXE support, Remote Switch Port Analyzer (RSPAN), Virtual Routing and Forwarding (VRF), Flexible NetFlow (FNF), Control plane protection (CoPP), Virtual Extensible LAN (VXLAN), Location ID Separation Protocol (LISP), Cisco Discovery Protocol, Zero-touch provisioning (ZTP), secure boot, Switched Port Analyzer (SPAN), Cisco StackWise Virtual, Security Group Tag (SGT) caching, Embedded Event Manager (EEM), Protocol Independent Multicast (PIM), First Hop Security (FHS), PVLAN support, Graceful Insertion and Removal (GIR) mode, Network-Based Application Recognition (NBAR) 2, Media Access Control Security (MACsec), image signing, Cisco Trust Anchor module |
| Encryption Algorithm: | 128-bit AES, 256-bit AES |
| Compliant Standards: | IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.3ae, IEEE 802.1s, IEEE 802.1ae, IEEE 802.3ba, IEEE 802.3by |
| Expansion / Connectivity | |
| Interfaces: | 1 x console - mini-USB 1 x console - RJ-45 2 x USB 3.0 1 x 1000Base-T (management) - RJ-45 1 x management - SFP+ |
| Miscellaneous | |
| MTBF: | 271,420 hours |
| Compliant Standards: | CISPR 24, EN 61000-3-2, EN 61000-3-3, EN55024, IEC 60950-1, EN 60950-1, UL 60950-1 Second Edition, CAN/CSA C22.2 No. 60950-1-07, NOM-019-SCFI-1998, EN 300 386 V1.6.1, AS/NZS 60950-1:2011, FCC CFR47 Part 15 B Class A, KN35, KN32 Class A, EN 55032 Class A, ICES-003:2016 issue 6 Class A, CISPR 32 Class A, TCVN 7189 Class A, TCVN 7317, CNS13438:2006 Class A, GB 4943-95 |
| Manufacturer Warranty | |
| Service & Support: | Limited warranty - lifetime |
| Environmental Parameters | |
| Min Operating Temperature: | -5 °C |
| Max Operating Temperature: | 45 °C |
| Humidity Range Operating: | 10 - 95% (non-condensing) |
| Compatibility Information | |
| Designed For: | P/N: C9606R, C9606R= |
