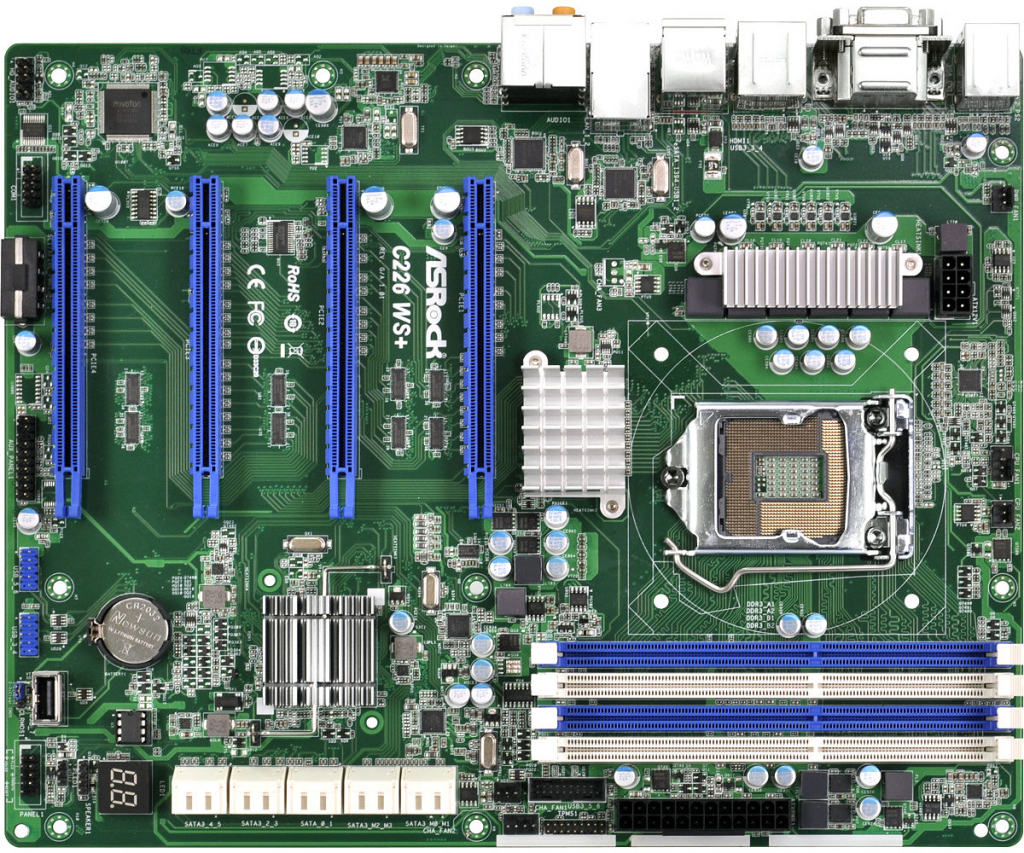

Сървърен компонент ATX, C226 chipset, 1x soc.1150, DDR3-4 DIMMs, 10xSATA 6G, 2xGLAN, no IPMI, Audio

ATX, C226 chipset, 1x soc.1150, DDR3-4 DIMMs, 10xSATA 6G, 2xGLAN, no IPMI, Audio

Supports New 4th and 4th Generation Intel XeonE3-1200 v3/ Core™ i7/i5/i3/Pentium/Celeron Processors (Socket 1150); 4-DIMM DDR3 1600/1333 ECC & UDIMM, max. 32GB; 4 x PCIe 3.0 x16; 6 x SATA3 by Intel C226 support RAID 0,1,5,10; 4 x SATA3 by Marvell 9172 sup

MB Physical StatusForm Factor- ATXDimensions- 12'' x 9.6'' (30.5 cm x 24.4 cm)Processor SystemCPU- Supports New 4th and 4th Generation Intel^® XeonE3-1200 v3/ Core™ i7/i5/i3/Pentium/Celeron Processors (Socket 1150)
- Supports Hyper-Threading Technology
- Supports Intel^® Turbo Boost 2.0 TechnologySocket- Single socket H3 (LGA1150)Chipset- Intel^® C226System MemoryCapacity- 4 x 240-pin DDR3 DIMM slots
- Support up to 32GB, un-buffered DIMMType- Dual Channel DDR3 1600/1333 UDIMM and ECC UDIMM
- Supports DDR3 1600/1333Voltage- 1.35V, 1.5VExpansion SlotPCIe 3.0 x 16- 4 slot (PCIE1,PCIE3,PCIE5,PCIE7: x16/x0/x16/x0 or x8/x8/x8/x8 mode)StorageSATA Controller- Intel^® C226 : 6 x SATA3 6.0 Gb/sAdditional Storage Controller- 2 x Marvell SE9172 : 4 x SATA3 6.0 Gb/s (1 share with eSATA)AudioAudio Codec- ALC1150EthernetInterface- Gigabit LAN 10/100/1000 Mb/sLAN Controller- 2 x INTEL i210
- Supports Wake-On-LAN
- Supports Energy Efficient Ethernet 802.3az
- Supports Dual LAN with Teaming function
- Supports PXEGraphicsController- Integrated. DirectX 11, Pixel Shader 5.0Rear Panel I/OPS/2 KB/Mouse- 1VGA Port- 1 x HDMI + 1 x DVI-D + 1 x D-SubUSB 2.0 Port- 2USB 3.0 Port- 4eSATA Port- 1Lan Port- 2 x RJ45 Gigabit Ethernet LAN ports
- LAN Ports with LED (ACT/LINK LED and SPEED LED)Audio- 5 Jack: Rear Speaker / Central / Bass / Line in / Front Speaker / Microphone1394- 1SPDIF- 1Internal ConnectorCOM Port Header- 1 (COM1)Power LED Header- 1Auxiliary Panel Header- 1 (include chassis intrusion, front LAN LED)TPM Header- 1Fan Header- 6 (2 x 4-pin, 4 x 3-pin)ATX Power- 1 (24-pin) + 1 (8-pin)USB 3.0 Header- 1 (each support 2 USB 3.0)USB 2.0 Header- 2 (each support 2 USB 2.0)Type A USB 2.0 Port- 1HD Audio connector- 1Speaker- 1System BIOSBIOS Type- 64Mb AMI UEFI Legal BIOS with GUI supportBIOS Features- Plug and Play (PnP)
- ACPI 1.1 Compliance Wake Up Events
- SMBIOS 2.3.1 Support
- DRAM Voltage Multi-adjustment
- CPU Core, IGPU, DRAM, 1.8V PLL, VTT, VCCSA Voltage Multi-adjustmentHardware MonitorTemperature- CPU Temperature Sensing
- System Temperature SensingFan- CPU/Rear/Front Fan Tachometer
- CPU Quiet Fan (Allow Chassis Fan Speed Auto-Adjust by CPU Temperature)
- CPU/Rear/Front Fan Multi-Speed ControlVoltage- Voltage Monitoring: +12V, +5V, +3.3V, CPU VcoreSupport OSOSMicrosoft Windows
- Microsoft Windows 8 / 8 64-bit / 7 / 7 64-bit
- Microsoft Windows 2012 R2 64-bitFeatureUnique Features- ASRock Instant FlashEnvironmentTemperature- Operation temperature: 10єC ~ 35єC / Non operation temperature: -40єC ~ 70єC
