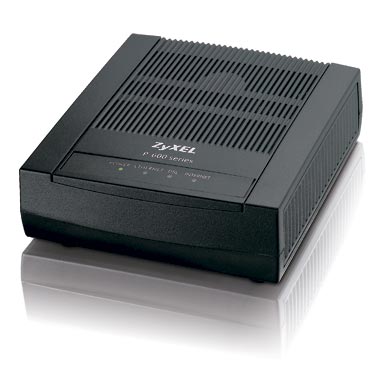

Рутер/Маршрутизатор Терминал ZyXEL P-660R-T1, ADSL 2+ Gateway, 1 LAN port, Annex A

System Specifications

ADSL Compliance

• Support Multi-Mode Standard (ANSI T1.413, Issue 2; G.dmt (G.992.1); G.lite (G992.2))
• EOC Specified in ITU-T G.992.1
• ADSL2 G.dmt.bis (G.992.3)
• ADSL2 G.lite.bis (G.992.4)
• ADSL2+ (G.992.5)
• Reach Extended ADSL (RE ADSL)

ATM Protocol

• ADSL Physical Connection ATM AAL5 (ATM Adaptation Layer Type 5)
• Support Multi-protocol over AAL5 (RFC1483/2684)
• Support VC-based and LLC-based Multiplexing
• Support up to 8 PVCs
• Support PPP over ATM AAL5 (RFC2364)
• PPP over Ethernet Support for DSL connection (RFC 2516)
• I.610 F4/F5 OAM Loop-back

Network Protocols

• IP Routing
• 802.1d Transparent Bridging
• IGMP v1&v2
• RIP-1/RIP-2
• ICMP
• TCP/UDP

IP Management

• DHCP Client/Server/Relay
• DNS Proxy
• Dynamic DNS
• UPnP support
• SUA/Multi-NAT Internet Sharing

Network Management

• FTP for Firmware and Configuration Upgrade/Backup
• Remote Management Control: Telnet, FTP, and Web
• SNMP support
• Built-in Diagnostic tools
• TR-069 compliance
• TR-064 compliance

Hardware Specifications

• ADSL port: RJ-11 port for Annex A or RJ-45 port for Annex B
• LAN port: RJ-45 port
• Power: 9 V DC & 0.6 A Switching

Physical Specifications

• Item weight: 165 g
• Item dimensions: 110 (W) x 107 (D) x 36 (H) mm
