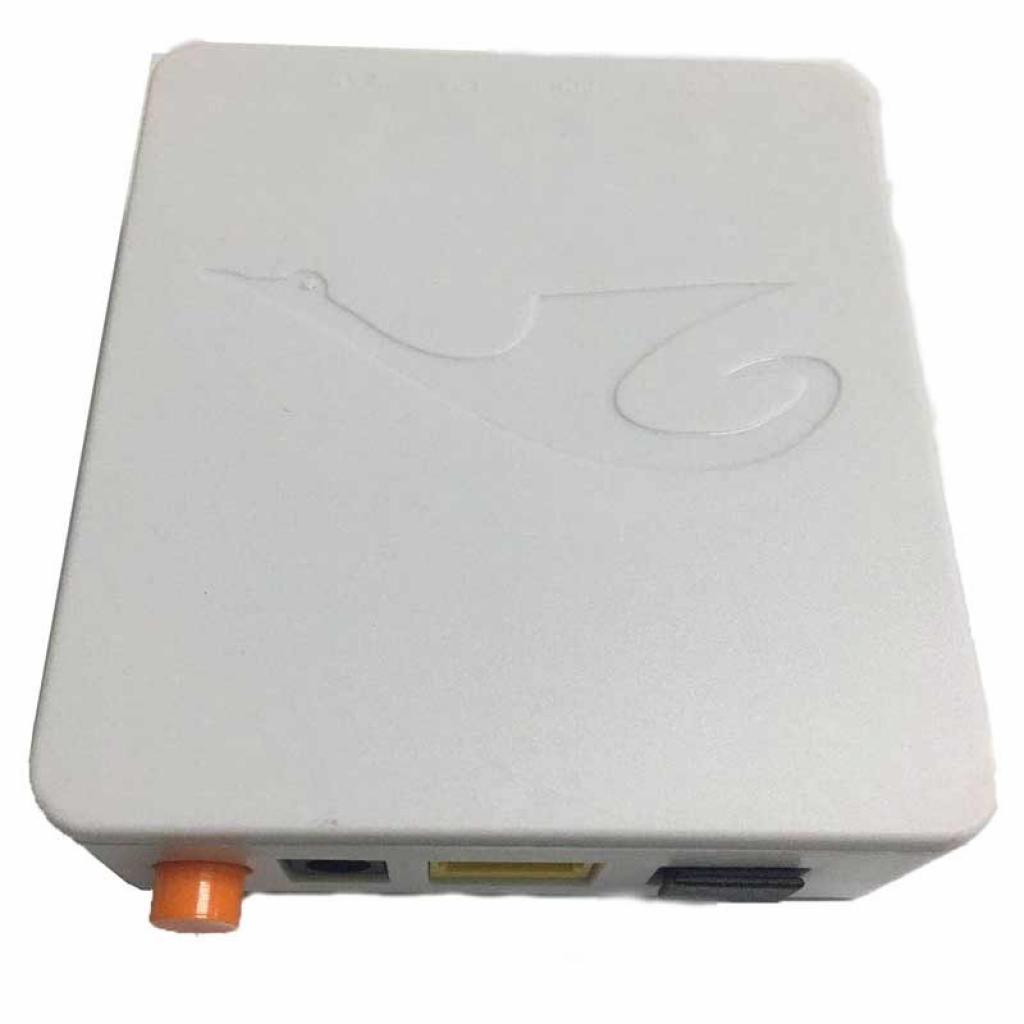

xPON ONU 1 порт - GPON и EPON, Huawei чипсет

GL-GE8011U-HZ ONT product fully complies with the ITU.984 standard，Carrier-grade equipment that is easy to operate, manage and maintain;It is a bridge home terminal device that realizes uwb access for home /SOHO users through XPON technology. structure, supporting the placement of desktop, wall hanging or placed in the corridor information box.

Product features:

• itu-.984 standard.
• Support Ethernet service layer two switching and line speed forwarding of upstream and downstream services.
• Support frame filtering and suppression, support standard 802.1q Vlan function, support Vlan conversion.
• Support 4094 vlans (802.1q), support dynamic bandwidth allocation function (DBA).
• Support remote reset and restart functions
• Support restore factory parameters function, support data encryption
• Support GPON, EPON access

Port characteristics:

The order from left to right is：

• PON port：Connect the source end OLT device via a fiber optic
• RJ45 port：The equipment is connected to the user side through twisted pair, and the rate is 10/100/1000m adaptive
• Power Interface：Connect external power supply
• Power switch button
• Reset Button:Returns the factory default. Press the fine needle into the hole for more than 8 seconds and the system will return to the factory default

Optical property:

• Support WDM single fiber bidirectional (single fiber three way) transmission
• Interface type: SC/PC >Maximum spectroscopic ratio: 1:32
• Rate: 2.5 Gbps / 1.25 Gbps >Transmission wavelength: 1310 nm
• Receiving wavelength: 1490 nm >Output optical power: -1~+4dBm
• Receiving sensitivity: < -26dbm >The maximum distance OLT to ONU is 20km

Other features：

Certification: in accordance with CE, FCC, ROHS and other standards

• EMC / EMI: Comply with VCCI Class B, FCC Part 15b standard
• Security：Comply with UL 60950 safety specification
• Lightning protection against surge voltage protection：Itu-t k. 21 standard

Physical property:

• Power supply: 12 v / 500 ma
• Power consumption: 6 w

Temperature:

• Operating temperature: 0 ~ 55℃
• Storage temperature: -30 ~ 60℃
• Relative humidity: 10 ~ 90% (non-condensing)
