Оптична кутия Оптична разпределителна кутия за 12 SC симплексни адаптера

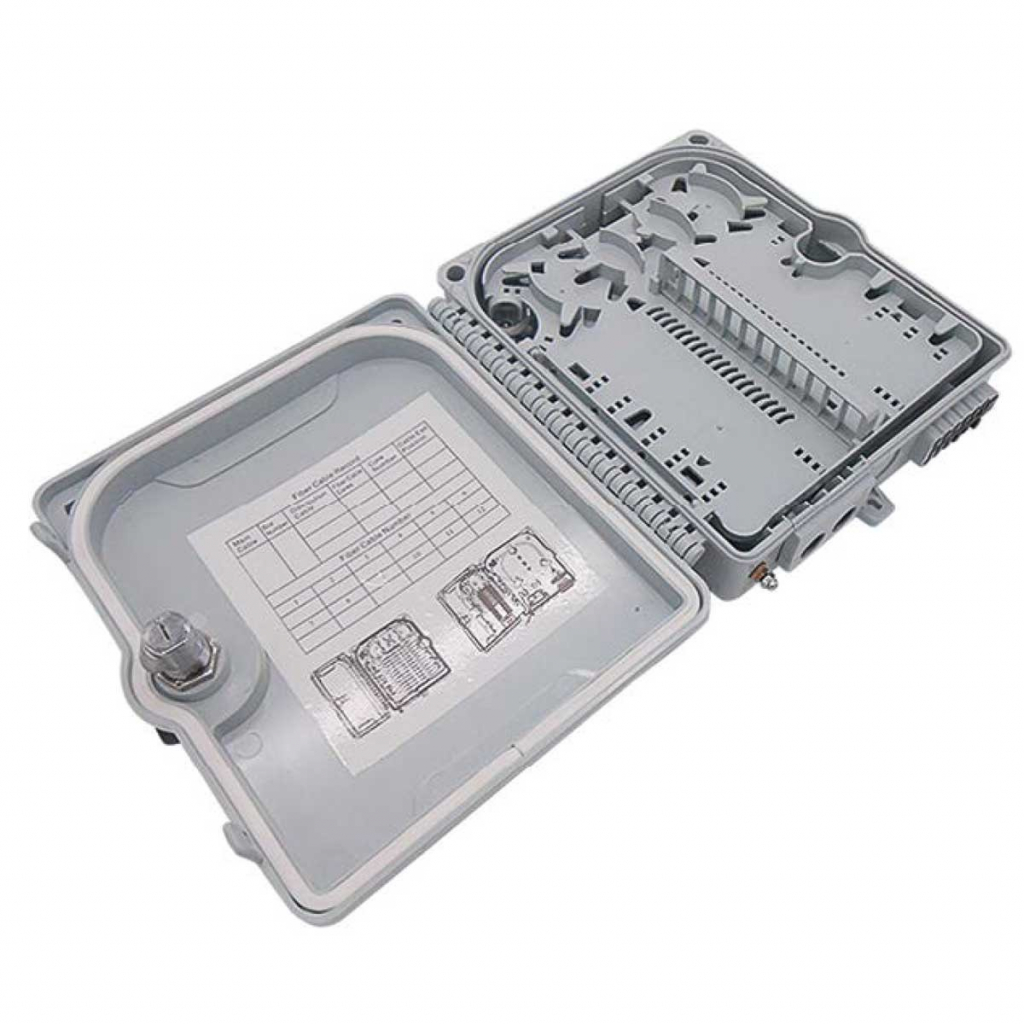

Оптична разпределителна кутия за 12 SC симплексни адаптера

• Стенна оптична разпределителна кутия за 12 SC единични адаптера
• Максимален капацитет - 12 адаптера
• Входове и диаметър на кабелите - 2 x 12 mm; 12 x 3 mm; 1 x 17 mm
• Размери на кутията - 225 x 200 x 65 mm
• Приложение - за външен монтаж, last mile
• Кутията може да бъде поръчана в 3 различни цвята - бял, сив и черен

This Fiber optical distribution box designed to terminate feeding optical cable and connect last mile cables as fiber optical cords, patch cords, pigtail cords according to capacity of distribution box. FODB can be applied in buildings, FTTx closets, poles, walls.

Useful design of splice tray and accessories allow be appropriate for 12 SC fiber adapters, or 12 splice protection sleeves. All mentioned optical network accessories could be fixed inside the box. Stainless steel ties of fiber box allow fixating feeder cable of different size, without slippage. Plastic hangers of telecommunication box allow fixating the feeding fibers by nylon ties. FODB has two transit inputs, which is not require to cut or terminate the optical cable before installation.

FODB is made of PC+ABS, PVC, which wet, dust, proof and outdoor or indoor usage. Wall-mounted type of installation is done by 3 galvanized screws of 38 × 4 size. Optical termination boxes contain 2 fixation brackets for cable wire, ground device, 12 splice protection sleeves, 12 nylon ties. Anti-vandal lock provided for security.

Light and pleasing in appearance, FODB has strength mechanical protection and easy maintenance. Provides easy users access or data access based on FTTH networks.
