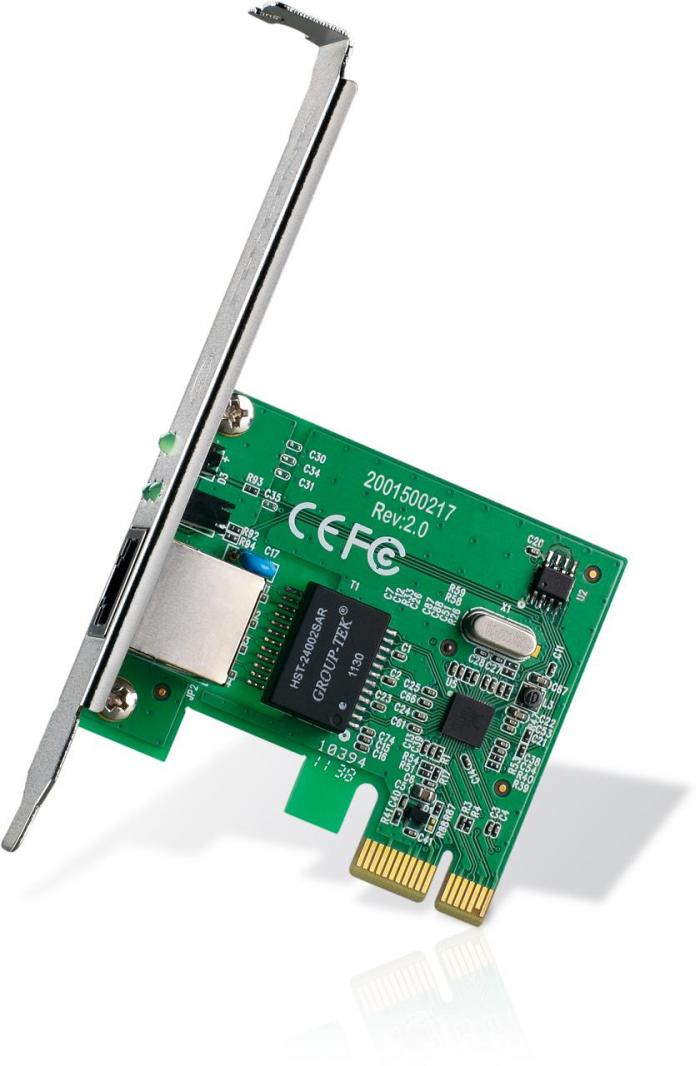

Мрежова карта TP-LINK TG-3468, PCI-ex, V4, low

Мрежова карта TP-LINK TG-3468, PCI-ex, V4, low

ТП Линк/TP-LINK/ Мрежова карта 10/100/1000 TG-3468

Стандарти и протоколи IEEE 802.3, 802.3u, 802.3ab, 802.3x, 802.1q, 802.1p CSMA/CD, TCP/IP
Интерфейс 32-bit PCIe 1.0a
Скорост на предаване 10/100Mbps за режим Half-Duplex 20/200/2000Mbps за режим Full-Duplex
Flow Control
IEEE 802.3x Flow Control (Full-Duplex)
Jumbo Frame 4k Bytes Port
10/100/1000Mbps RJ45
Network Media
10BASE-T: UTP category 3, 4, 5 cable (maximum 100m)
EIA/TIA-568 100? STP (maximum 100m)
100BASE-TX: UTP category 5, 5e cable (maximum 100m)
EIA/TIA-568 100? STP (maximum 100m)
1000Base-T: UTP category 5, 5e cable (maximum 100m)
LED Indicator
1000M Link/Act, 100M Link/Act, 10 Link/Act, Duplex
Safety & Emission
FCC, CE
Environment
Operating Temperature: 0?~40? (32?~104?)
Storage Temperature: -40?~70? (-40?~158?)
Operating Humidity: 10%~90% non-condensing
Storage Humidity: 5%~90% non-condensing
Операционна система
DOS/Win98SE/Me/2000/XP/Vista/Linux/Novell Netware
