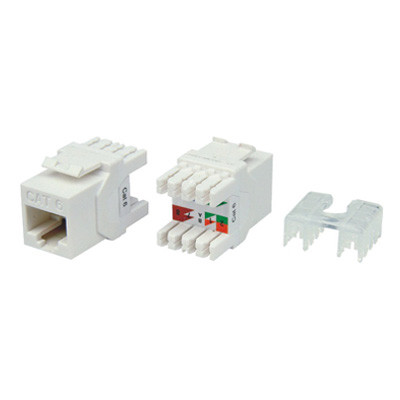

Мрежов аксесоар Кийстон жак, категория 6, неекраниран, Conneu, 1pc

Кийстон жак, категория 6, неекраниран, Conneu, 1pc

This series keystone jacks work together with high speed cables, cords and panels to provide performance beyond proposed Category 6 standards, a new feature of this series jack is a universal colored wiring label that eliminates the need for separate codes for T568A/B wiring scheme.

Features

• Available in Cat6, T568A/B wiring, meet or exceed TIA/EIA Cat6 requirements
• Housing: high temperature thermoplastic
• Compact jack design, 8 positions and 8 conductors
• Contact: phosphor bronze, phosphor bronze with 6 to 50μ" gold plate
• Accept 22-26 AWG solid with a insulation diameter of 0.4-0.6 mm
• Easy to be terminated, low attenuation loss and high return loss
• High reliability and superior performance

Construction

• Contact resistance (max): 100mΩ
• Insulation resistance (min): 500MΩ
• Return loss (dB): 5.2dB
