Мрежов продукт PoE инжектор Netis PI2, IEEE 802.3af, 15.4W

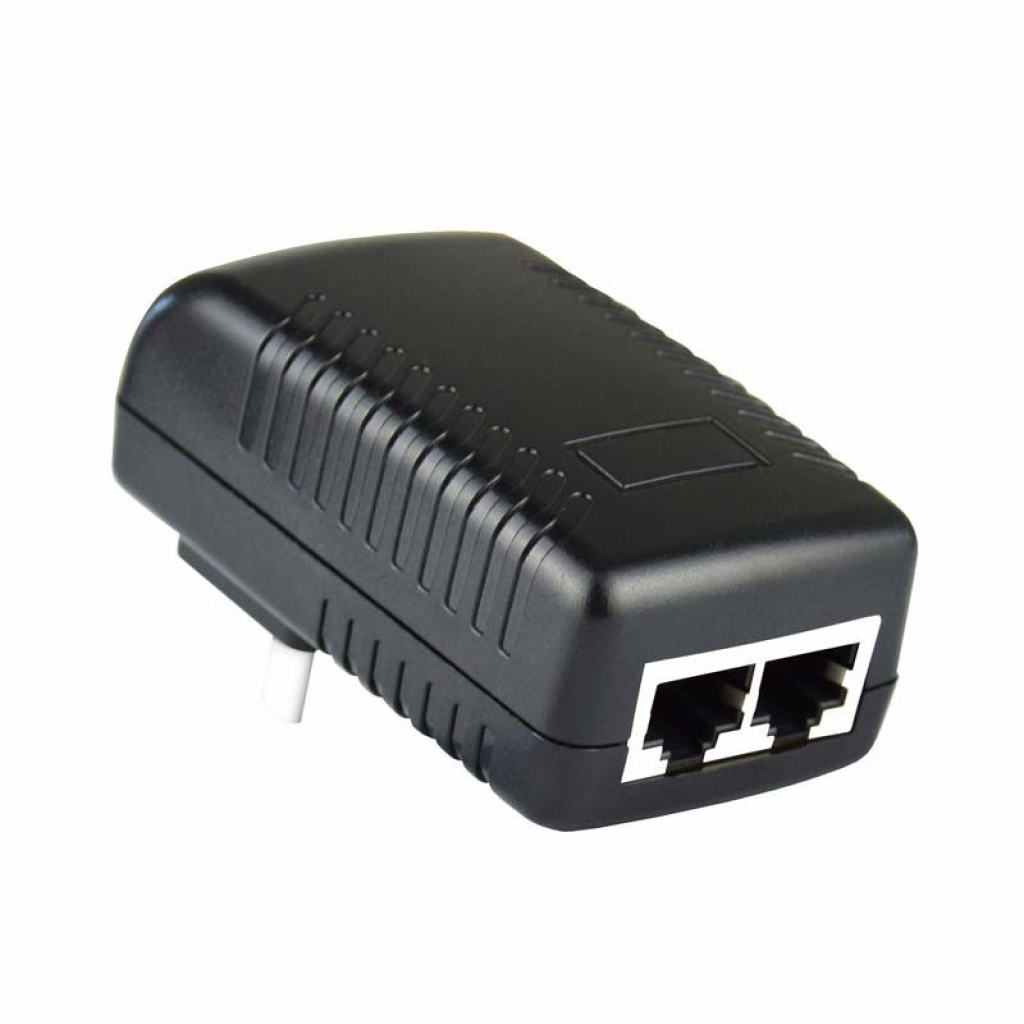

PoE инжектор Netis PI2, IEEE 802.3af, 15.4W

Netis PI2 PoE Injector fully complies with IEEE 802.3af standard, and can work with all IEEE 802.3af compliant PDs (Powered Devices) and PoE Splitter, to expand your network to where you wish to place PDs but has no power outlet. PDs include but are not limited to Access Point, IP Camera, VoIP Phones.

Features

• Power Supply: 15.4W (Max. 48VDC) Expands network to areas with no power lines or outlets
• Broad Application: Expands network to areas with no power lines or outlets, ideal for use with access points and IP cameras. Delivers power up to 100 meters (328 feet)
• Lighting Speed: Two Gigabit Ethernet ports for lightning-fast wired speeds
• Plug & Play: Auto-detects the required power supply, no configuration required

Specifications

• Input Voltage: Minimum 90V AC; Nominal 100-240V AC; Maximum 264V AC
• Input Frequency: Minimum 47Hz; Nominal 50-60Hz; Maximum 63Hz
• Input Current Limiting: Less than 1A, under minimum AC input and full load
• Standby Input Power: More than 0.3W
• DC Output Current: Min Current 0.1A; Rate Current 0.3A
• Temperature: Operating Ambient: 0℃~ 40℃; Non-operating Ambient: -10℃~ +85℃
• Humidity: Operating: 25%~90% relative humidity (Non- condensing); Non-operating: 10%~90% relative humidity (Non- condensing)
• Altitude: Operating: 5000 meters; Non-operating: 5000meters
• Standard: Meet GB4943.1-2011/ GB9254-2008/ GB17625.1-2012 standard requirement.
• Mechanical Dimensions: 83.5 x 46.7 x 31.45 (mm)
