Мрежов продукт Двупортов Gigabit PoE++ удължител за външен монтаж, вандалоустойчив

Двупортов Gigabit PoE++ удължител за външен монтаж, вандалоустойчив

• Doubles the maximum connection distance between PoE source and device from 100 m (328 ft.) to 200 m (656 ft.)
• Connects and powers two PoE devices, such as network cameras, wireless access points or VoIP phones, from a PSE port on a PoE injector or PoE switch
• Delivers up to 60 W to two connected PoE devices with per-port power up to 30 W
• Support: 10Base-T Cat5e UTP/STP RJ45, 8 pin/ 100Base-TX Cat5e UTP/STP RJ45, 8 pin/ 1000Base-T Cat5e UTP/STP RJ45, 8 pin
• One RJ45 10/100/1000 Mbps input port
• Two RJ45 10/100/1000 Mbps PoE output ports
• MAC address table: 2048 entries
• Buffer memory: 256 kB
• Backplane speed: 6 Gbps
• IEC ratings: IP67 (weatherproof) and IK10 (vandalproof metal housing)

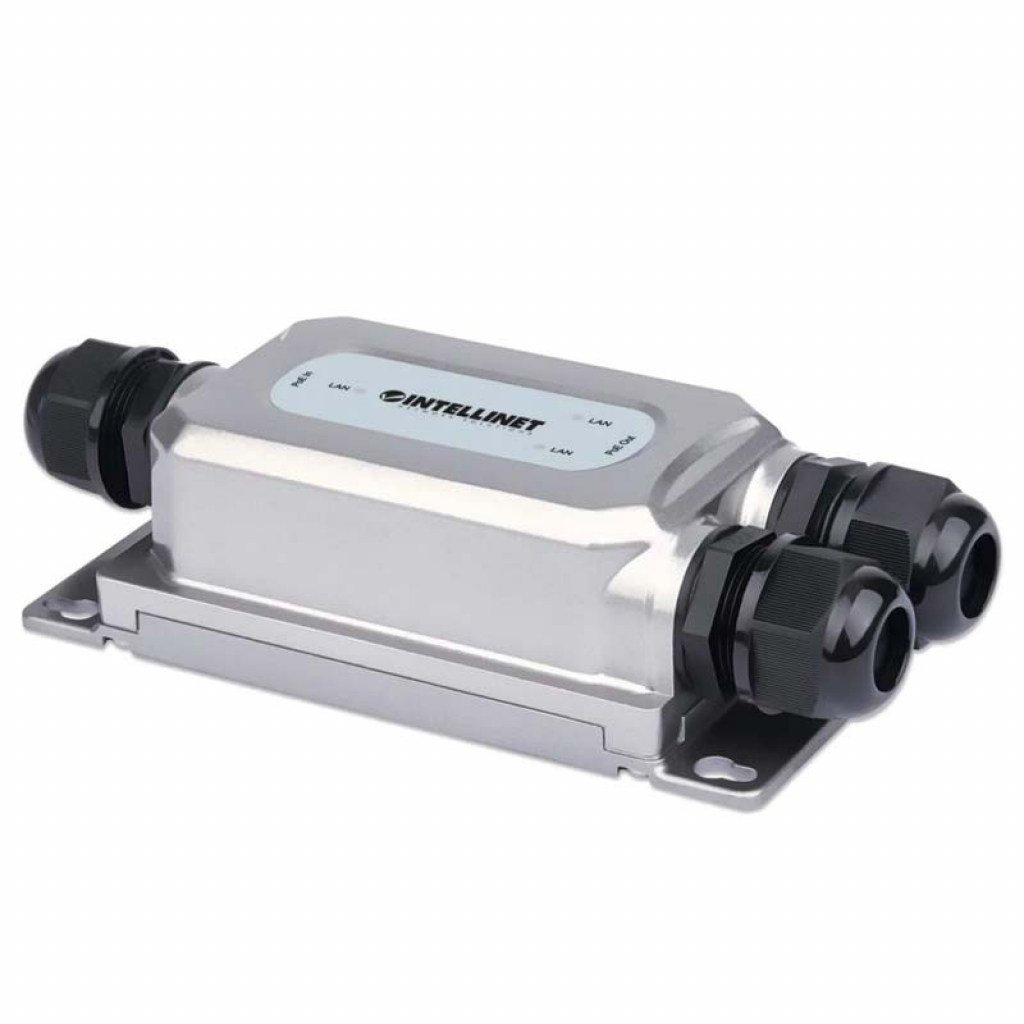

The Intellinet Network Solutions 2-Port Outdoor Vandalproof Gigabit PoE++ Extender adds up to 100 m (328 ft.) to the connection distance from a PoE source to one or two output devices via Cat5e or Cat6 cable. This PoE++ (4PPoE) extender does not need an additional power supply since it draws its power from the PoE input.

This PoE++ extender is the right power and data connector for its suitability to a wide variety of environments. Its weatherproof IP67 (waterproof and dustproof) rating, vast operating temperature range of -20 – 60°C (-4 – 140°F) and vandal-proof IK10 score make the Intellinet Network Solutions 2-Port Outdoor Vandalproof Gigabit Ultra PoE Extender able to withstand harsh conditions.

This Ultra PoE Extender supports the IEEE 802.3bt protocol over four pairs (4PPoE), which allows for a power input of 95 W. It forwards data at Gigabit speeds and offers up to 30 watts per port to a connected IEEE 802.3at- or IEEE 802.3af-compliant device. The cable length on both ends can be up to 100 meters (328 ft.), bringing the total distance between PoE source and device to 200 m (656 ft.).
