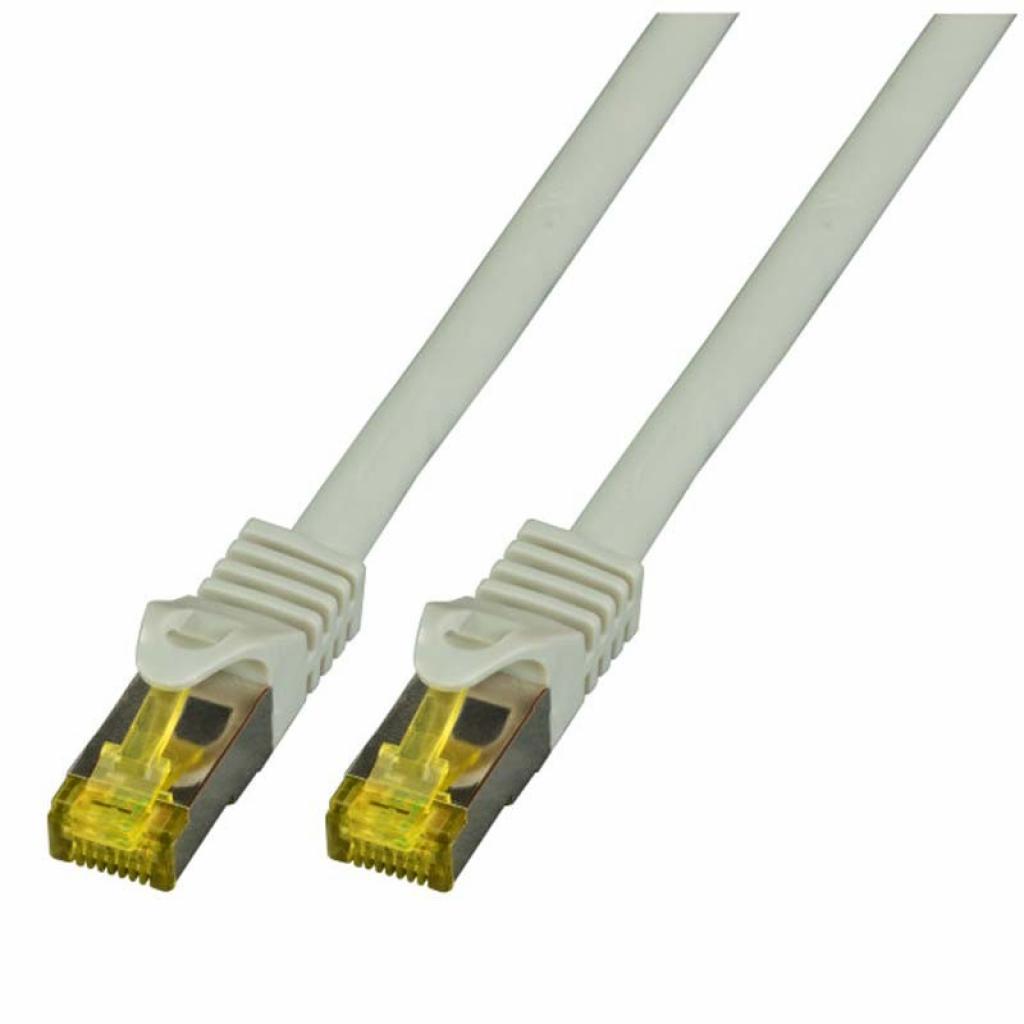

Медна пач корда RJ45 Пач корда S/FTP, Cat.6A, LSZH, Cat.7 Raw cable, сива

RJ45 Пач корда S/FTP, Cat.6A, LSZH, Cat.7 Raw cable, сива

The shielded Cat.6A RJ45 patch cable with ensures excellent performance for 10 Gigabit Ethernet applications. The moulded grommet captivates with its slim design and thus simplifies the insertion process in cramped conditions.

• Cross section 4 x 2 x AWG26 / 7
• Moulded grommet, slim design
• Length imprint on the boot

Product features

• Category: 6A (TIA)
• Type of connector connection 1: RJ45 8(8)
• Type of connector connection 2: RJ45 8(8)
• Connector type: RJ45 Standard yellow
• Contacts: Gold plated
• Pin assignment: 1:1
• Allocation: acc.TIA/EIA 568B
• Type: Shielded
• Length imprint: yes
• Anti-kink sleeve: moulded
• Color anti-kink sleeve: grey
• Locking lever: yes
• Mating cycles: ≥750
• Bending radius: >32,5 mm
• Conductive shield: Selected shield contact
• Raw cable: Cat.7
• Cable structure: S/FTP
• Cable construction: 4x2
• AWG-size/strands per core: 26/7
• Conductor Material: Copper
• Silicone-free: yes
• Jacket material: LSZH
• Color outer sheath: grey
• Outer diameter of the cable: 6.5 mm
• Flame-retardant: acc. IEC60332-1
• Halogen-free: acc. IEC60754-2
• Low smoke: acc. IEC61034
• Temperature range: -20 – 60 °C
• Impedance: 100 ±5 Ω
• Conductor resistance: DC146 Ω/km
• Loop resistance: 292 Ω/km
• Resistance unbalance: 5%
• Insulation resistance: 10 MΩ
• Contact resistance: 30 mΩ
• Test voltage: 1000 (V DC, 1min) core/core und core/screen
• POE class: PoE acc. to IEEE802.3af;PoE+ acc. to IEEE802.3at;4PPoE acc. to IEEE802.3bt
• Bandwidth: 500MHz
• Transmission: 10Gbit
• Connector: IEC 60603-7-51
