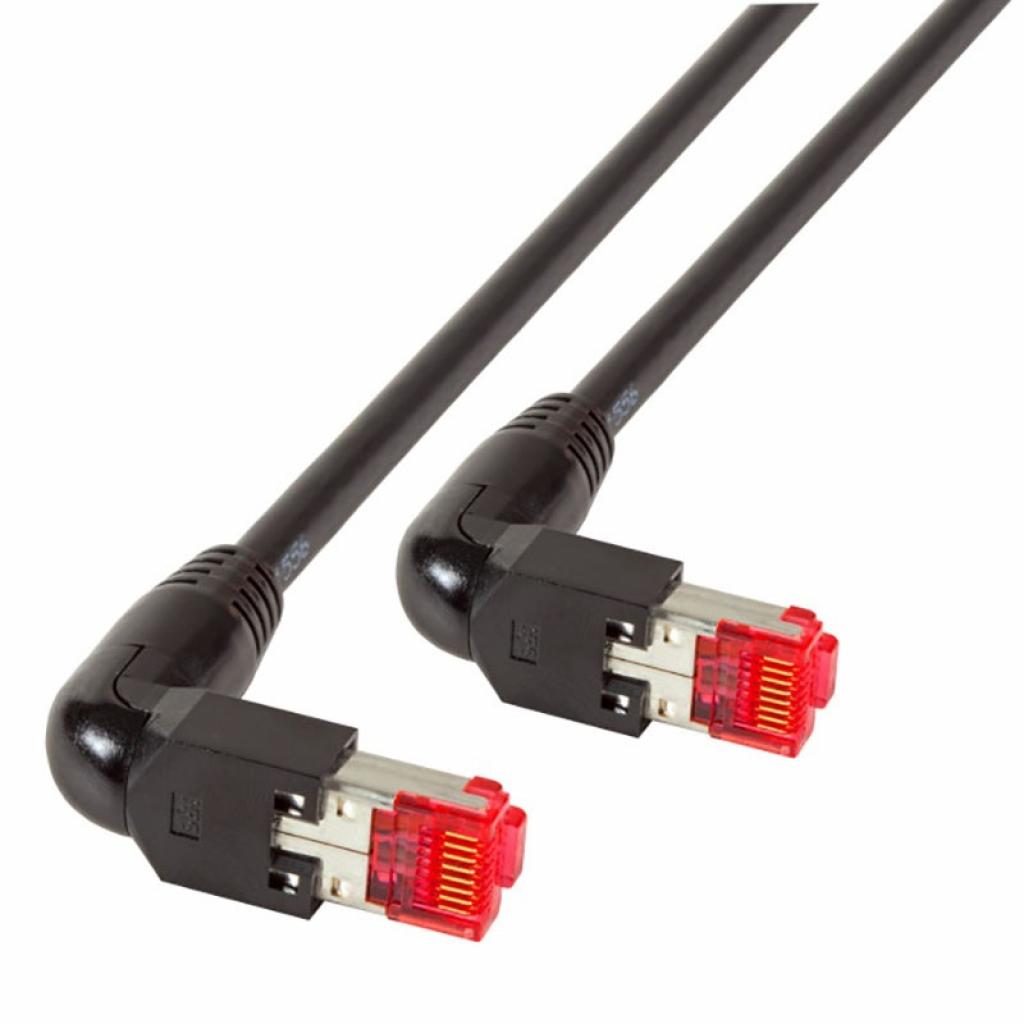

Медна пач корда Пач корда с ъглови конектори RJ45, S/FTP, кат. 6а, черна

Пач корда с ъглови конектори RJ45, S/FTP, кат. 6а, черна

The Cat.6A RJ45 patch cable manufactured in Europe guarantees very good characteristics for 10 Gigabit Ethernet applications.

The patch cable is composed of the Cat.7 raw cable UC900 SS27 from Draka and TM21 connectors from Hirose.

Due to the 90° angled grommet, the patch cable is well suited for limited space conditions.

• Cross section 4 x 2 x AWG27/7
• Mounted bend protection grommet 90° angled

• Category: 6A (TIA)
• Type of connector connection 1: RJ45 8(8)
• Type of connector connection 2: RJ45 8(8)
• Connector type: TM21 red
• Cable type: Draka UC900 SS27
• Contacts: Gold plated
• Pin assignment: 1:1
• Allocation: acc. TIA/EIA 568B
• Type: Shielded
• Anti-kink sleeve: Put-on
• Color anti-kink sleeve: Black
• Locking lever: Yes
• Mating cycles: ≥750
• Bending radius: >25 mm
• Conductive shield: 360° shield contact
• Raw cable: Cat.7
• Cable structure: S/FTP
• Total screening: ca. 45 %
• Cable construction: 4x2
• AWG-size/strands per core: 27/7
• Conductor Material: Copper
• Jacket material: LSZH
• Color outer sheath: Black
• Outer diameter of the cable: 5.9 mm
• Euro class: Eca
• Flame-retardant: acc. IEC60332-1
• Halogen-free: acc. IEC60754-2
• Low smoke: acc. IEC61034
• Temperature Range (Operation): -20 – 60 °C
• Temperature Range (Installation): 0 – 50 °C
• NVP value: 79 %
• Impedance: 100 ±25 Ω
• Conductor resistance DC: 170 Ω/km
• Loop resistance: < 340 Ω/km
• Resistance unbalance: < 3 %
• Insulation resistance: > 2000 MΩ
• Test voltage: 1000 (V DC, 1min) core/core und core/screen
• POE class: PoE acc. to IEEE802.3af;PoE+ acc. to IEEE802.3at;4PPoE acc. to IEEE802.3bt
• Bandwidth: 500MHz
• Transmission: 10Gbit
• Connector: IEC 60603-7-51
• Harmonized Standard: EN 50575
