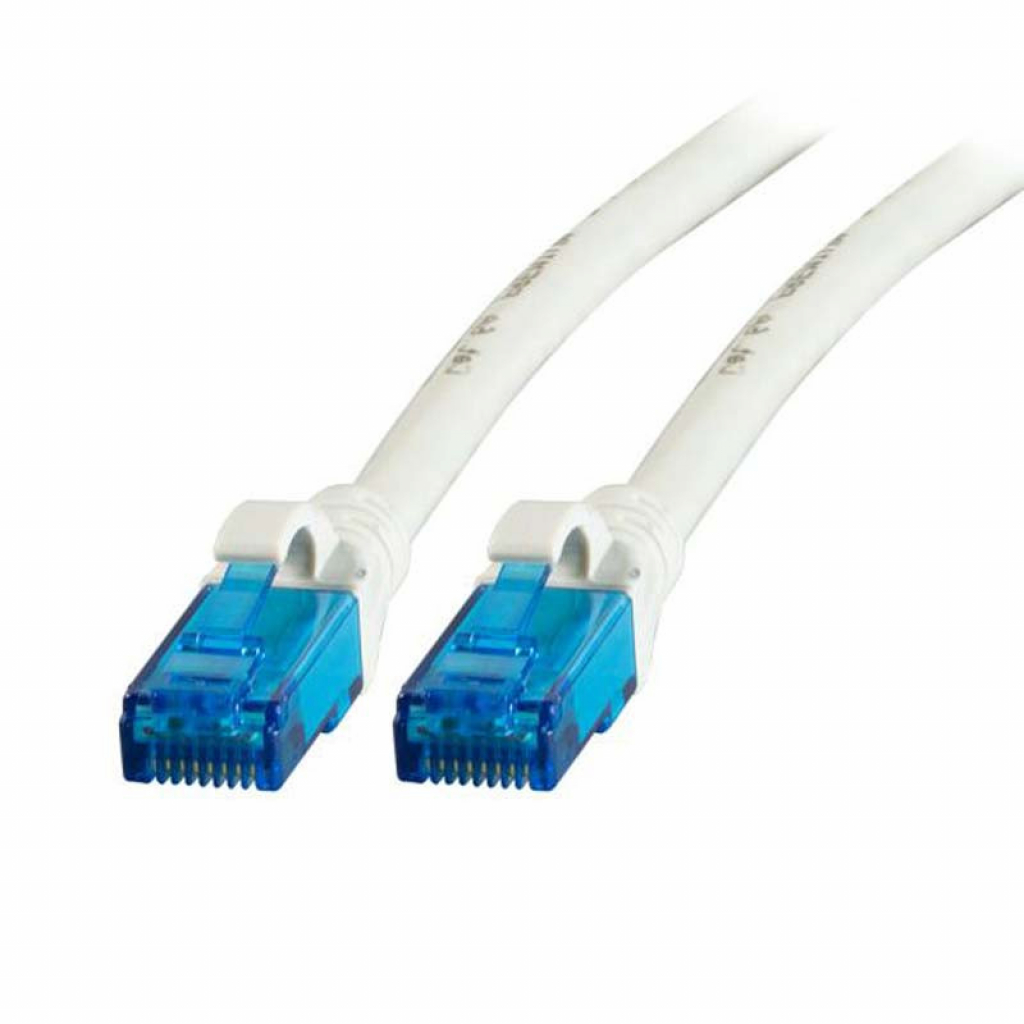

Медна пач корда U-UTP кат. 6A LSZH, 500MHZ, бял, 10м, K8109WS.10

U-UTP кат. 6A LSZH, 500MHZ, бял, 10м, K8109WS.10

The unshielded cat. 6A RJ45 premium patch cable ensures very good characteristics for 10 Gigabit Ethernet applications. The moulded grommet captivates with its slim design and thus simplifies the insertion process in cramped conditions.

• Cross section 4 x 2 x AWG24/7
• Cast anti-kink grommet with length imprint, slim design

• AWG-size: 24/7
• Allocation: acc. TIA/EIA 568B
• Anti-kink sleeve: plugged in
• Area of Application: Structured cabling; Data center
• Bandwidth: 500MHz
• Bending radius: 30 mm
• Cable construction: 4x2
• Cable type: U/UTP
• Cabling standard: ISO/IEC 11801;EN50173
• Category: 6A (TIA)
• Colour anti-kink sleeve: white
• Colour outer sheath: white
• Conductor Material: Copper
• Connector: IEC 60603-7-41
• Connector type: RJ45 Standard blue
• Contacts: 50 µ" gold plated
• Current Rating: max. 1 A
• Fire retardant version: Yes
• Flame retardant: acc. IEC60332-1
• Halogen-free: Yes
• Halogen free: Yes
• Locking lever: Yes
• Low smoke: Yes
• Material outer sheath: LSZH
• Mating cycles: 2000
• Model: Unshielded
• NVP value: - %
• Oil resistant (acc. EN 60811-2-1): No
• Oil resistant (according to EN 60811-404): Yes
• Operating-/ tempering voltage: max. 50 V DC
• Outer diameter of the cable: 6.0 mm
• POE class: PoE acc. to IEEE802.3af; PoE+ acc. to IEEE802.3at; 4PPoE acc. to IEEE802.3bt
• Pin assignment: 1:1
• Printing: Cat. 6A PREMIUM Patch cord U/UTP 4x2xAWG24/7 ISO/IEC11801 TIA/EIA-568-C.2 ***10Gigabit Ethernet***
• Suitable for degree of protection (IP): IP20
• Temperature range: 0 – 60 °C
• Transmission: 10Gbit
• Type of connector connection 1: RJ45 8(8)
• Type of connector connection 2: RJ45 8(8)
