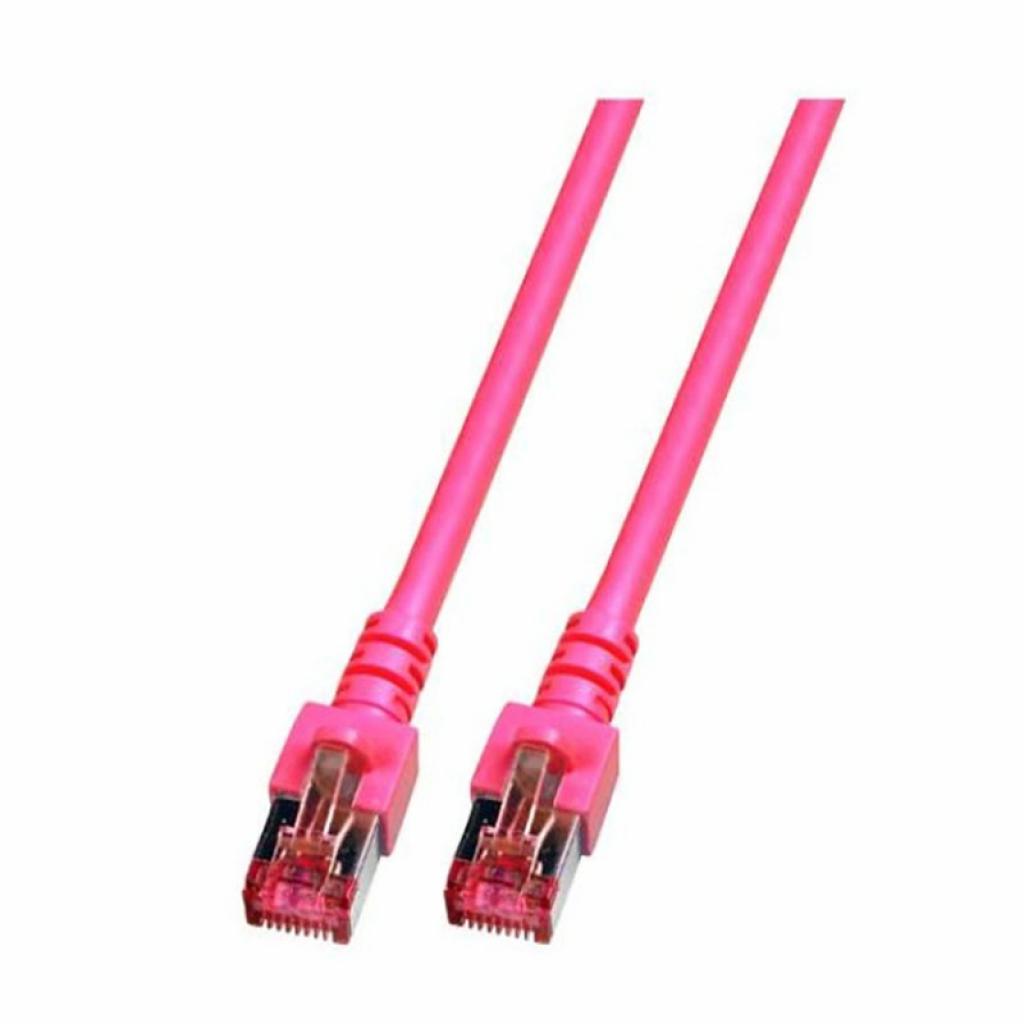

RJ45 Patch cable S/FTP, Cat.6, LSZH, magenta

The shielded Cat.6 RJ45 patch cable with ensures excellent performance for 5 Gigabit Ethernet applications.

• Cross section 4 x 2 x AWG27/7
• Moulded grommet (patented)
• Length imprint on the boot

• Category: 6
• Type of connector connection 1: RJ45 8(8)
• Type of connector connection 2: RJ45 8(8)
• Connector type: RJ45 Standard
• Contacts: Gold plated
• Pin assignment: 1:1
• Allocation: acc. TIA/EIA 568B
• Type: Shielded
• Length imprint: Yes
• Anti-kink sleeve: Moulded
• Color anti-kink sleeve: Purple/violet
• Locking lever: Yes
• Mating cycles: ≥750
• Bending radius: >31 mm
• Conductive shield: Selected shield contact
• Cable structure: S/FTP
• Cable construction: 4x2
• AWG-size/strands per core: 27/7
• Conductor Material: Copper
• Silicone-free: Yes
• Jacket material: LSZH
• Color outer sheath: Magenta
• Outer diameter of the cable: 6.2 mm
• Flame-retardant: acc. IEC60332-1
• Halogen-free: Yes
• Low smoke: Yes
• Temperature range: 0 – 60 °C
• NVP value: - %
• Conductor resistance DC: 185 Ω/km
• Loop resistance: 370 Ω/km
• Resistance unbalance: 5 %
• Insulation resistance: 10 MΩ
• Contact resistance: 30 mΩ
• POE class: PoE acc. to IEEE802.3af;PoE+ acc. to IEEE802.3at;4PPoE acc. to IEEE802.3bt
• Bandwidth: 250MHz
• Connector: IEC 60603-7-5
