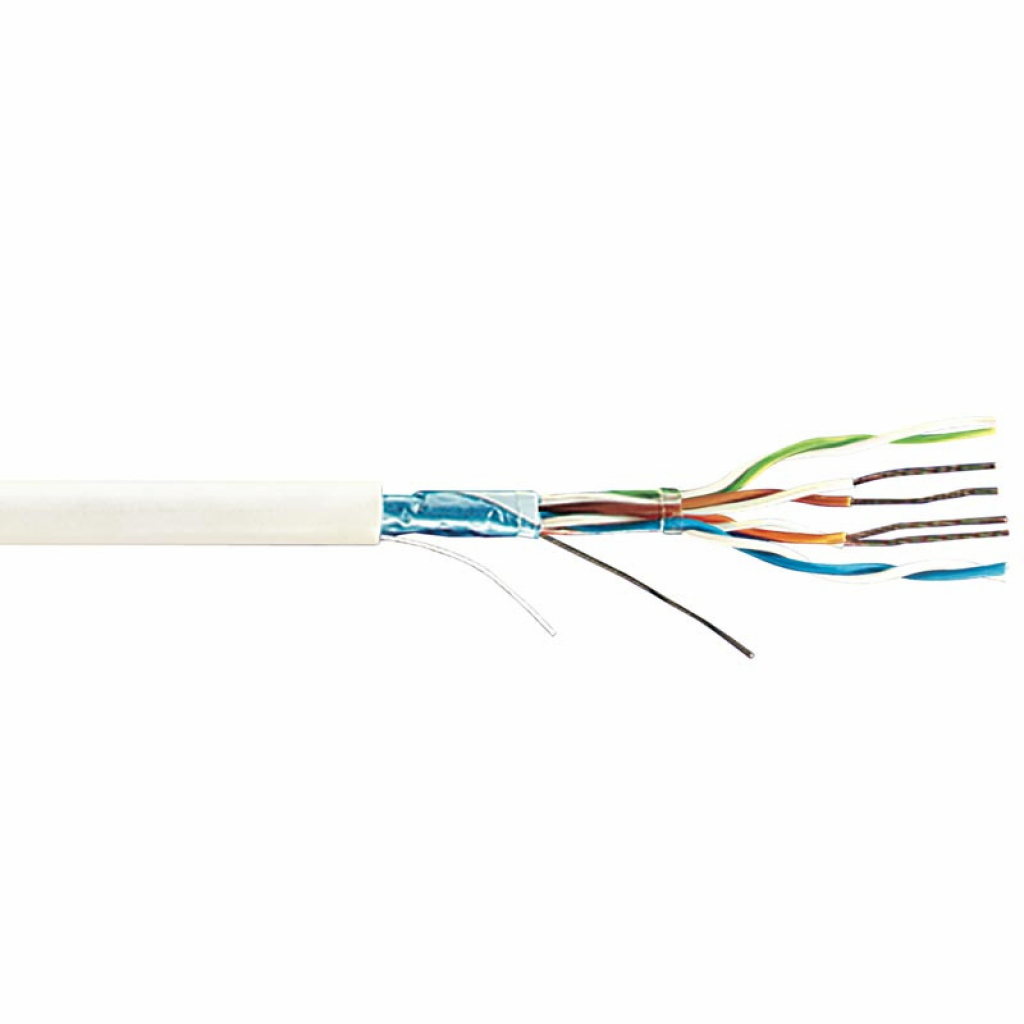

Инсталационен меден кабел Меден кабел, кат. 5Е, 4 чифта FTP SOLID 24 AWG, макара 305 м

Меден кабел, кат. 5Е, 4 чифта FTP SOLID 24 AWG, макара 305 м

Меден кабел, категория 5E, F/UTP екраниран, SOLID, 4 чифта, AWG24, PVC покритие, бял цвят, макара 305 м.

Product Classification

• Regional Availability: EMEA
• Portfolio: NETCONNECT®
• Product Type: Twisted pair cable

General Specifications

• ANSI/TIA Category: 5e
• Cable Component Type: Horizontal
• Cable Type: F/UTP (shielded)
• Conductor Type, singles: Solid
• Conductors, quantity: 8
• Jacket Color: White
• Pairs, quantity: 4
• Transmission Standards: ANSI/TIA-568.2-D | CENELEC EN 50288-3-1 | ISO/IEC 11801 Class D

Dimensions

• Cable Length: 304.8 m
• Diameter Over Jacket, nominal: 6.096 mm
• Conductor Gauge, singles: 24 AWG

Electrical Specifications

• Operating Voltage, maximum: 80 V
• Remote Powering: Fully complies with the recommendations set forth by IEEE 802.3bt (Type 4) for the safe delivery of power over LAN cable when installed according to ISO/IEC 14763-2, CENELEC EN 50174-1, CENELEC EN 50174-2 or TIA TSB-184-A

Material Specifications

• Conductor Material: Bare copper
• Insulation Material: Polyolefin
• Jacket Material: PVC
• Shield (Tape) Material: Aluminum/Polyester

Environmental Specifications

• Operating Temperature: -40 °C to +75 °C (-40 °F to +167 °F)
• EN50575 CPR Cable EuroClass Fire Performance: Eca

Packaging and Weights

• Packaging Type: Reel

Regulatory Compliance/Certifications

• CENELEC: EN 50575 compliant, Declaration of Performance (DoP) available
