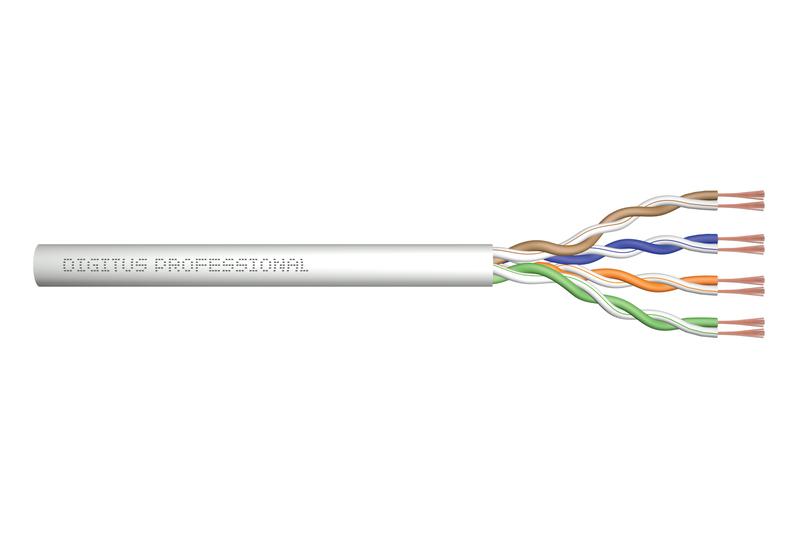

Инсталационен LAN кабел ASSMANN DK-1511-P-1-1: DIGITUS CAT 5e U-UTP, усукана двойка, 100m

ASSMANN DK-1511-P-1-1: DIGITUS CAT 5e U-UTP, усукана двойка, 100m

CAT 5e U-UTP кабел за структурно окабеляване, 100 м., AWG 26/7, неекраниран

Отговаря на нормите ANSI/TIA 568-C; ISO/IEC 11801 2nd Ed.; EN 50173; EN 50288-3-1, меден проводник, подходящ за PoE

• Insulation: HD-PE
• Outer sheath diameter: 0.55 mm nominal
• Overall diameter: 4.6 mm nominal
• Tensile loading: 150 N max.
• Dynamic bending radius: 8x AD mm min.
• Static bending radius: 4x AD mm min.
• Shipping- and storage temperature range: -10 °C up to +75 °C
• Operating temperature range: -10 °C up to +60 °C
• Installation temperature range: 0 °C up to +50 °C
• DC loop resistance: ≤ 280 Ω km
• Resistance unbalance ≤ 2%
• Insulation resistance: ≥ 2000MΩ/km @500V
• Capacitance: nom. 48 nF/km @ 800 Hz
• Capacitance unbalance (pair-ground): ≤ 1500 nF/km
• Characeristic Impedance: 100 ± 15 Ohm @ 10-100 MHz
• NVP: 67%
• Propagation delay: nom. ≤ 555 ns/100 m
• Delay skew: nom. ≤ 50 ns/ 100 m
• Test voltage (DC 1 min) core/core: 1000V
• Coupling attenuation: ≥ 40 dB
• Capacitance: 48 pF/m nominal @ 800 Hz
• Capacitance unbalance (pair-ground): 1.5 pF/m max. @ 1 KHz
• Insulation resistance: 2 GOhm x km min.
• DC loop resistance: 147 Ohm/Km max. (2% max. resistance unbalance)
• Voltage resistance: 72 Vdc max.
• Coupling attenuation: 40 dB
• Signal propagation delay: 450 nS/100 m max.
• Propagation delay: 20 nS/100 m max.
• Assortment: Twisted Pair Patch Cables
• Length: 100 m
• Category: CAT 5e
• Color: grey
• Jacket: PVC
• Shielding: U-UTP, unshielded
• Structure: 4 x 2 AWG 26/7, twisted pair

EAN: 4016032425892
Тегло: 3.000 кг
