Дънна платка GIGABYTE Z690M DS3H DDR4 Intel Z690 Motherboard with 6+2+1 Hybrid Phasesна ниска цена с бърза доставка

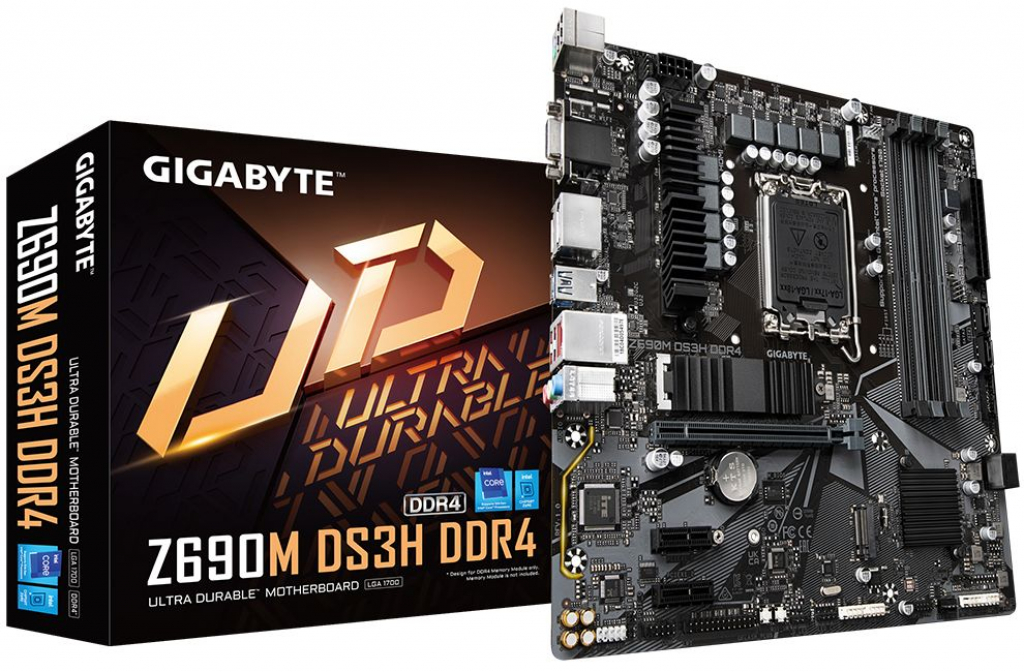

Дънна платка GIGABYTE Z690M DS3H DDR4 Intel Z690 Motherboard with 6+2+1 Hybrid Phases

Продукт № 319301
КРАТКО ОПИСАНИЕ #319301
Категория: Дънни платки
Производител:
Модел:
GA-MB-Z690M-DS3H
Чипсет:Intel Z690
Брой RAM слотове:4 бр.
Процесорен слот:LGA1700
Поддържана памет:DDR4
Гаранция:
36 месеца
Наличност:ДА
На склад в: София

338.90 ЛВ
product-basketВ кошницатa:
0
 бр.

GIGABYTE Z690M DS3H DDR4 Intel Z690 Motherboard with 6+2+1 Hybrid Phases


Графика:
  • Integrated Graphics Processor-Intel® HD Graphics support: 1 x D-Sub port
  • supporting a maximum resolution of 1920x1200@60 Hz; 1 x HDMI port
  • supporting a maximum resolution of 4096x2160@60 Hz; * Support for HDMI 2.1 version and HDCP 2.3.; ** Support native HDMI 2.1 TMDS compatible ports.; 1 x DisplayPort
  • supporting a maximum resolution of 4096x2304@60 Hz; * Support for DisplayPort 1.2 version and HDCP 2.3; 1 x DisplayPort
  • supporting a maximum resolution of 4096x2304@60 Hz; * Support for DisplayPort 1.2 version.; (Graphics specifications may vary depending on CPU support.); Support for up to 4 displays at the same time
CPU's supported:
  • LGA1700 socket: Support for 12th Generation Intel® Core™
  • Pentium® Gold and Celeron® Processors*;L3 cache varies with CPU
Chipset:Intel® Z690 Express Chipset
Слотове:
  • 1 x PCI Express x16 slot
  • running at x16; (The PCIEX16 slot conforms to PCI Express 4.0 standard.); 2 x PCI Express x1 slots; (The PCIEX1 slots conform to PCI Express 3.0 standard.)
Storage:
  • CPU: 1 x M.2 connector (Socket 3
  • M key
  • type 2260/2280 PCIe 4.0 x4/x2 SSD support) (M2A_CPU); Chipset: 1 x M.2 connector (Socket 3
  • M key
  • type 2260/2280 PCIe 4.0 x4/x2 SSD support) (M2P_SB); 4 x SATA 6Gb/s connectors; Support for RAID 0
  • RAID 1
  • RAID 5
  • and RAID 10; Intel® Optane™ Memory Ready
Тип памет:Support for DDR4 5333(O.C.)/ DDR4 5133(O.C.)/DDR4 5000(O.C.)/4933(O.C.)/4800(O.C.)/ 4700(O.C.)/ 4600(O.C.)/ 4500(O.C.)/ 4400(O.C.)/ 4300(O.C.)/4266(O.C.) / 4133(O.C.) / 4000(O.C.) / 3866(O.C.) / 3800(O.C.) / 3733(O.C.) / 3666(O.C.) / 3600(O.C.) / 3466(O.C.) / 3400(O.C.) / 3333(O.C.) / 3300(O.C.) / 3200 / 3000 / 2933 / 2800 / 2666 / 2400 / 2133 MHz memory modules; 4 x DDR DIMM sockets supporting up to 128 GB (32 GB single DIMM capacity) of system memory; Dual channel memory architecture; Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode); Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules; Support for Extreme Memory Profile (XMP) memory modules
I/O:
  • 2 x USB 2.0/1.1 ports; 1 x PS/2 keyboard/mouse port; 1 x D-Sub port; 1 x HDMI 2.0 port; 2 x DisplayPorts; 3 x USB 3.2 Gen 1 ports; 1 x USB Type-C® port
  • with USB 3.2 Gen 2 support; 1 x RJ-45 port; 3 x audio jacks
Connectors:1 x 24-pin ATX main power connector; 1 x 8-pin ATX 12V power connector; 1 x CPU fan header; 3 x system fan headers; 1 x addressable LED strip header; 1 x RGB LED strip header; 2 x M.2 Socket 3 connectors; 4 x SATA 6Gb/s connectors; 1 x front panel header; 1 x front panel audio header; 1 x USB 3.2 Gen 1 header; 2 x USB 2.0/1.1 headers; 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only); 1 x serial port header; 1 x parallel port header; 1 x S/PDIF Out header; 1 x Q-Flash Plus button; 1 x reset button; 1 x reset jumper; 1 x Clear CMOS jumper
Audio:Realtek® Audio CODEC; High Definition Audio; 2/4/5.1/7.1-channel
LAN:Realtek® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)
BIOS:
  • 1 x 256 Mbit flash; Use of licensed AMI UEFI BIOS; PnP 1.0a
  • DMI 2.7
  • WfM 2.0
  • SM BIOS 2.7
  • ACPI 5.0
Form Factor:Micro ATX Form Factor; 24.4cm x 24.4cm
Операционна система:Support for Windows 10 64-bit
Гаранция:36 Месеца
