| Категория: | Дънни платки |
| Производител: | |
| Модел: | Z390 AORUS MASTER |
| Чипсет: | Intel Z390 |
| Брой RAM слотове: | 4 бр. |
| Поддържана памет: | DDR4 |
| Процесорен слот: | LGA1151 |
| Гаранция: | 36 месеца |
Наличност:Очаквана доставка. На път!
Продуктът не е на склад!
619.00 ЛВ
Продуктът не е на склад!
619.00 ЛВ
ОБАДЕТЕ СЕ ЗА НАЛИЧНОСТ

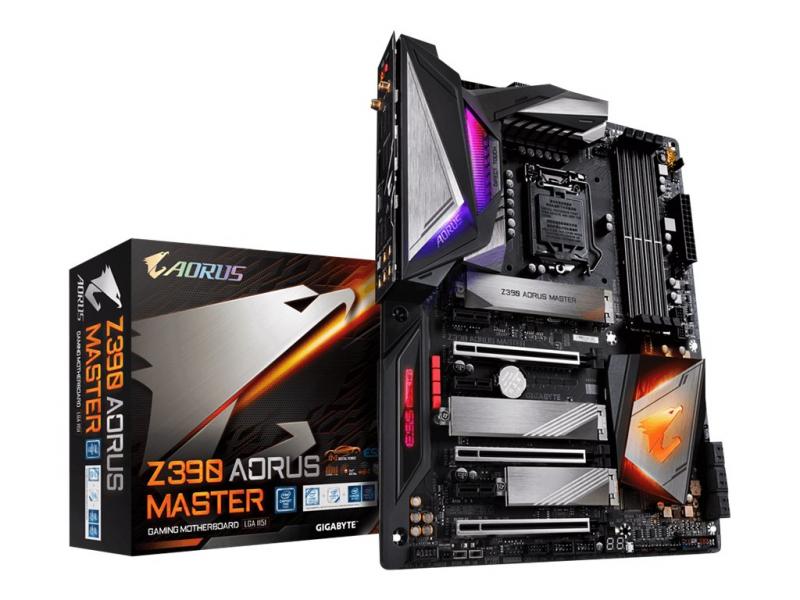

GIGABYTE Z390 AORUS MASTER Дънна платка
| Име на продукта: | MB GIGABYTE Z390 AORUS MASTER, 4xDDR4 2666, PCI-E 3.0 x16, HDMI, USB-C |
| Описание: | Gigabyte Z390 AORUS MASTER - 1.0 - motherboard - ATX - LGA1151 Socket - Z390 - USB 3.1 Gen 1, USB-C Gen2, USB 3.1 Gen 2 - Gigabit LAN, Wi-Fi, Bluetooth - onboard graphics (CPU required) - HD Audio (8-channel) |
| EAN: | 4719331804305 |
| Гаранция на производител: | 36 Months warranty |
| General | |
| Product Type: | Motherboard - ATX |
| Chipset Type: | Intel Z390 |
| Processor Socket: | LGA1151 Socket |
| Max Processors Qty: | 1 |
| Compatible Processors: | Pentium, Celeron, Core i5, Core i3, Core i7, Core i9 (supports 9th and 8th Generation Intel Core / Pentium Gold / Celeron) |
| Supported RAM | |
| Max Size: | 128 GB |
| Technology: | DDR4 |
| Bus Clock: | 2400 MHz, 2133 MHz, 2666 MHz, 2800 MHz (O.C.), 3000 MHz (O.C.), 3200 MHz (O.C.), 3300 MHz (O.C.), 3400 MHz (O.C.), 3333 MHz (O.C.), 3466 MHz (O.C.), 3733 MHz (O.C.), 3600 MHz (O.C.), 3800 MHz (O.C.), 3666 MHz (O.C.), 3866 MHz (O.C.), 4000 MHz (O.C.), 4133 MHz (O.C.), 4400 MHz (O.C.), 4266 MHz (O.C.), 4333 MHz (O.C.) |
| Supported RAM Integrity Check: | Non-ECC, ECC (operate in non-ECC mode) |
| Registered or Buffered: | Unbuffered |
| Features: | Dual channel memory architecture, Intel Extreme Memory Profiles (XMP), supported ECC modules operate in non-ECC mode |
| Graphics | |
| Max Allocated RAM Size: | 1 GB |
| Audio | |
| Type: | HD Audio (8-channel) |
| Audio Codec: | Realtek ALC1220-VB |
| Compliant Standards: | High Definition Audio |
| LAN | |
| Network Interfaces: | Gigabit Ethernet, 802.11a/b/g/n/ac Wave 2, Bluetooth 5.0 |
| Expansion / Connectivity | |
| Expansion Slots: | 1 x CPU 4 x DIMM 288-pin 1 x PCIe 3.0 x16 (x16 mode (x8 mode if neighbour x16 slot is occupied)) 1 x PCIe 3.0 x16 (x8 mode) 1 x PCIe 3.0 x16 (x4 mode (x2 mode if M.2 is occupied)) 3 x PCIe 3.0 x1 1 x M.2 socket (for Intel CNVi wireless module) |
| Storage Interfaces: | SATA-600 -connectors: 6 x 7pin Serial ATA - RAID 0 / RAID 1 / RAID 10 / RAID 5 SATA-600 / PCIe -connectors: 2 x M.2 PCIe -connectors: 1 x M.2 |
| Interfaces: | 1 x HDMI 1 x LAN (Gigabit Ethernet) 1 x TOSLINK 1 x audio line-in - mini-jack 1 x audio line-out - mini-jack 1 x microphone - mini-jack 1 x audio line-out (center/subwoofer) - mini-jack 1 x audio line-out (rear) - mini-jack 2 x USB 3.1 Gen 1 3 x USB 3.1 Gen 2 1 x USB-C Gen2 4 x USB 2.0 |
| Internal Interfaces: | 4 x USB 2.0 - header 2 x USB 3.1 Gen 1 - header 1 x SPDIF out - header 1 x audio - header 1 x USB-C Gen2 - header |
| Power Connectors: | 24-pin main power connector, 2 x 8-pin ATX12V connectors |
| Features | |
| BIOS Type: | AMI |
| BIOS Features: | WfM 2.0 support, UEFI BIOS, SMBIOS 2.7 support, DMI 2.7 support, ACPI 5.0 support, Dual BIOS |
| Hardware Monitoring: | CPU core temperature, chassis temperature, CPU fan tachometer, chassis fan tachometer, system voltage, CPU overheating protection, water cooling flow rate |
| Hardware Features: | 12 Phase Power Design, AutoGreen, NVIDIA Quad SLI Technology Support, NVIDIA 2-way SLI Technology Support, On/Off Charge, AMD CrossFireX technology support, AMD Quad CrossFireX technology support, AMD 3-way CrossFireX technology support, Easy RAID Installer, Ultra Durable Memory Armor, GIGABYTE USB DAC-UP 2, Intel Optane Memory Ready, RGB FUSION, Ultra Durable PCIe Armor, M.2 Thermal Guard, pre-mounted I/O shield, CEC 2019 Ready, Fins-Array Heatsink & Direct Touch Heatpipe, Solid Pin Power Connectors, ESS 9118 SABRE HiFi DAC, GIGABYTE USB TurboCharger |
| Miscellaneous | |
| Software Included: | Norton Internet Security, @BIOS, EasyTune, Cloud Station, Xpress Install, GIGABYTE USB Blocker, GIGABYTE App Center, cFosSpeed, Smart TimeLock, GIGABYTE Fast Boot, GIGABYTE V-Tuner, GIGABYTE Smart Keyboard, GIGABYTE Smart Backup, GIGABYTE Smart Fan 5, GIGABYTE 3D OSD, XSplit Gamecaster (1 year licence), XSplit Broadcaster (1 year licence), GIGABYTE Smart Survey |
| Compliant Standards: | Plug and Play |
| Width: | 30.5 cm |
| Depth: | 24.4 cm |
| Гаранция: | 3 години |
