supporting a maximum resolution of 3840x2160@144 Hz; * Support for DisplayPort 1.4 version and HDR.; 1 x HDMI port
supporting a maximum resolution of 4096x2160@60 Hz; * Support for HDMI 2.1 version and HDCP 2.3.; ** Support native HDMI 2.1 TMDS compatible ports.
CPU's supported:
AMD Socket AM5
support for: AMD Ryzen™ 7000 Series Processors
Chipset:
AMD B650
Слотове:
CPU: 1 x PCI Express x16 slot
supporting PCIe 4.0 and running at x16 (PCIEX16); * For optimum performance
if only one PCI Express graphics card is to be installed
be sure to install it in the PCIEX16 slot.; Chipset: 2 x PCI Express x16 slots
supporting PCIe 3.0 and running at x1 (PCIEX1_1/2)
Storage:
CPU: 1 x M.2 connector (Socket 3
M key
type 25110/2280 PCIe 5.0* x4/x2 SSD support) (M2A_CPU); * Actual support may vary by CPU.; 1 x M.2 connector (Socket 3
M key
type 25110/2280 PCIe 4.0 x4/x2 SSD support) (M2B_CPU); Chipset: 1 x M.2 connector (Socket 3
M key
type 25110/2280 PCIe 4.0 x4/x2 SSD support) (M2C_SB); 4 x SATA 6Gb/s connectors; RAID 0
RAID 1
and RAID 10 support for NVMe SSD storage devices; RAID 0
RAID 1
and RAID 10 support for SATA storage devices
Тип памет:
Support for DDR5 6666(OC) / 6600(OC) / 6400(OC) / 6200(OC) / 6000(OC) / 5600(OC) / 5200 / 4800 / 4400 MT/s memory modules; 4 x DDR5 DIMM sockets supporting up to 128 GB (32 GB single DIMM capacity) of system memory; Dual channel memory architecture; Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules; Support for AMD EXtended Profiles for Overclocking (AMD EXPO™) and Extreme Memory Profile (XMP) memory module

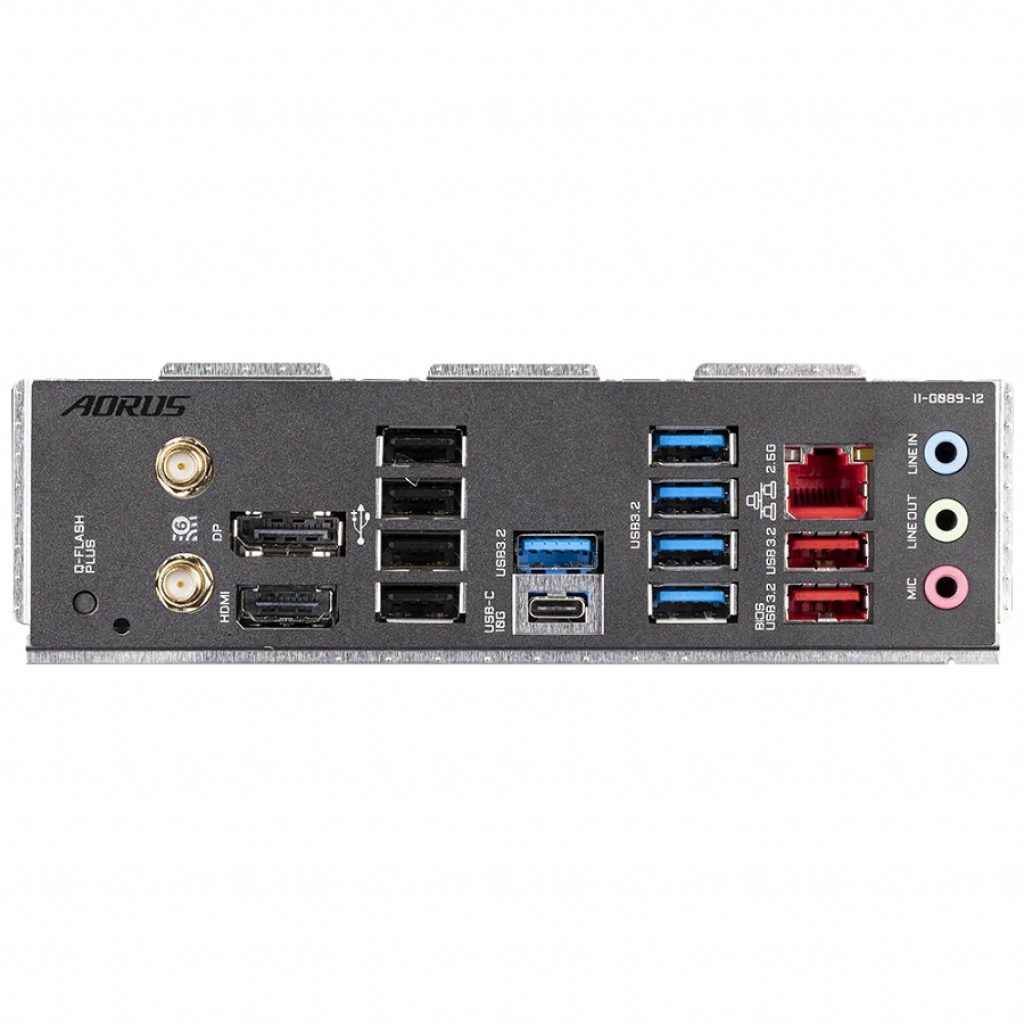

I/O:
1 x Q-Flash Plus button; 2 x SMA antenna connectors (2T2R); 1 x DisplayPort; 1 x HDMI port; 1 x USB Type-C® port
with USB 3.2 Gen 2 support; 2 x USB 3.2 Gen 2 Type-A ports (red); 5 x USB 3.2 Gen 1 ports; 4 x USB 2.0/1.1 ports; 1 x RJ-45 port; 3 x audio jacks
Connectors:
1 x 24-pin ATX main power connector; 1 x 8-pin ATX 12V power connector; 1 x 4-pin ATX 12V power connector; 1 x CPU fan header; 1 x water cooling CPU fan header; 3 x system fan headers; 1 x system fan/water cooling pump header; 2 x addressable LED strip headers; 2 x RGB LED strip headers; 1 x CPU cooler LED strip/RGB LED strip header; 3 x M.2 Socket 3 connectors; 4 x SATA 6Gb/s connectors; 1 x front panel header; 1 x front panel audio header; 1 x USB Type-C® header
with USB 3.2 Gen 2x2 support; 1 x USB 3.2 Gen 1 header; 2 x USB 2.0/1.1 headers; 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only); 1 x reset button; 1 x reset jumper; 1 x Clear CMOS jumper
Audio:
Realtek® Audio CODEC; High Definition Audio; 2/4/5.1/7.1-channel
LAN:
Realtek® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)
BIOS:
1 x 256 Mbit flash; Use of licensed AMI UEFI BIOS; PnP 1.0a
DMI 2.7
WfM 2.0
SM BIOS 2.7
ACPI 5.0
Form Factor:
ATX Form Factor; 30.5cm x 24.4cm
Операционна система:
Support for Windows 11 64-bit; Support for Windows 10 64-bit
Други:
AMD Wi-Fi 6E RZ616 (MT7922A22M) (For PCB rev. 1.0); WIFI a
b
g
n
ac
ax
supporting 2.4/5/6 GHz carrier frequency bands; BLUETOOTH 5.2; Support for 11ax 160MHz wireless standard and up to 2.4 Gbps data rate; Intel® Wi-Fi 6E AX210 (For PCB rev. 1.1); WIFI a
b
g
n
ac
ax
supporting 2.4/5/6 GHz carrier frequency bands; BLUETOOTH 5.3; Support for 11ax 160MHz wireless standard and up to 2.4 Gbps d
