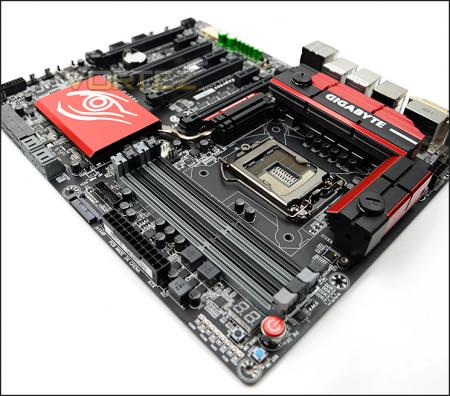

GB Z97X-GAMING G1 -1150

Производител:	GIGABYTE
Производител No.:	-
Модел:	Z97X-GAMING G1
Socket:	LGA1150
Графика:	Integrated Graphics Processor - Intel® HD Graphics support: 1 x DVI-I port supporting a maximum resolution of 1920x1200@60Hz 1 x HDMI port supporting a maximum resolution of 4096x2160@24Hz or 2560x1600@60Hz * Support for HDMI 1.4a version. 1 x DisplayPort supporting a maximum resolution of 4096x2160@24Hz or 3840x2160@60Hz * Support for DisplayPort 1.2 version. Support for up to 3 displays at the same time Maximum shared memory of 512MB
CPU's supported:	Support for Intel® Core™ i7 processors/Intel® Core™ i5 processors/ Intel® Core™ i3 processors/Intel® Pentium® processors/ Intel®Celeron® processors in the LGA1150 package; L3 cache varies with CPU
Chipset:	Intel® Z97 Express Chipset
Слотове:	2 x PCI Express x16 slots running at x16 (PCIEX16_1~2); 2 x PCI Express x16 slots running at x8 (PCIEX8_1~2); (All PCI Express x16 slots conform to PCI Express 3.0 standard.); 3 x PCI Express x1 slots (The PCI Express x1 slots conform to PCI Express 2.0 standard.).
Storage:	1 x SATA Express connector 6 x SATA 6Gb/s connectors (SATA3 0~5) Support for RAID 0 RAID 1 RAID 5 and RAID 10 (SATA Express and SATA3 4/5 connectors can only be used one at a time.) 2 x Marvell® 88SE9172 chips: 4 x SATA 6Gb/s connectors (GSATA3 6~9) Support for RAID 0 and RAID 1 * Due to system limitation Intel RAID and Marvell RAID can only use either one.
Тип памет:	4 x DDR3 DIMM sockets supporting up to 32 GB of system memory; Dual channel memory architecture Support for DDR3 3200(O.C.) / 3100(O.C.) / 3000(O.C.) / 2933(O.C.) / 2800(O.C.) / 2666(O.C.) / 2600(O.C.) / 2500(O.C.) / 2400(O.C.) / 2200(O.C.) / 2133(O.C.) / 2000(O.C.) / 1866(O.C.) / 1800(O.C.) / 1600 / 1333 MHz memory modules; Support for non-ECC memory modules; Support for Extreme Memory Profile (XMP) memory modules.
I/O:	1 x optical S/PDIF Out connector; 1 x DVI-I port; 1 x DisplayPort; 1 x HDMI port; 2 x USB 2.0/1.1 ports; 6 x USB 3.0/2.0 ports;1 x PS/2 keyboard/mouse port;2 x RJ-45 ports; 5 x audio jacks (Center/Subwoofer Speaker Out Rear Speaker Out Line In/Mic In Line Out Headphone).
Audio:	Creative® Sound Core 3D chip; TI Burr Brown® OPA2134 operational amplifier; Support for Sound Blaster Recon3Di; High Definition Audio; 2/5.1-channel; Support for S/PDIF Out.
LAN:	1 x Qualcomm® Atheros Killer E2201 chip (10/100/1000 Mbit) (LAN1); 1 x Intel® GbE LAN phy (10/100/1000 Mbit) (LAN2) * Teaming is not supported.
Други:	-
BIOS:	2 x 128 Mbit flash Use of licensed AMI UEFI BIOS Support for DualBIOS™ PnP 1.0a DMI 2.7 WfM 2.0 SM BIOS 2.7 ACPI 5.0
Form Factor:	ATX Form Factor; 30.5cm x 24.4cm
Операционна система:	-
Гаранция:	36 Месеца

Дънната платка GigaByte Z97X-GAMING G1 е създадена за работа с процесори на Intel - Core i7, i5 Core i3, Pentium and Celeron. Ако сте привърженик на тези процесори, това е идеалното начало за вашата конфигурация. Платката разполага с 4 DDR3 DIMM сокета, в които можете, да добавяте оперативна памет към конфигурацията. Освен това платката разполага с множество портове, за да се свързва с други устройства - PS/2 keyboard/mouse port, optical S/PDIF Out connector, DVI-I port, DisplayPort, HDMI port, 2 USB 2.0/1.1 порта, 6 USB 3.0/2.0 порта, 2 RJ-45 порта и 5 аудио жака. GigaByte Z97X-GAMING G1 разполага и с 2 PCI Express x16 слота и 3 PCI Express, така че допълнително, да може да подсилите машината си.
