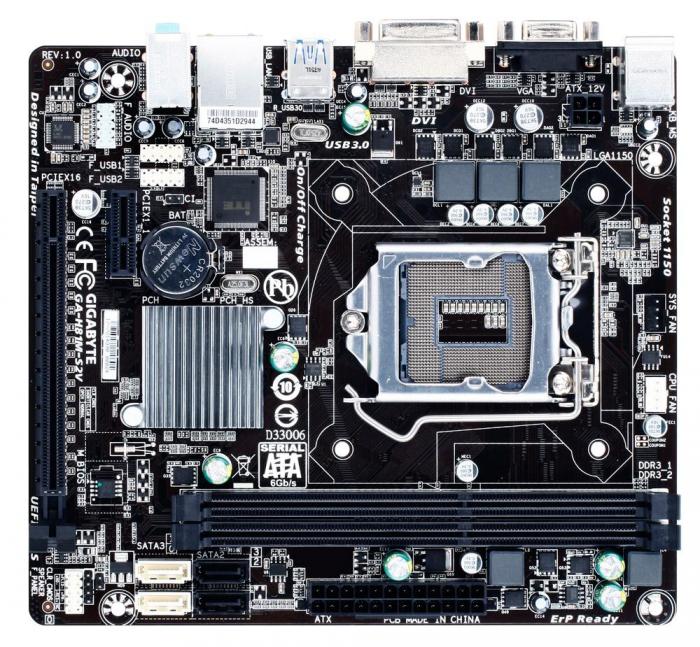

Дънна платка Дънна платка GIGABYTE GA-H81M-S2V, Socket 1150, Micro ATX, DDR3, rev 1.0

Дънна платка GIGABYTE GA-H81M-S2V, Socket 1150, Micro ATX, DDR3, rev 1.0

Модел: GA-H81M-S2V

Чипсет: Intel^® H81 Express Chipset

Видео:
1 x D-Sub port, supporting a maximum resolution of 1920x1200
1 x DVI-D port, supporting a maximum resolution of 1920x1200
* The DVI-D port does not support D-Sub connection by adapter.
Maximum shared memory of 1 GB

Аудио:
Realtek^® ALC887 codec
High Definition Audio
2/4/5.1/7.1-channel

LAN: Realtek 8111F chip (10/100/1000 Mbit)

Слотове:
1 x PCI Express x16 slot, running at x16
2 x PCI Express x1 slots

Интерфейс:
2 x SATA 6Gb/s connectors (SATA3 0/1)
2 x SATA 3Gb/s connectors (SATA2 2/3)

Конектори:
1 x 24-pin ATX main power connector
1 x 4-pin ATX 12V power connector
2 x SATA 6Gb/s connectors
2 x SATA 3Gb/s connectors
1 x CPU fan header
1 x system fan header
1 x front panel header
1 x front panel audio header
1 x speaker header
2 x USB 2.0/1.1 headers
1 x chassis intrusion header
1 x Clear CMOS jumper

Заден панел-В/И:
1 x PS/2 keyboard port
1 x PS/2 mouse port
1 x D-Sub port
1 x DVI-D port
2 x USB 3.0/2.0 ports
2 x USB 2.0/1.1 ports
1 x RJ-45 port
3 x audio jacks (Line In, Line Out, Mic In)

В/И Контролер: iTE^® I/O Controller Chip

Други:
Support for Q-Flash
Support for Xpress Install
Support for APP Center
* Available applications in APP Center may differ by motherboard model. Supported functions of each application may also differ depending on motherboard specifications.
@BIOS
EasyTune
EZ Setup
USB Blocker
Support for ON/OFF Charge
