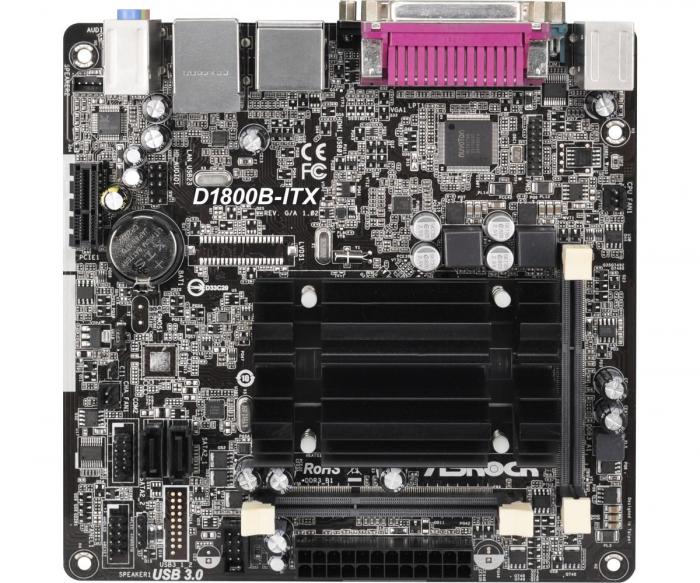

Дънна платка Дънна платка ASROCK D1800B ITX, Intel Dual-Core J1800, Mini ITX, DDR3

Дънна платка ASROCK D1800B ITX, Intel Dual-Core J1800, Mini ITX, DDR3

Модел: D1800B ITX

Чипсет: J1800

Аудио:
5.1 CH HD Audio (Realtek ALC662 Audio Codec)
Supports Surge Protection (ASRock Full Spike Protection)

LAN:
PCIE x1 Gigabit LAN 10/100/1000 Mb/s
Realtek RTL8111GR
Supports Wake-On-WAN
Supports Wake-On-LAN
Supports Lightning/ESD Protection (ASRock Full Spike Protection)
Supports LAN Cable Detection
Supports Energy Efficient Ethernet 802.3az
Supports PXE

Слотове: 1 x PCI Express 2.0 x1 Slot

Интерфейс: 2 x SATA2 3.0 Gb/s Connectors, support NCQ, AHCI and Hot Plug

Конектори:
1 x 3W Audio AMP Output Wafer Header
1 x COM Port Header
1 x TPM Header
1 x Chassis Intrusion Header
1 x CPU Fan Connector (3-pin)
1 x Chassis Fan Connector (3-pin)
1 x 24 pin ATX Power Connector
1 x Front Panel Audio Connector
1 x USB 2.0 Header (Supports 2 USB 2.0 ports) (Supports ESD Protection (ASRock Full Spike Protection))

Заден панел-В/И:
1 x PS/2 Mouse Port
1 x PS/2 Keyboard Port
1 x Parallel Port (ECP/EPP Support)
1 x Serial Port: COM1
1 x D-Sub Port
1 x HDMI Port
3 x USB 2.0 Ports (Supports ESD Protection (ASRock Full Spike Protection))
1 x USB 3.0 Port (Supports ESD Protection (ASRock Full Spike Protection))
1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED)
HD Audio Jacks: Line in / Front Speaker / Microphone

Други:
ASRock A-Tuning
ASRock USB Key
ASRock XFast LAN
ASRock XFast RAM
ASRock Restart to UEFI
ASRock Instant Flash
ASRock Internet Flash
ASRock Crashless BIOS
